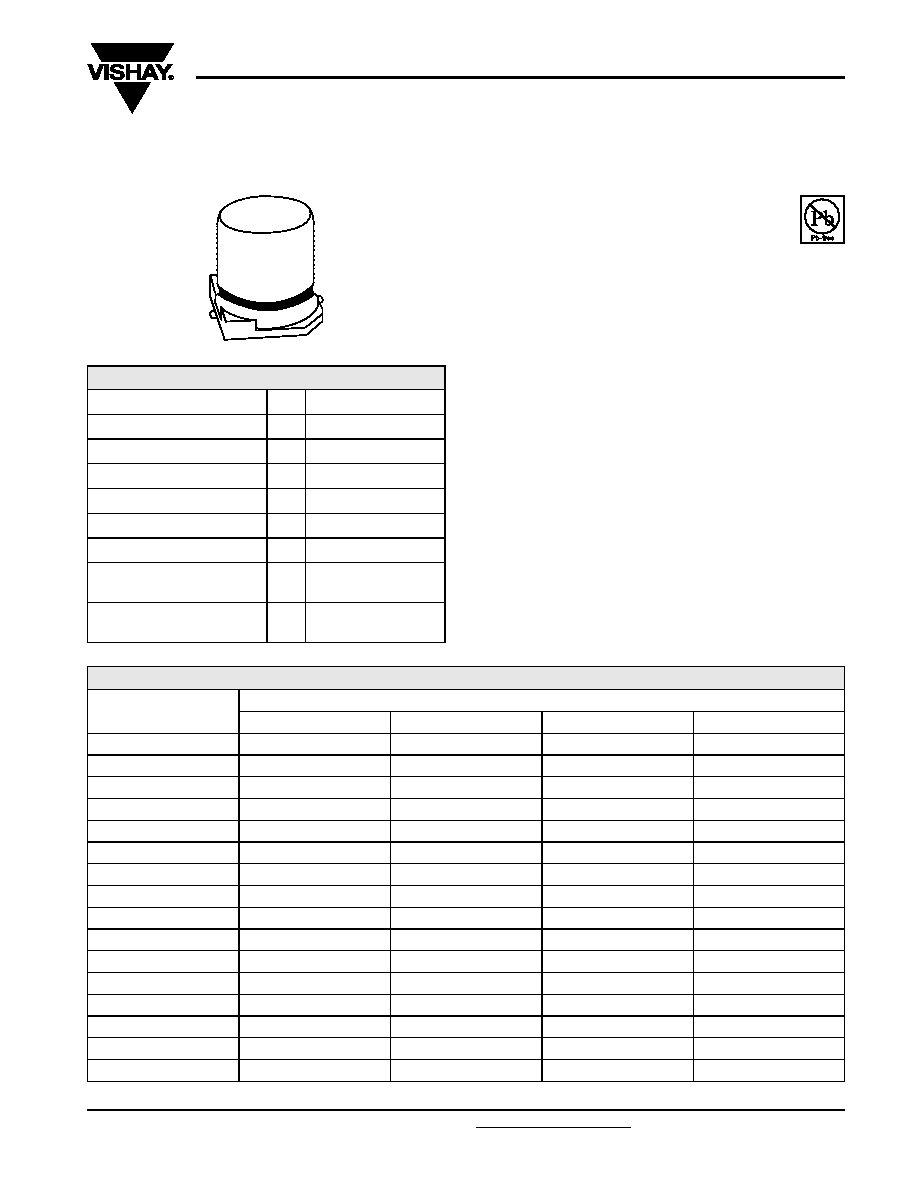

Document Number: 25143

For technical questions, contact: aluminumcaps1@vishay.com

www.vishay.com

Revision: 05-Jun-08

213

Aluminum Capacitors

ECB

Vishay Roederstein

FEATURES

• Polarized aluminum electrolytic capacitors

• SMD style

• Miniature dimension

• Extended temperature range: 105 °C

• Reflow soldering

• RoHS compliant

APPLICATIONS

• Industrial electronics, automotive electronics,

telecommunication systems

• Smoothing and filtering

• Miniature power supply units, dc-to-dc converters

PACKAGING

• Supplied in blister tape

QUICK REFERENCE DATA

DESCRIPTION

UNIT

VALUE

Nominal case size (Ø D x L )

mm

4 x 5.3 to 10 x 10

Rated capacitance range CR

µF

0.1 to 470

Capacitance tolerance

%

± 20

Rated voltage range

V

16 to 50

Category temperature range

°C

- 40 to + 105

Load life

h

1000

Based on sectional

specification

IEC 60384-4/EN 130300

Climatic category

IEC 60068

40/105/56

RoHS

COMPLIANT

SELECTION CHART FOR CR, UR AND RELEVANT NOMINAL CASE SIZES (Ø D x L in mm)

CR

(µF)

RATED VOLTAGE (V)

16

25

35

50

0.10

→→→

4 x 5.3

0.22

→→→

4 x 5.3

0.33

→→→

4 x 5.3

0.47

→→→

4 x 5.3

1.0

→→→

4 x 5.3

2.2

→→→

4 x 5.3

3.3

→→→

4 x 5.3

4.7

→→

4 x 5.3

5 x 5.3

10

4 x 5.3

→

5 x 5.3

6.3 x 5.3

22

5 x 5.3

→

6.3 x 5.3

6.3 x 5.8

33

→

6.3 x 5.3

6.3 x 5.8

6.3 x 7.7

47

6.3 x 5.3

→

6.3 x 5.8

6.3 x 7.7

100

6.3 x 5.8

6.3 x 7.7

8 x 10

10 x 10

220

6.3 x 7.7

8 x 10

10 x 10

-

330

8 x 10

10 x 10

-

470

10 x 10

-
