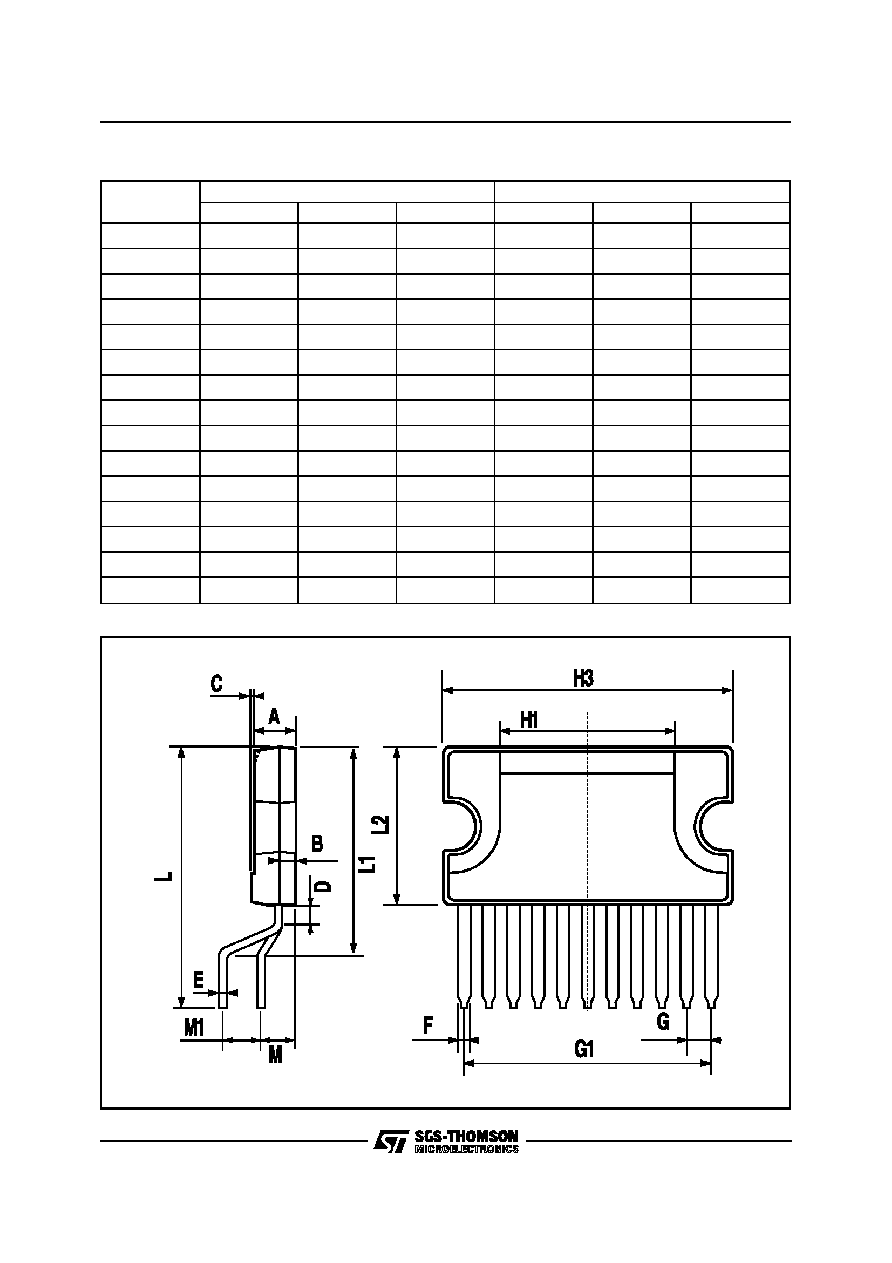

CLIPWATT11 PACKAGE MECHANICAL DATA
DIM.
mm
inch
MIN.
TYP.
MAX.
MIN.
TYP.
MAX.
A
3.10
0.122
B
1.10
0.04
C
0.15
0.006
D
1.50
0.059
E
0.52
0.02
F
0.80
0.03
G
1.70
0.066
G1
17.00
0.66
H1
12.00
0.48
H3
20.00
0.79
L
17.90
0.70
L1
14.40
0.57
L2
11.00
0.43
M
2.54
0.1
M1
2.54
0.1
