TDA7261 Datasheet(PDF) 1 Page - STMicroelectronics |
|
|
|||||||||||||||||||||||||||||
TDA7261 Datasheet(HTML) 1 Page - STMicroelectronics |
|
|

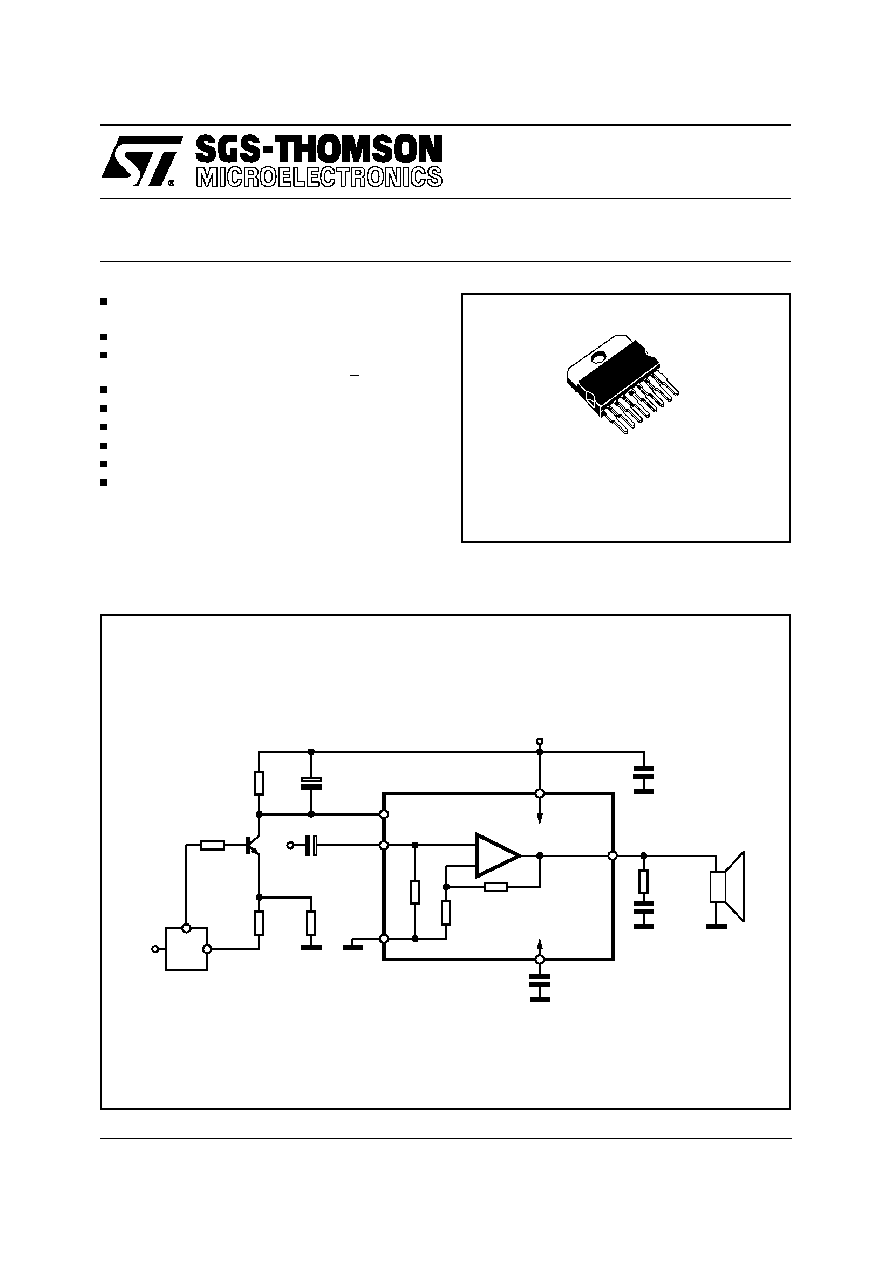

1 / 9 page  TDA7261 25W MONO AMPLIFIER WITH MUTE/ST-BY WIDE SUPPLY VOLTAGE RANGE (UP TO 50V ABS MAX.) SPLIT SUPPLY HIGH OUTPUT POWER: 25W @ THD =10%, RL =8 Ω,VS = +20V NO POP AT TURN-ON/OFF MUTE (POP FREE) STAND-BY FEATURE (LOW IQ) FEW EXTERNAL COMPONENTS SHORT CIRCUIT PROTECTION THERMAL OVERLOAD PROTECTION DESCRIPTION The TDA7261 is class AB Audio power amplifier assembled in the Multiwatt package, specially de- signed for high quality sound application in mono TV chassis. February 1997 Multiwatt 8 ORDERING NUMBER: TDA7261 +5V 18K 15K IN 1 µF 15K 1 µF MUTE/ ST-BY GND 4.7 Ω 100nF OUT 1000 µF 1000 µF +VS 2 4 6 7 5 3 + - D94AU088 RL +VS -VS µP Figure 1: Typical Application Circuit 1/9 |
