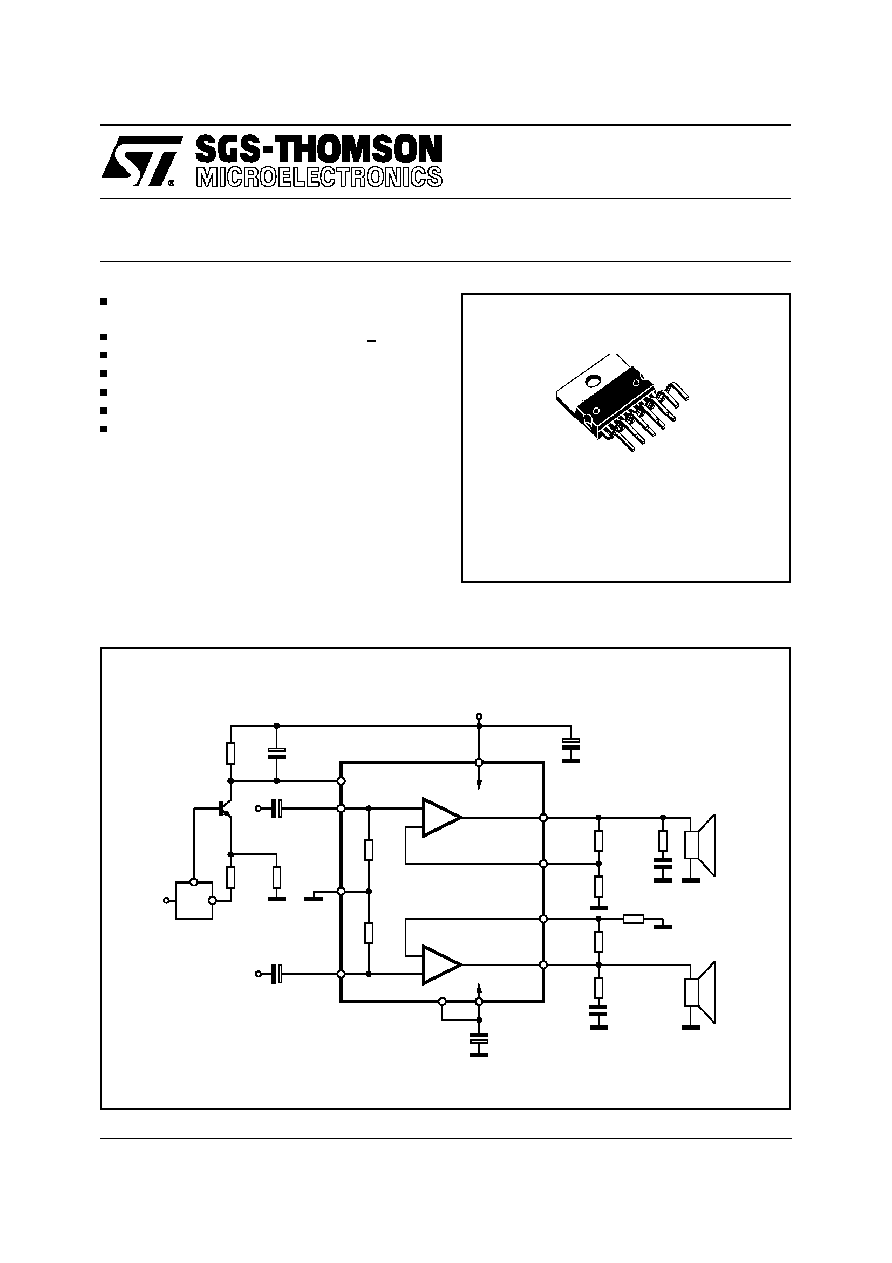

1 / 7 page  TDA7499 6 + 6W STEREO AMPLIFIER WITH MUTE & ST-BY WIDE SUPPLY VOLTAGE RANGE UP TO ±18V 6 + 6W @ THD =10%, RL =8 Ω,VS = +14V NO POP AT TURN-ON/OFF MUTE (POP FREE) STAND-BY FEATURE (LOW Iq) SHORT CIRCUIT PROTECTION TO GND THERMAL OVERLOAD PROTECTION DESCRIPTION The TDA7499 is class AB dual Audio power am- plifier assembled in the Multiwatt package, spe- cially designed for high quality sound application as Hi-Fi music centers and stereo TV sets. May 1997 Multiwatt11 ORDERING NUMBER: TDA7499 +5V 18K 15K IN (L) 1 µF 15K 1 µF MUTE/ ST-BY GND IN (R) 1 µF 4.7 Ω 4.7 Ω 100nF 100nF OUT (L) OUT (R) 1000 µF 1000 µF +VS 3 5 7 9 6 11 2 4 + + - - D94AU085 RL (L) RL (R) -VS µP 560 Ω 18K IN- (L) 8 10 IN- (R) 1 560 Ω 18K Figure 1: Typical Application Circuit 1/7 |
