TDA9530 Datasheet(PDF) 1 Page - STMicroelectronics |
|
|
|||||||||||||||||||||||||||||
TDA9530 Datasheet(HTML) 1 Page - STMicroelectronics |
|
|

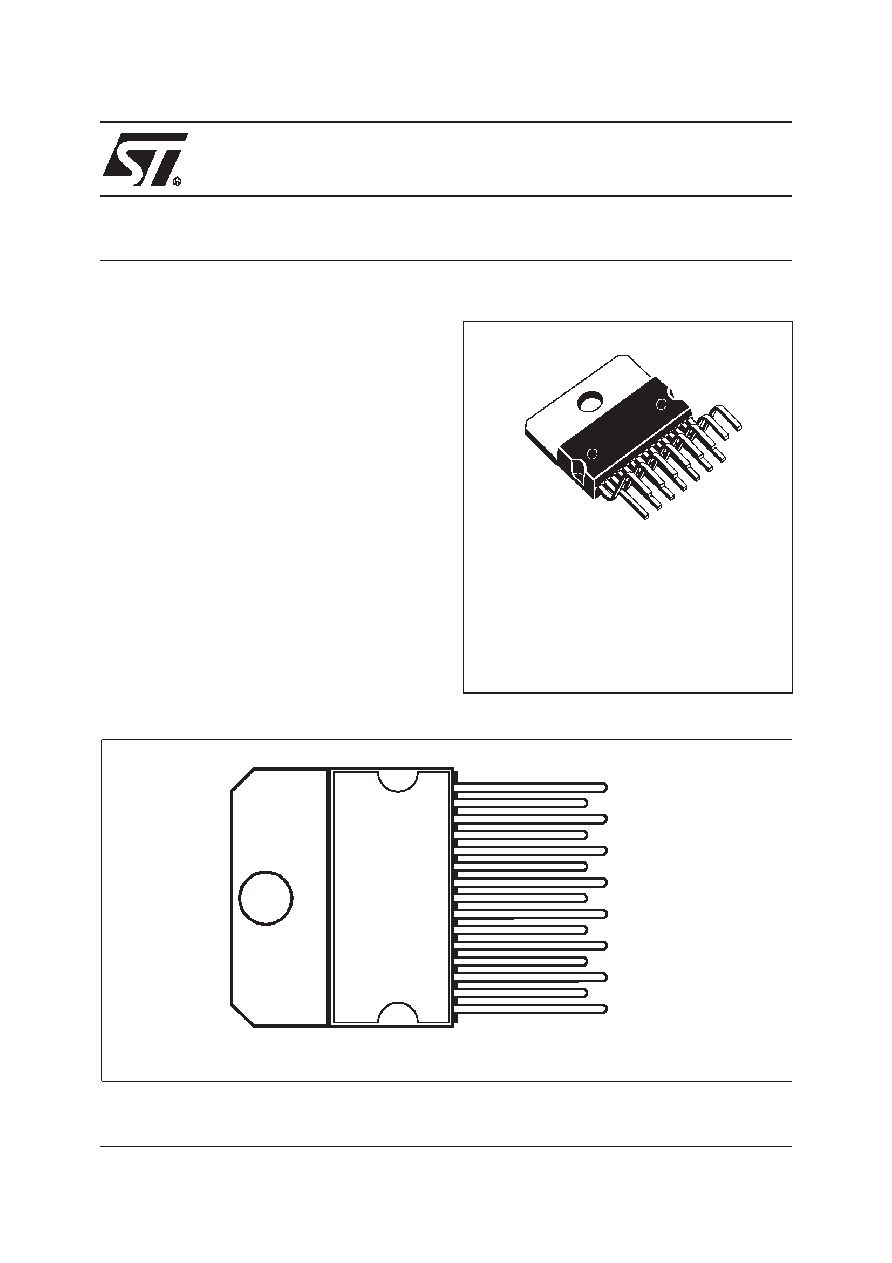

1 / 8 page  Version 4.1 March 2000 1/8 TDA9530 9.5NS TRIPLE HIGH VOLTAGE VIDEO AMPLIFIER FEATURE • TRIPLE CHANNEL VIDEO AMPLIFIER • SUPPORTs DC OR AC COUPLING APPLICATIONS • BUILT IN VOLTAGE GAIN: 20 • RISE AND FALL TIMES: 9.5ns TYPICAL • BANDWIDTH: 37MHz TYPICAL • SUPPLY VOLTAGE: 110V • ADDITIONAL CUT-OFF INPUT CONTROL DESCRIPTION The TDA9530 is a triple video amplifier with high voltage Bipolar/CMOS/DMOS technology (BCD). It can drive the 3 cathodes of a monitor CRT in DC or AC coupling mode. A DC coupling application is obtained by connecting a triple DC controlled cir- cuit either on the input pin or on the cut-off pin. PIN CONNECTIONS MULTIWATT 15 ORDER CODE: TDA9530 (Plastic Package) OUT3 C.OFF3 GND3 IN3 VCC IN2 GND2 OUT2 C.OFF2 VDD IN1 GND1 C.OFF1 OUT1 GNDS 1 |
