ADA4062-2ARZ-R7 Datasheet(PDF) 15 Page - Analog Devices |
|
|
|||||||||||||||||||||||||||||
ADA4062-2ARZ-R7 Datasheet(HTML) 15 Page - Analog Devices |
|

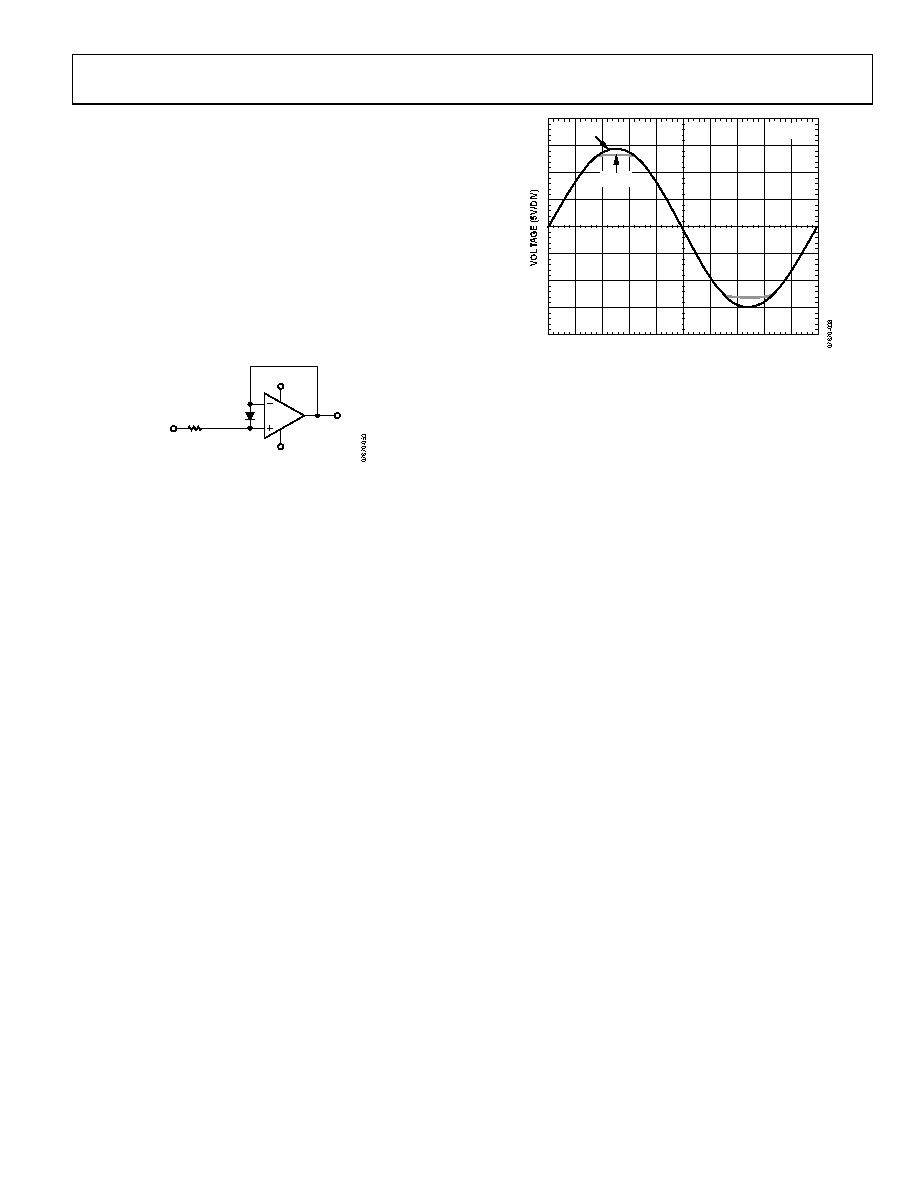

15 / 20 page ![]() ADA4062-2 Rev. 0 | Page 15 of 20 Most JFET input amplifiers have phase reversal if either input exceeds the input common-mode range. For the ADA4062-2, the output does not phase reverse if one or both of the inputs exceeds the input voltage range but stays below the positive supply rail and 0.5 V above the negative supply rail. With a supply voltage of ±15 V, phase reversal occurs when the input voltage is a negative signal greater than −14.5 V. This is due to saturation of the input stage leading to forward biasing of the gate-drain diode. Phase reversal in ADA4062-2 can be prevented by using a Schottky diode to clamp the input terminals to each other. In the simple buffer circuit in Figure 57, D1 protects the op amp against phase reversal and R limits the input current that flows into the op amp. +VSY –VSY VO R 10kΩ ADA4062-2 1/2 D1 IN5711 IN Figure 57. Phase Reversal Solution Circuit TIME (40µs/DIV) VSY = ±15V VOUT VIN Figure 58. No Phase Reversal |
|
|
