EXTERNAL AC/DC POWER SUPPLIES

40 W External AC/DC Power Supplies

1

2 YEAR WARRANTY

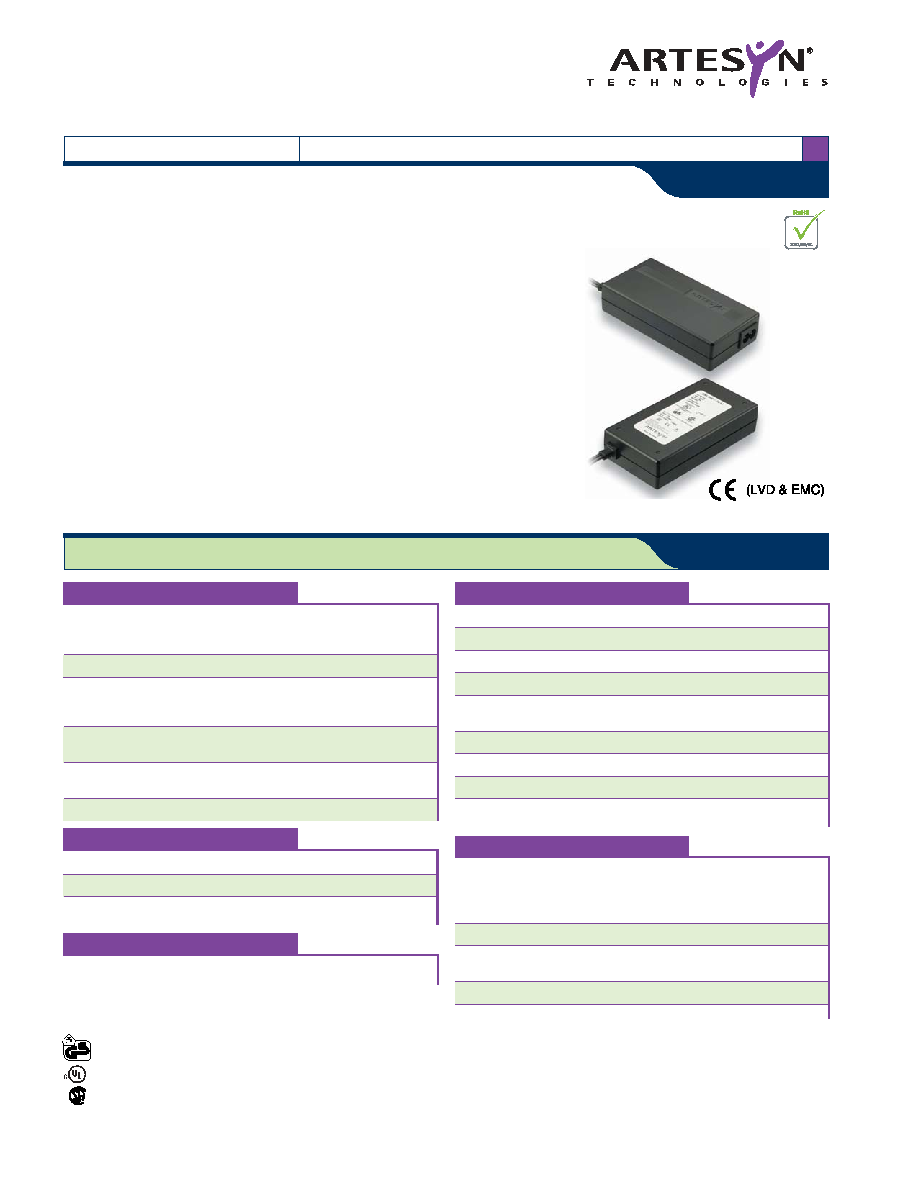

SSL40C Series

Single Output External P o wer Supply

The SSL40C series is a 40 W universal input ac-dc external Class II power supply in a

4.65 x 2.40 x 1.08 inch plastic enclosure. The SSL40C represents the next generation of

low cost external power supplies, suitable for a host of worldwide low power external

power applications. The SSL40C provides up to 40 W under natural convection cooling.

Standard features include universal ac input, overvoltage and short circuit protection

and meets EN55022 level B for conducted emissions. The SSL40C has several output

voltages available ranging from 12 V to 48 V. The series has full international safety

approvals and carries the CE mark to provide pre-approved SELV outputs.

All specifications are typical at nominal input, full load at 25 °C unless otherwise stated

GENERAL SPECIFICATIONS

Hold-up time

115 Vac @ full load

10 ms

Efficiency

115 Vac @ full load

80% typ.

Isolation voltage

Input/output

3000 Vac

Switching frequency

Fixed

72 kHz, typ.

Approvals and

EN60950, IEC950, UL1950

standards (See Note 4)

CSA C22.2 No. 950

Case material

General Electric Lexan, black

Flammability rating

UL94V-0

Weight

200 g (7 oz)

MTBF

MIL-HDBK-217F

>150,000 hours

@ 25 °C

ENVIRONMENTAL SPECIFICATIONS

Thermal performance

Operating, full load

0 °C to +40 °C

Non-operating

–10 °C to +85 °C

0 °C to +40 °C ambient,

Full load

convection cooled

Relative humidity

5% to 95% RH

Altitude

Operating

10,000 feet max.

Non-operating

30,000 feet max.

Vibration (See Note 6)

5-500 Hz

2.4 G (approx.)

Shock

per MIL-STD-810E

516.4 Part IV

OUTPUT SPECIFICATIONS

Total regulation

Main output

±5.0%

Line, load and

temperature coefficient

Overshoot/undershoot

Less than 10 ms

10%

Transient response

Main output,

±5.0% of nominal

70% to 100%

voltage

full load step

Overvoltage protection

Auto-recovery

140% nominal

(See Note 5)

Short circuit protection

Continuous

with auto-recovery

Minimum output current

0 A

INPUT SPECIFICATIONS

Input voltage range

Universal input

90-264 Vac

Input frequency range

47-63 Hz

Input current

90 Vac

1.0 Arms max.

264 Vac

0.6 Arms max.

EMC CHARACTERISTICS

Radiated emissions

EN55022, FCC

Level B

Conducted emissions

EN55022, FCC

Level B

SPECIFICATIONS

International Safety Standard Approvals

VDE0805/EN60950/IEC950 File No. 133084G

UL1950 File No. E136005

CSA C22.2 No. 950 File No. LR41062

geprüfte

Sicherhelt

File Name: ssl40c.pdf Rev (03): 07 Nov 2005
