PSA25LS Characteristics

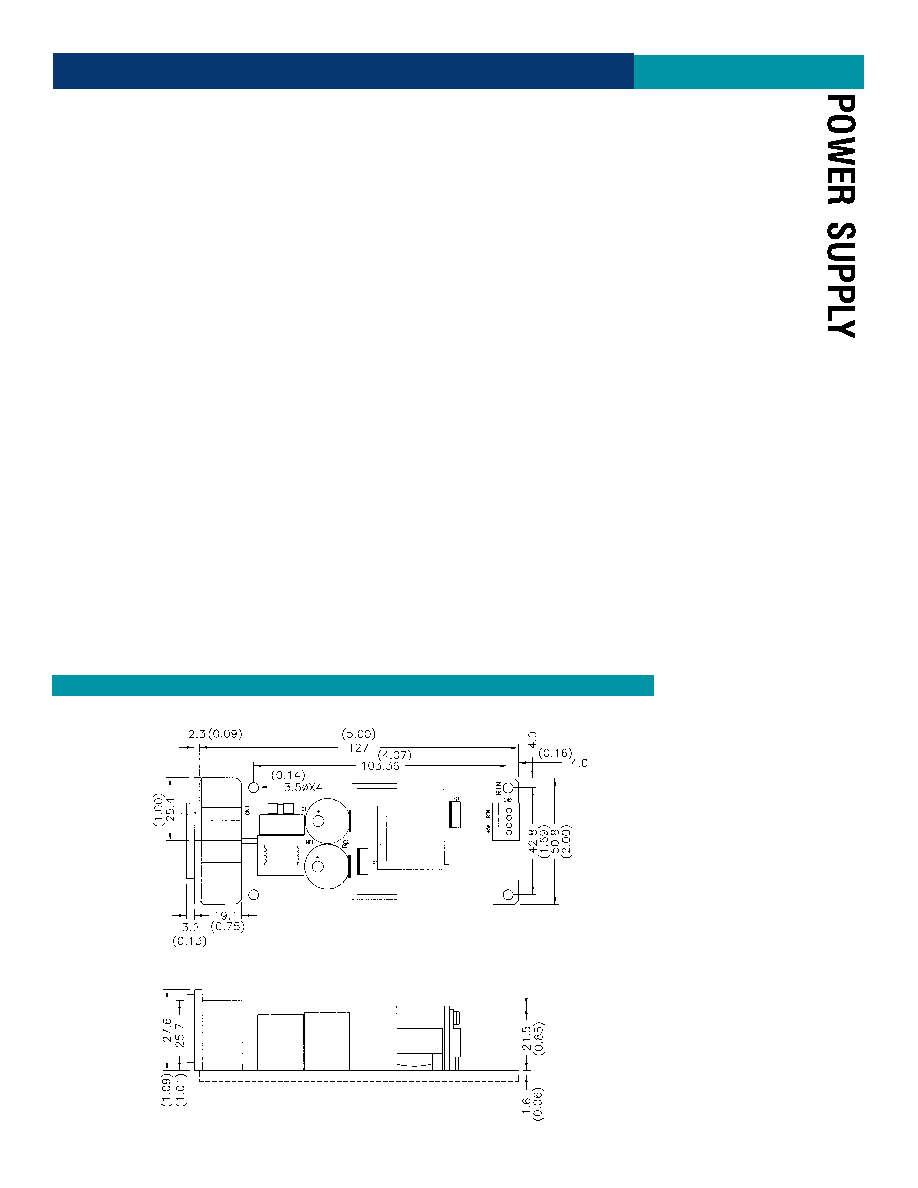

Dimension Diagram Unit: mm (inch)
INPUT:
AC Input Voltage
85 to 264 VAC
AC Input Frequency
47 to 63Hz
AC Input Current
0.5Arms (120VAC)
0.25Arms (240VAC)
AC Inrush Current (Cold)
30A max. (120VAC)
60A max. (240VAC)
Efficiency
70% Typical
OUTPUT:
Hold-up Time
16ms Full load, 120VAC
Overvoltage Protection
Zener Diode Clamping
Overcurrent Protection
Auto Restart
ENVIRONMENTAL:
Operation Temperature (Convection)
0 to 50
°C
Storage Temperature
-25 to +75
°C
Humidity
20 to 90% RH (Non-condensing)
Emissions
FCC Class B
EN 55022 B
Immunity
EN 50082-1: 1997
61000-4-2, Level 3
61000-4-3, Level 2
61000-4-4, Level 2
61000-4-5, Level 3
61000-4-6, Level 2
61000-4-11
GENERAL:
Leakage Current
Less than 0.75mA (254VAC)
Dielectric Withstand (Hipot)
Input to Output
3000VAC, 1 min., 10mA
Switching Frequency
100KHz (typical)
MTBF (Full Load, 25
°C)
MIL-HDBK-217F: 150K hrs.
AC Input Connector
EN 60320/C14
DC Output Connector
Molex 09-65-2048 or Equivalent
