Advanced Digital Logic, Inc.; 4411 Morena Blvd., Suite 101; San Diego, CA 92117-4345

MICROSPACE PC/104

Data subject to change without notice

AMD Processor 133MHz - MSM586SEL / SEG / SEN

Feature

• AMD ELAN520 Processor

• 133MHz

• Power Management

• 32-128MB SDRAM in SODIMM Socket

• CRT/LCD on-board

• 100/10Base-T LAN-Ethernet

• E-IDE (1.8/2.5” drives) Hard Disk Interface

• SXGA/LCD (ATI-M1), 8MB internal VRAM

• CRT and LCD/LVDS (18/24Bit) dual independent displays

SEG ONLY

• 2x USB (1.1) for SEG and SEL ONLY

• COM1, COM2, COM3, COM4, LPT

• RTC with Battery Back-up, Watchdog

• DiskOnChip Socket

• EEPROM

• Single 5V Power Supply

• Compact Flash Socket

• PC/104 (ISA) BUS

Description

The MICROSPACE PC/104 MSM586SEL/SEG

board utilizes the AMD ELAN520 processor and

integrates all standard functions of a PC. It includes

an on-board CRT/LCD interface (SEG ONLY),

which allows connecting to a CRT and/or 3V/5V flat

panels via 24Bit TFT LCD interface. Expansions

cards (i.e. additional COM ports, Ethernet, etc.) can

be added using the PC/104 bus. Operating Sys-

tems can be booted from floppy disk, hard disk, or

from the flash disk (compact flash or DOC). A non

volitile EEPROM allows to save setup values with-

out a battery connected and a programmable

watchdog timer is on board. Power consumption is

also low and is typically around 0.86A (typ. for

SEL) at 5V. No fan is needed (Passive cooling).

Ordering Information

Item Codes

Part#

Description

MSM586SEG

801370

133MHz, 0MB SDRAM, VGA, LAN, USB

MSM586SEL

801380

133MHz, 0MB SDRAM, no VGA, LAN, USB

MSM586SEN

801350

133MHz, 0MB SDRAM, no VGA, LAN, no USB

Options

MSM-CK

802605

Cable kit, incl. cable for 1.8/2.5” hard drive

Assembly-Kit

710460

4PC/104 Std. Stand-off posts, Hex Nuts, screws

MSEIDECK

100-9637 44Pin to two 40Pin IDE cable

MSFC

801071

Adapter for regular floppy drive to micro-floppy dr

SDRAM options

SDRAM32-ES

991514

SDRAM 144pin, 32MB, 1.0”, -25C/+70C

*More options may be available, please contact our Sales Office *

SDRAM64-ES

991614

SDRAM 144pin, 64MB, 1.0”, -25C/+70C

SDRAM128-ES

991724

SDRAM 144pin, 128MB, 1.0”, -25C/+70C

SDRAM32-EE

991517

Enh. SDRAM 144pin, 32MB, 1.0”, -40C/+85C

CF1-Retainer

989990

Type 1 CF retaining clip for MSM series, installed

SDRAM64-EE

991617

Enh. SDRAM 144pin, 64MB, 1.0”, -40C/+85C

SDRAM128-EE

991727

Enh. SDRAM 144pin, 128MB, 1.0”, -40C/+85C

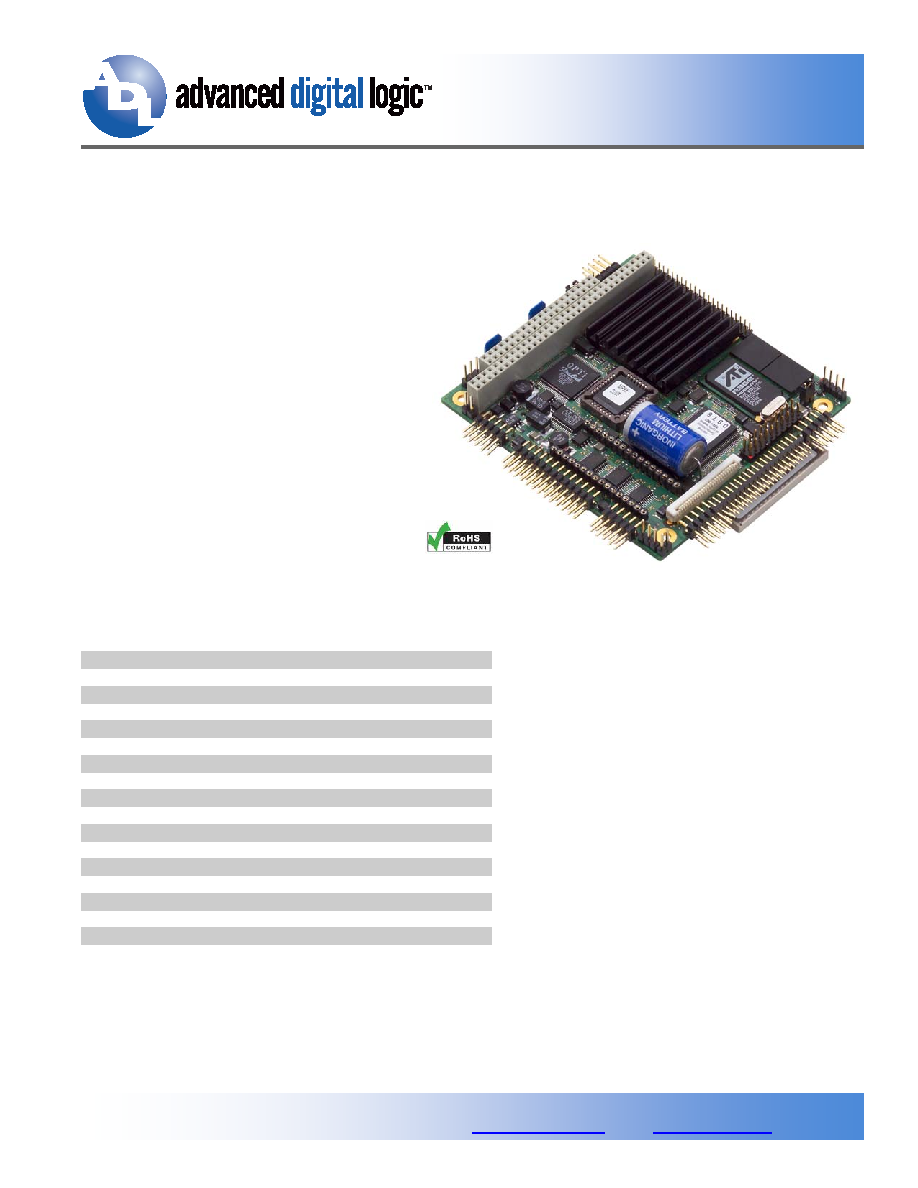

Picture shows MSM586SEG
