ADV3221/ADV3222
Rev. 0 | Page 13 of 20
–20
–30
–40
–50
–60
–70
–80
–90
–100
–110
110
10k
1k
100
FREQUENCY (MHz)

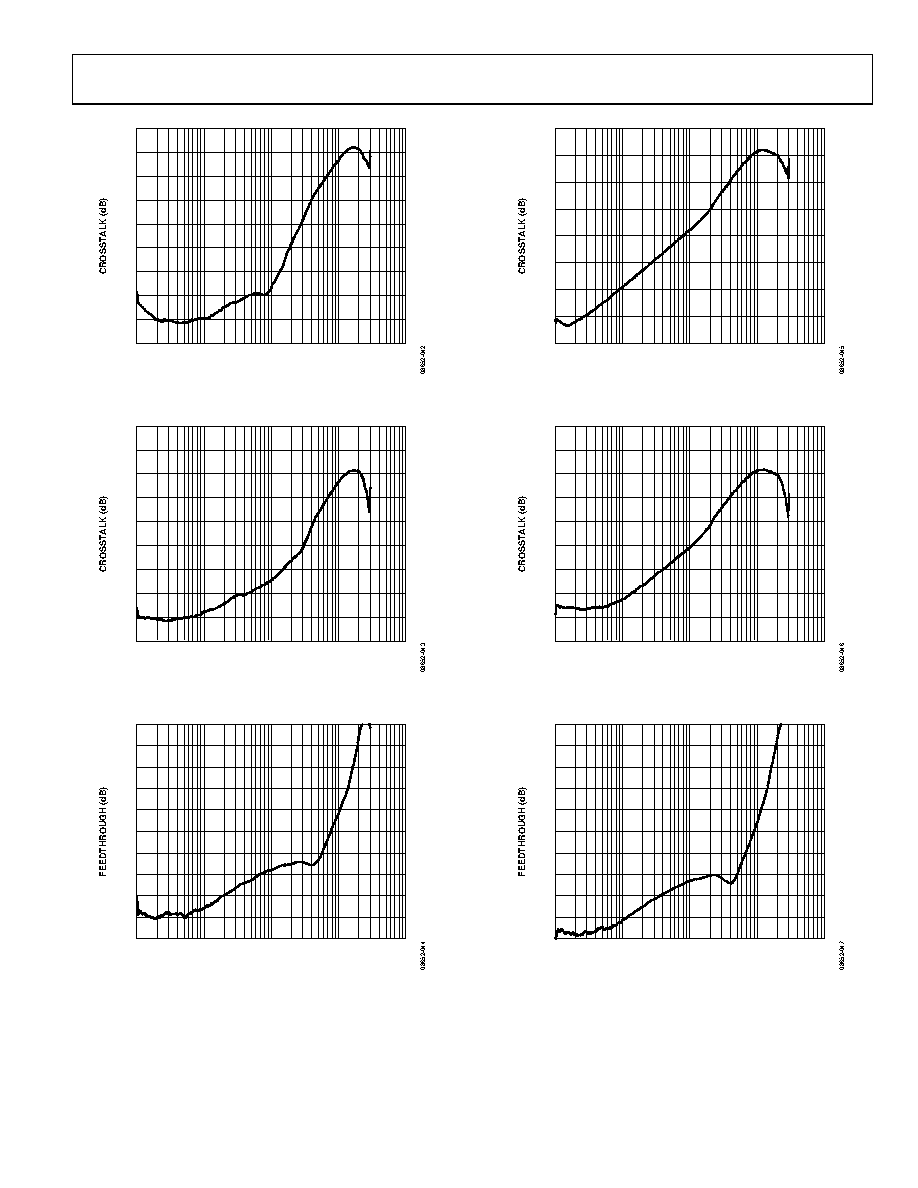

Figure 36. ADV3221 All Hostile Crosstalk
–20
–30
–40
–50
–60
–70
–80
–90
–100
–110
110
10k
1k
100
FREQUENCY (MHz)
Figure 37. ADV3221 Crosstalk, Adjacent Channel
0
–10
–20
–30
–40
–50
–60
–80
–70
–90
–100
110
10k
1k
100
FREQUENCY (MHz)
Figure 38. ADV3221 Off Isolation
–20
–30
–40
–50
–60
–70
–80
–90
–100
110
10k
1k
100
FREQUENCY (MHz)
Figure 39. ADV3222 All Hostile Crosstalk
–20
–30
–40
–50
–60
–70
–80
–90
–100
–110
110
10k
1k
100
FREQUENCY (MHz)
Figure 40. ADV3222 Crosstalk, Adjacent Channel
0
–10
–20
–30
–40
–50
–60
–80
–70
–90
–100
110
10k
1k
100
FREQUENCY (MHz)
Figure 41. ADV3222 Off Isolation
