MB-0153-2

3/15

JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.

B1. FI-RE**HL (Mechanical lock, shell type)

Material and Finish

Component

Stainless steel / None

Lock Spring

Heat resistant plastic / None

Insulator

Copper alloy / Sn plating

Press Fit Shell

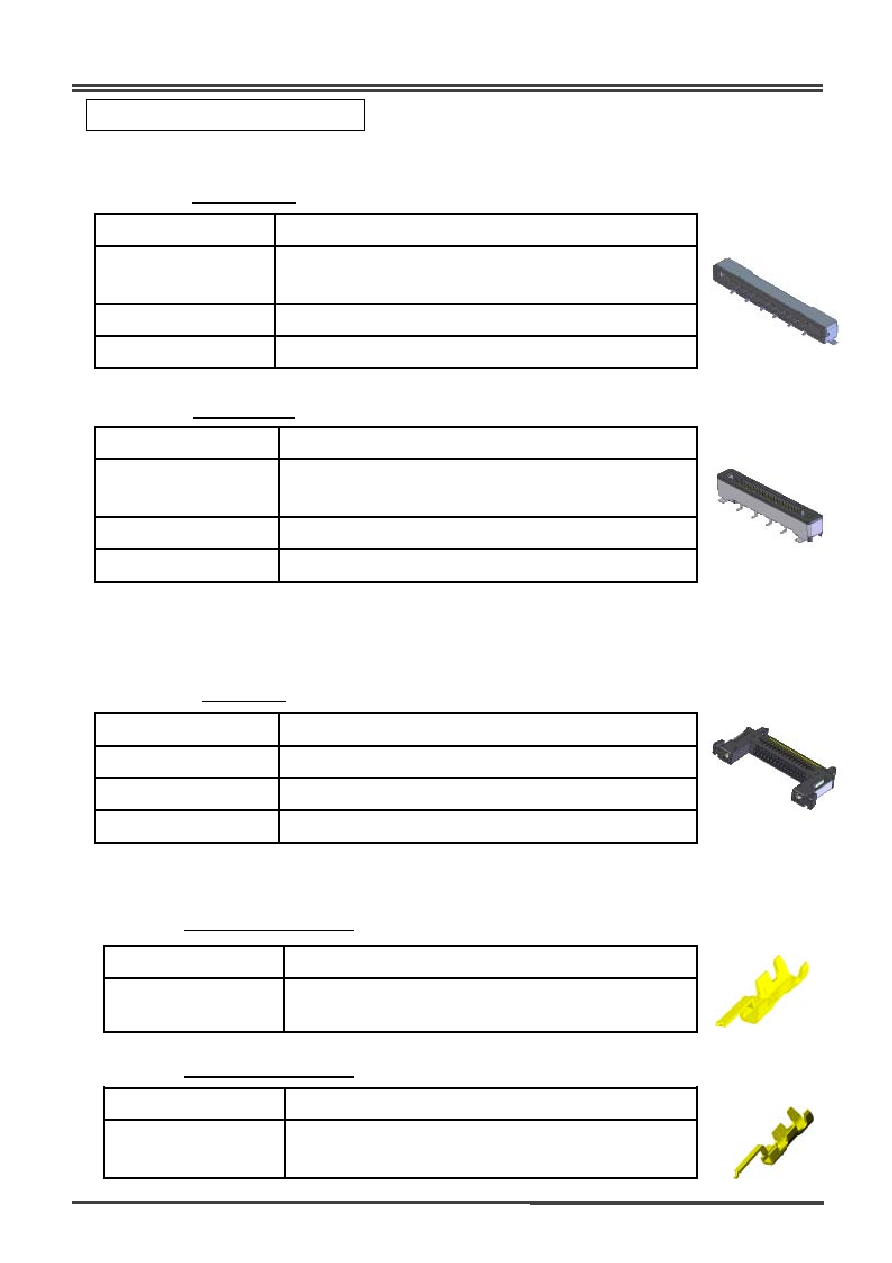

Materials and Finishes

A1. FI-RE**S-HF (Right-angle, shell type)

Heat resistant plastic / None

Insulator

Stainless steel / None

Shell

Copper alloy / Contact area Au,

SMT Terminal area Sn plating

Contact

Material and Finish

Component

A2. FI-RE**S-VF (Straight, shell type)

Material and Finish

Component

Stainless steel / None

Shell

Heat resistant plastic / None

Insulator

Copper alloy / Contact area Au,

SMT Terminal area Sn plating

Contact

Receptacle

Plug, Crimp Type

B2. FI-RC3-1A-1E-15000 (Crimp for upper contact)

Material and Finish

Component

Phosphor bronze / Contact area Au,

Terminal area Sn plating

Contact

B3. FI-RC3-1B-1E-15000 (Crimp for lower contact )

Material and Finish

Component

Phosphor bronze / Contact area Au,

Terminal area Sn plating

Contact
