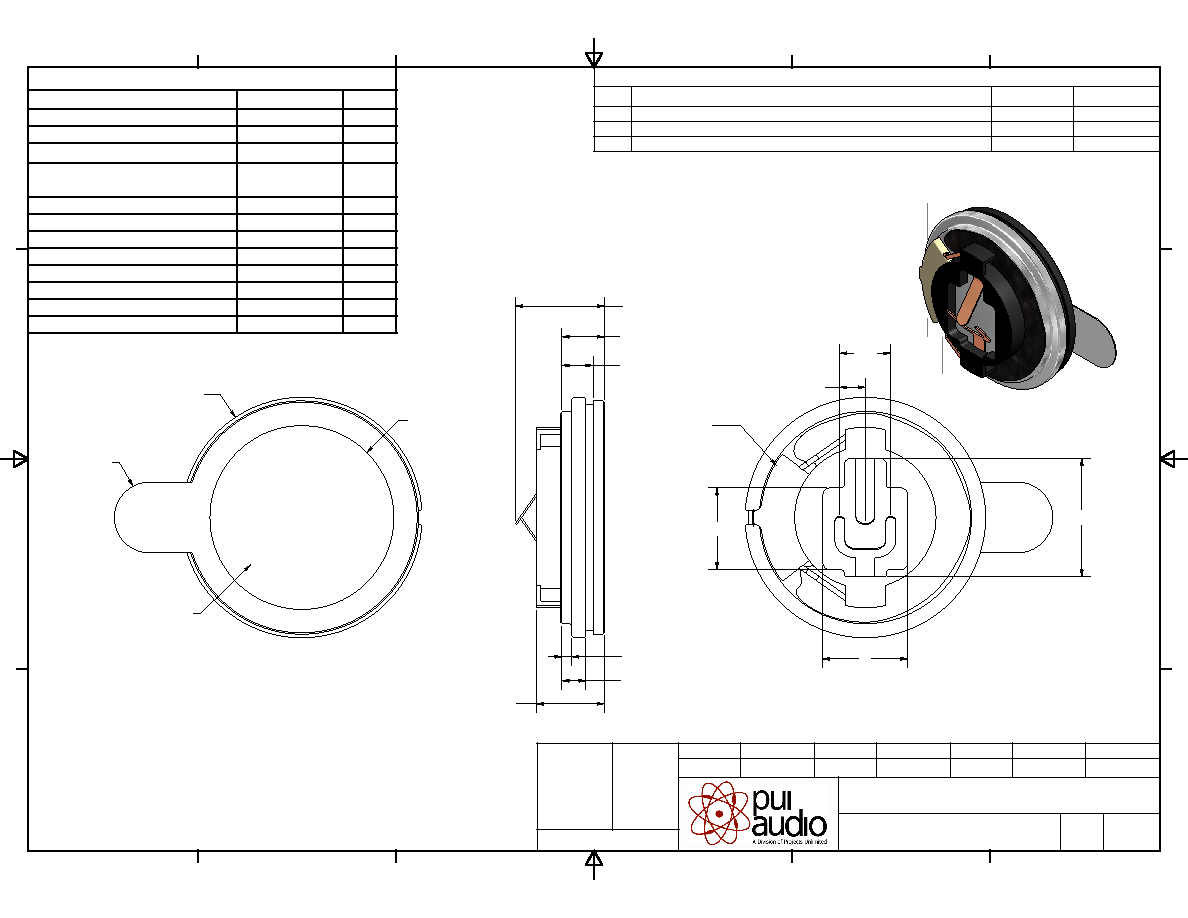

Speaker

AS01708MR-SC-R

J.D.

E.P.

B.R.

4/8/2008

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

5/15/2006

Date

5/16/2006

Date

5/16/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS01708MR-SC-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

5/15/2006

A

ADDED OUTSIDE DIAMETER

3/16/2007

R.W.

B

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

4/08/2008

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

0.3

W

MAX INPUT POWER

0.5

W

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 0.1W/0.1M

(AT 0.8, 1.0, 1.2, 1.5, kHz)

88 ± 3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

750 ± 20%

Hz

FREQUENCY RANGE

750 ~ 5000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

MYLAR

-

MAGNET MATERIAL

Nd-Fe-B

-

OPERATING TEMPERATURE

-20 ~ +50

°C

WEIGHT

1.6

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

n17

n13

PAPER

FELT

2.2

`0.1

3

`0.1

6.3

`0.2

FREE POSITION

4.8

`0.2

WORKING POSITION

0.7

`0.1

1.7

`0.1

LACQUER

BONDING

5.8

8.4

3.6

1.8

6
