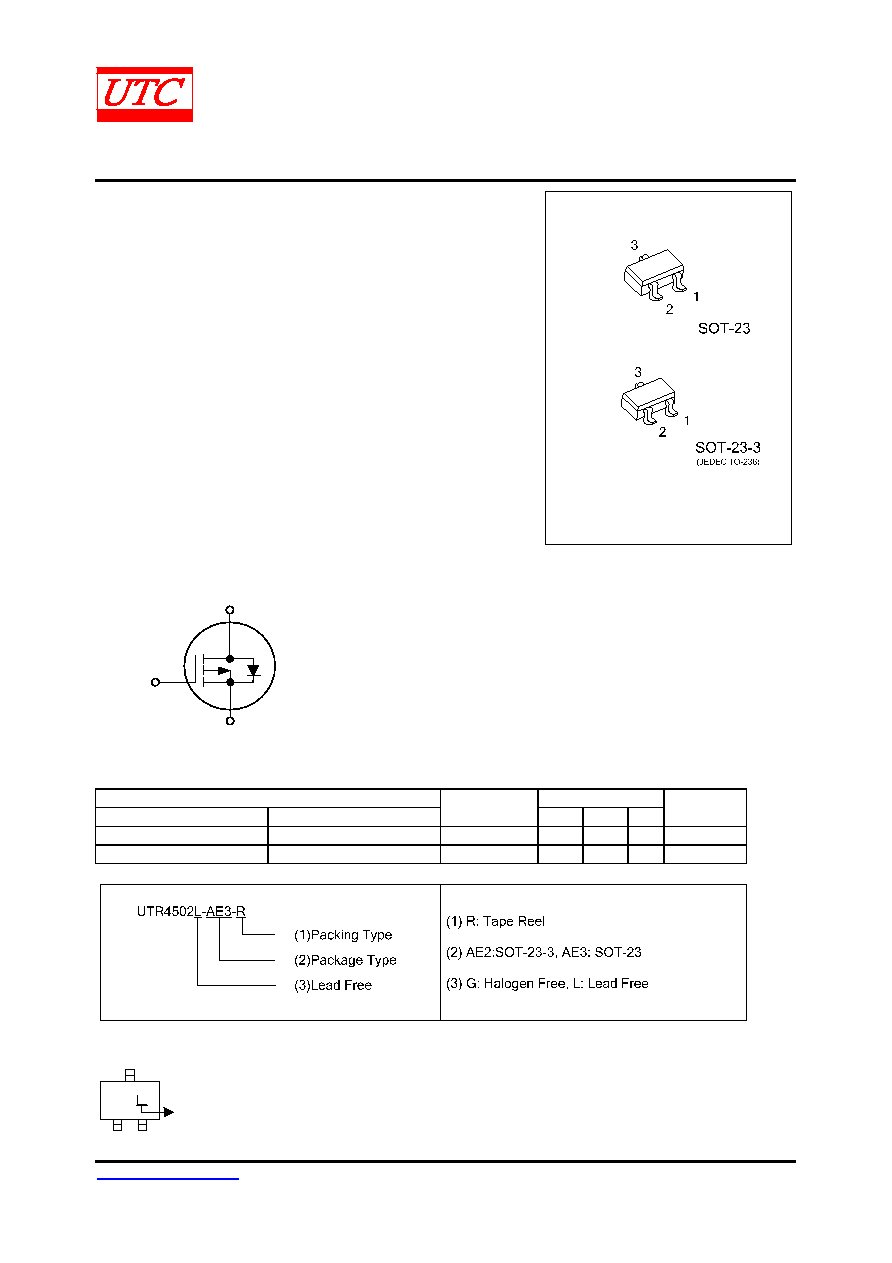

UNISONIC TECHNOLOGIES CO., LTD

UTR4502

Power MOSFET

www.unisonic.com.tw

1 of 4

QW-R502-234.C

-1.95 Amps, -30 Volts

P-CHANNEL POWER MOSFET

DESCRIPTION

The UTR4502 uses UTC advanced technology to provide

excellent RDS(ON), low gate charge and operation with low gate

voltages. This device is suitable for use as a load switch or in PWM

applications.

FEATURES

* RDS(ON)<155mΩ @VGS=-10V

* RDS(ON)<240mΩ @VGS=-4.5V

* Low capacitance

* Optimized gate charge

* Fast switching capability

* Avalanche energy specified

SYMBOL

2.Gate

1.Source

3.Drain

ORDERING INFORMATION

Ordering Number

Pin Assignment

Lead Free

Halogen Free

Package

1

2

3

Packing

UTR4502L-AE2-R

UTR4502G-AE2-R

SOT-23-3

S

G

D

Tape Reel

UTR4502L-AE3-R

UTR4502G-AE3-R

SOT-23

S

G

D

Tape Reel

MARKING

45B

L: Lead Free

G: Halogen Free

Similar Part No. - UTR4502G-AE2-R
