ADL5202
Data Sheet
Rev. 0 | Page 14 of 32
–60
–50
–40
–30
–20
–10
0
10M
100M
1G
FREQUENCY (Hz)

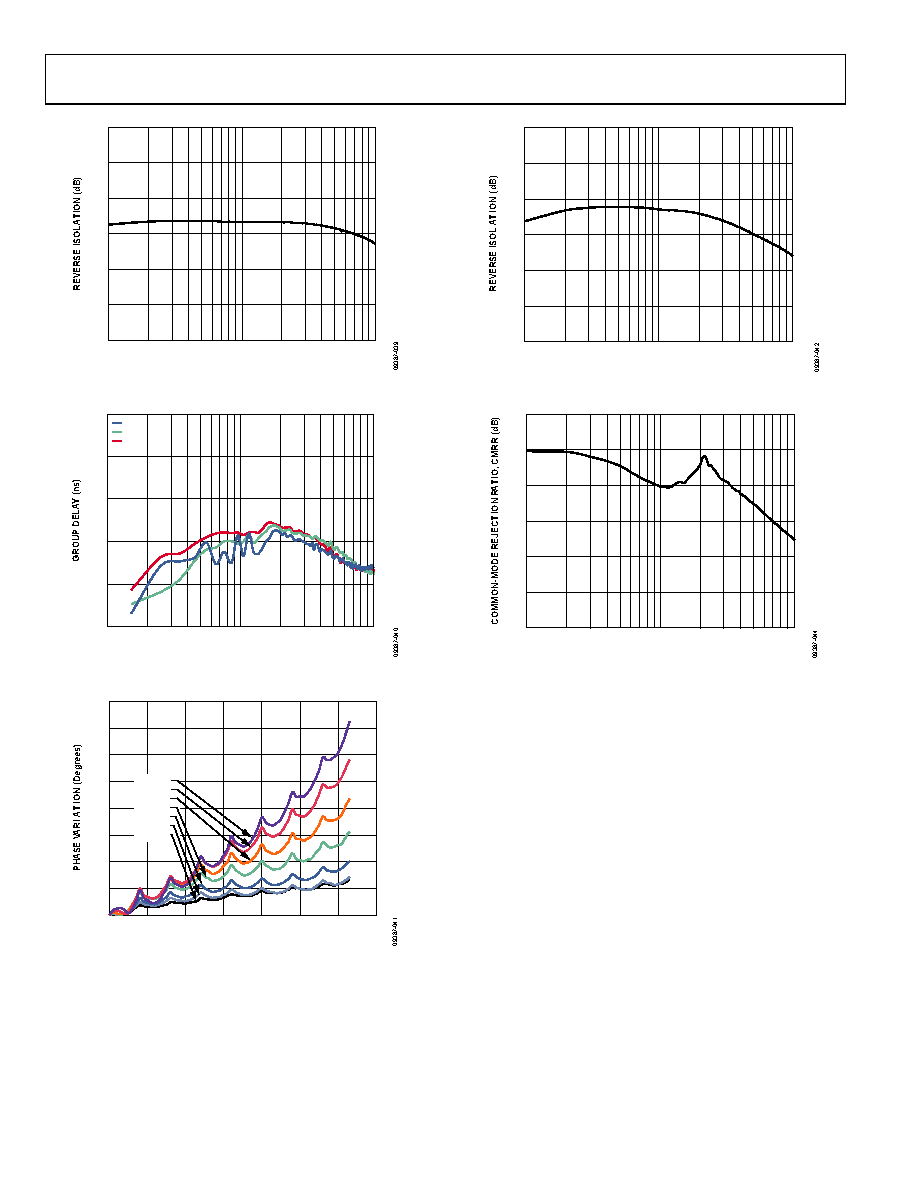

Figure 42. Reverse Isolation vs. Frequency
0
0.2
0.4
0.6
0.8
1.0
10
100
1000
FREQUENCY (MHz)
MAX
MID
MIN
Figure 43. Group Delay vs. Frequency at Max, Mid, and Min Gain Outputs
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
0
10203040506070
GAIN CODE
350MHz
300MHz
250MHz
200MHz
150MHz
100MHz
50MHz
Figure 44. Phase Variation vs. Gain Code
–60
–50
–40
–30
–20
–10
0
10
100
1000
FREQUENCY (MHz)
Figure 45. Disable-State Reverse Isolation vs. Frequency
0
10
20
30
40
50
60
10M
100M
1G
FREQUENCY (Hz)
Figure 46. Common-Mode Rejection Ratio vs. Frequency
