STLQ50M-R Datasheet(PDF) 4 Page - STMicroelectronics

Part # STLQ50M-R
Description  50 mA, 3 μA supply current low drop linear regulator
PDF  18 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  STMICROELECTRONICS [STMicroelectronics]
Direct Link  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

STLQ50M-R Datasheet(HTML) 4 Page - STMicroelectronics

  STLQ50M-R Datasheet HTML 1Page - STMicroelectronics STLQ50M-R Datasheet HTML 2Page - STMicroelectronics STLQ50M-R Datasheet HTML 3Page - STMicroelectronics STLQ50M-R Datasheet HTML 4Page - STMicroelectronics STLQ50M-R Datasheet HTML 5Page - STMicroelectronics STLQ50M-R Datasheet HTML 6Page - STMicroelectronics STLQ50M-R Datasheet HTML 7Page - STMicroelectronics STLQ50M-R Datasheet HTML 8Page - STMicroelectronics STLQ50M-R Datasheet HTML 9Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 4 / 18 page
background image

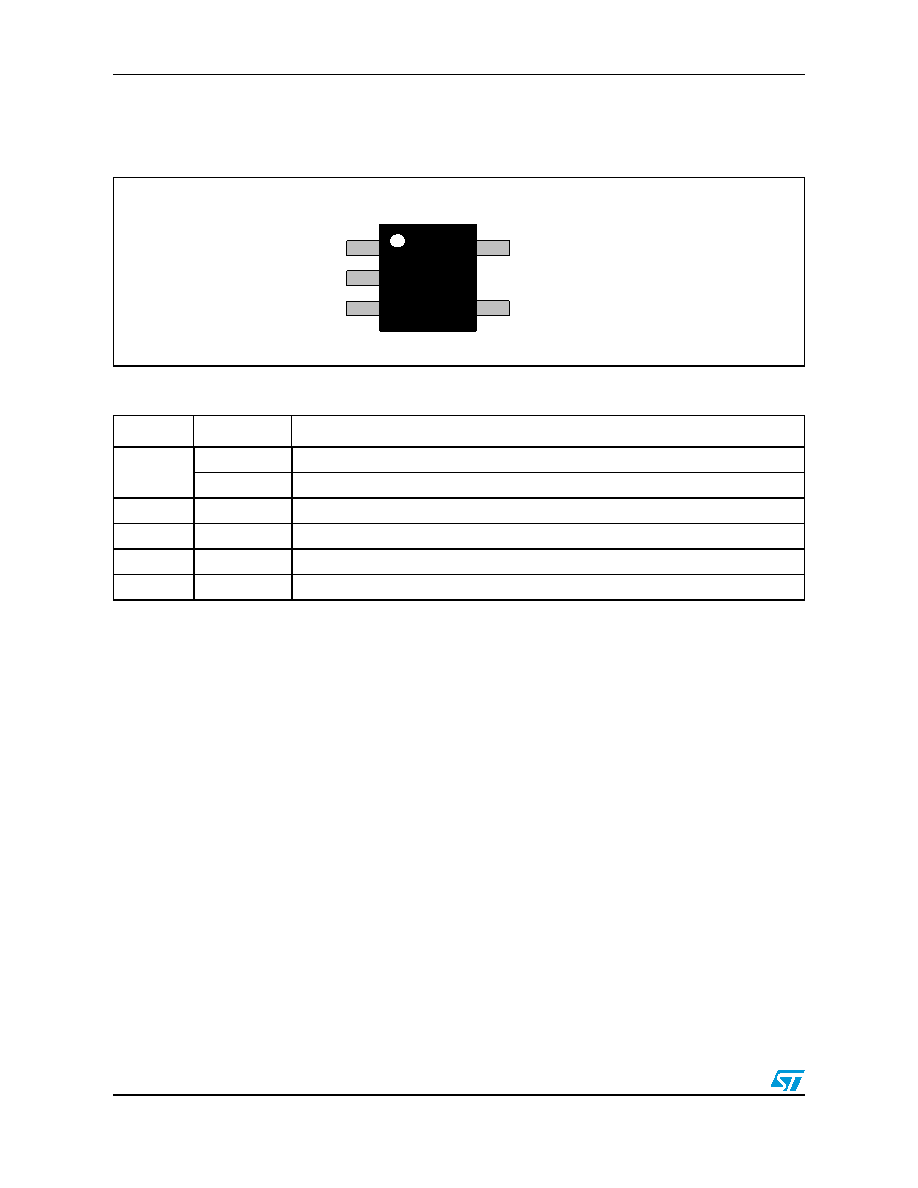

Pin configuration
STLQ50XX
4/18
2
Pin configuration
Figure 2.
Pin connections (top view)
N/C
OUT
ADJ
GND
STLQ50
IN
N/C
OUT
ADJ
GND
STLQ50
IN
Table 2.
Pin description
Pin n°
Symbol
Note
1
ADJ
STLQ50: output voltage adjust
N/C
STLQ50xx: not connected
2
GND
Ground
3
N/C
Not connected
4
IN
Input voltage
5
OUT
Output voltage
