SNL310
16-Bit LCD Controller

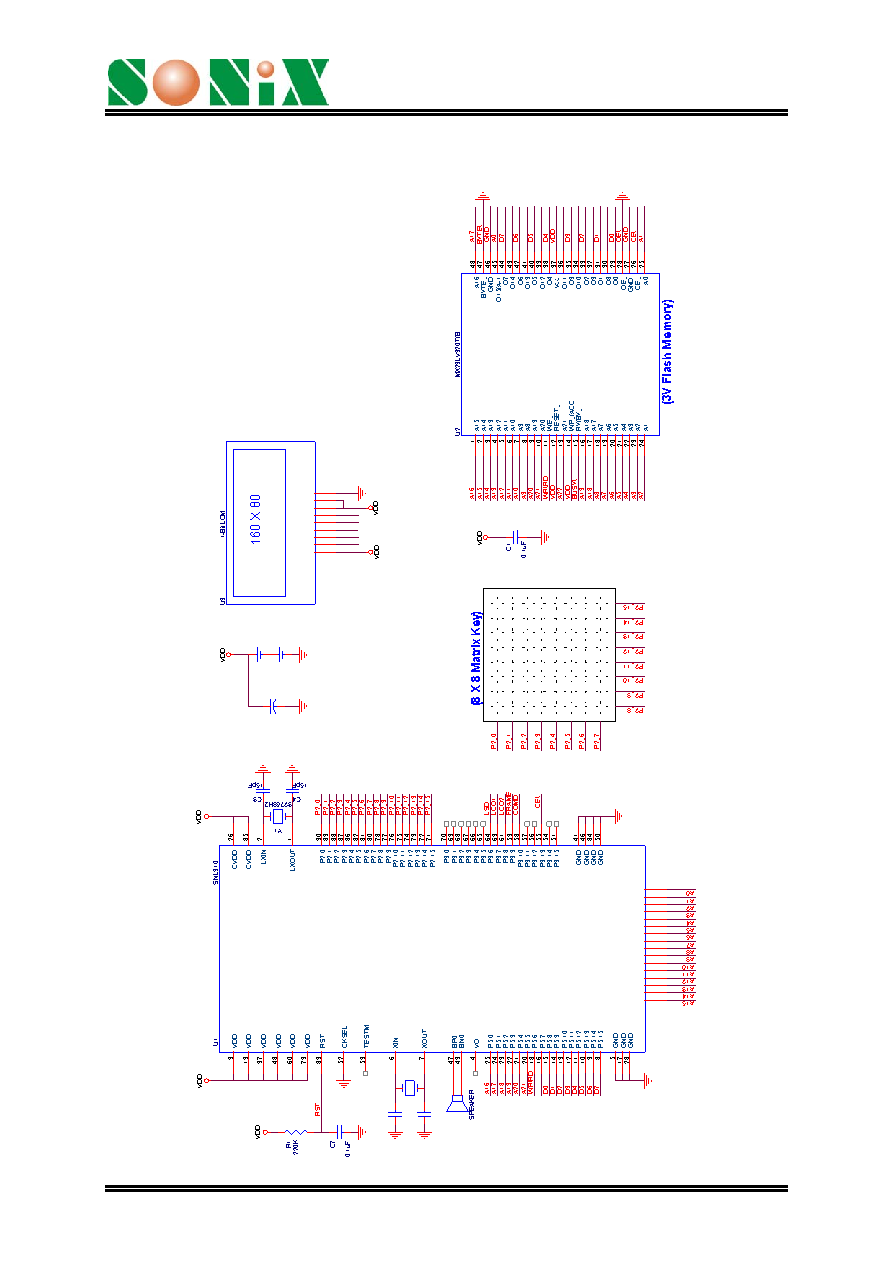

11.2 Application 2
3V/16M Crystal, with 1-Bit LCD driver (80 x 160) and 32M Flash memory
1.5V
1.5V
C2
47uF
LD0
LOAD
CP
FLM
AC
BLANK
POFF
VCC
GND
Y2
16MHZ
C5
15pF
C6
15pF
P4.0
45
P4.1
44
P4.2
43
P4.3
42
P4.4
40
P4.5
39
P4.6
38
P4.7
36
P4.15
27
P4.14
29
P4.13
30
P4.12
31
P4.11
32
P4.10
33
P4.9
34
P4.8
35
FRAME
COMD
LCO1
LCO2
LSD
Ver: 1.7
May 2, 2003
21
