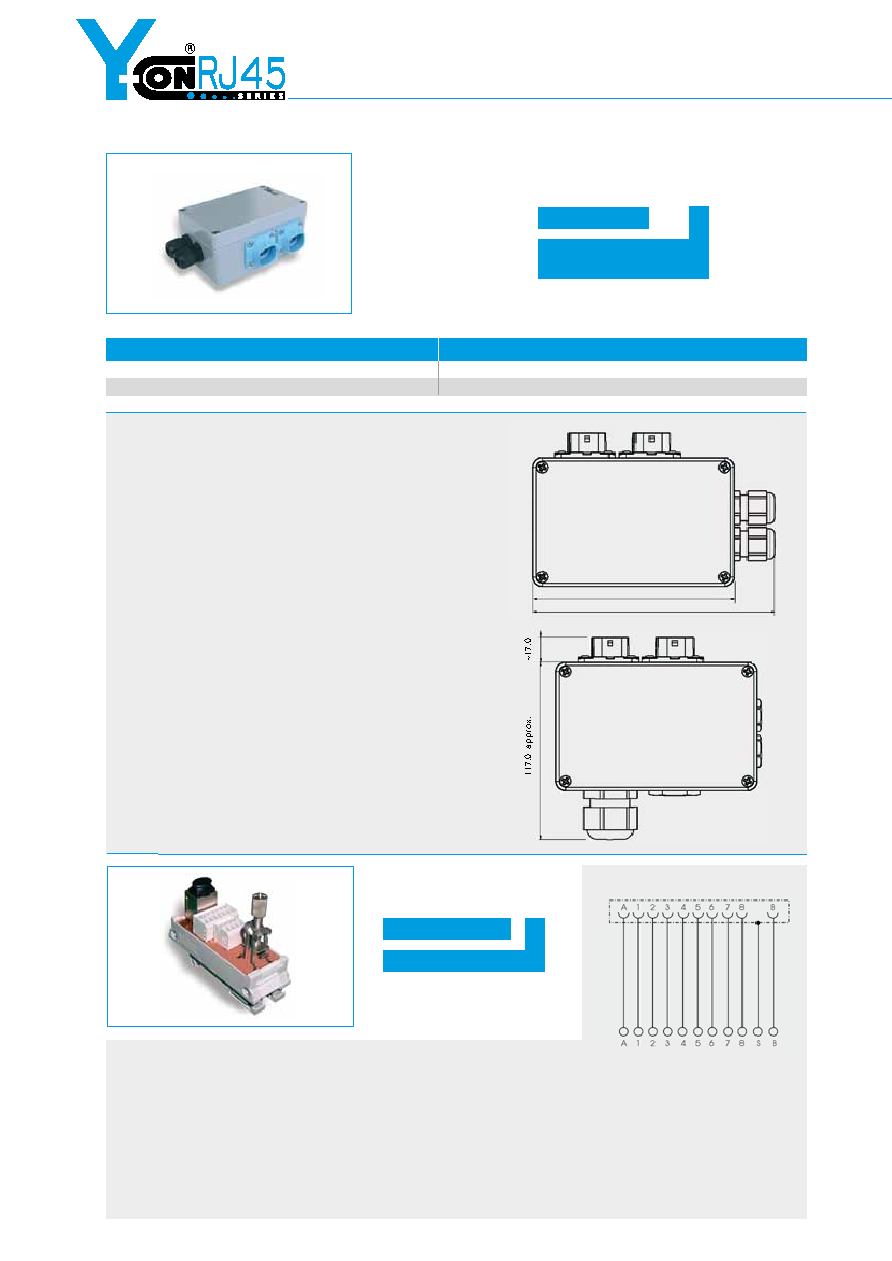

Description:

IP67 industrial outlets for structured

cabling, including Y-ConFlange-10-*

and cable fixing

IP67-geschützte Anschlussdosen für strukturierte

Verkabelung, mit montiertem Y-ConFlange-10-*

und Kabelverschraubung

Material:

Housing

Aluminium

Gehäuse

Flange

PBT, UL94V-0

Flansch

Cable gland

Nylon 6, UL94V-0

Kabelverschraubung

Specifications:

Operating Temp.: -20°C ~ +80°C

Betriebstemp.

Cat 5 rail mounted terminal box for cabinet wiring,

RJ45 / cage clamp incl. Y-ConJack-22

(with power contacts)

Cat 5 Hutschienen-Kabelverteiler für die Schaltschrankverdrahtung.

RJ45 / Klemmanschluss inkl. Y-ConJack-22 (mit 2 Kontakten

für die Stromversorgung)

Specifications:

Operating Temp.: -20°C ~ +80°C

Betriebstemp.

Durability:

1,000 mechanical cycles

Lebensdauer

Current Rating: 2.1A @ 70°C

Bemessungsstrom

(power contacts)

Y-ConOutlet-10

Y-ConOutlet-11

125.0

151.0 approx.

Part Number

Cable Outlet Diameter Size

Y-ConOutlet-10

5.0 to 9.0mm

Y-ConOutlet-11

6.0 to 13.0mm

Series

Design Number

(see table below)

Y-ConOutlet - **

Part Number (Details)

Series

Design Number

Y-ConTerminal -10

Part Number (Details)

Wiring Diagram
