OCTAL BUFFERS/DRIVERS

WITH 3-STATE OUTPUTS

DESCRIPTION

The U74ACT240 is a octal buffers/drivers with 3-state outputs. It

is organized as two 4-bit buffers/drivers with separate output-enable

( OE ) inputs. When OE is high, the Y outputs are in a

high-impedance state, and the outputs neither load nor drive the bus

lines. When OE is low, the device passes inverted data from the a

inputs to the Y outputs.

The U74ACT240 is designed to improve the performance and

density of 3-state memory address drivers, clock drivers, and

bus-oriented receivers and transmitters.

To ensure the high-impedance state during power up or power

minimum value of the resistor is determined by the current-sinking

capability of the driver.

FEATURES

* Inputs accept voltages to 5.5V

* TTL compatible

* ±24 mA output driver at 5.5V

TSSOP-20

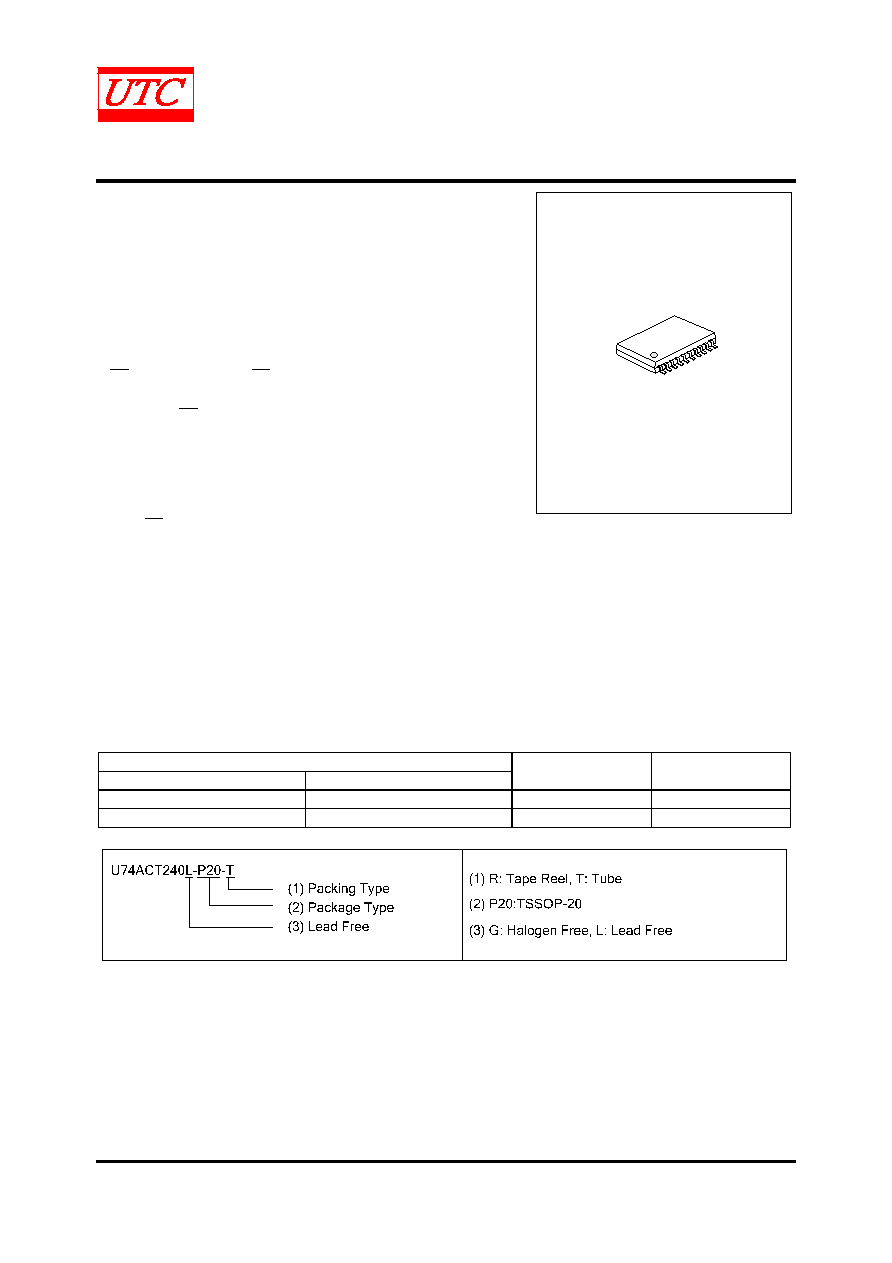

ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

Package

Packing

U74ACT240L-P20-R

U74ACT240G- P20-R

TSSOP-20

Tape Reel

U74ACT240L- P20-T

U74ACT240G- P20-T

TSSOP-20

Tube
