MAT04FS Datasheet(PDF) 5 Page - Analog Devices

Part # MAT04FS
Description  Matched Monolithic Quad Transistor
PDF  12 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

MAT04FS Datasheet(HTML) 5 Page - Analog Devices

  MAT04FS Datasheet HTML 1Page - Analog Devices MAT04FS Datasheet HTML 2Page - Analog Devices MAT04FS Datasheet HTML 3Page - Analog Devices MAT04FS Datasheet HTML 4Page - Analog Devices MAT04FS Datasheet HTML 5Page - Analog Devices MAT04FS Datasheet HTML 6Page - Analog Devices MAT04FS Datasheet HTML 7Page - Analog Devices MAT04FS Datasheet HTML 8Page - Analog Devices MAT04FS Datasheet HTML 9Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 5 / 12 page
background image
MAT04
–5–
REV. D
TPC 1. Current Gain
vs. Collector Current
TPC 4. Base-Emitter-On-Voltage
vs. Collector Current
TPC 7. Saturation Voltage vs.
Collector Current
TPC 2. Current Gain
vs. Temperature
TPC 5. Small Signal Input Resistance
(hie) vs. Collector Current
TPC 8. Noise Voltage Density
vs. Frequency
TPC 3. Gain Bandwidth vs.
Collector Current
TPC 6. Small Signal Output
Conductance vs. Collector Current
TPC 9. Noise Voltage Density
vs. Collector Current

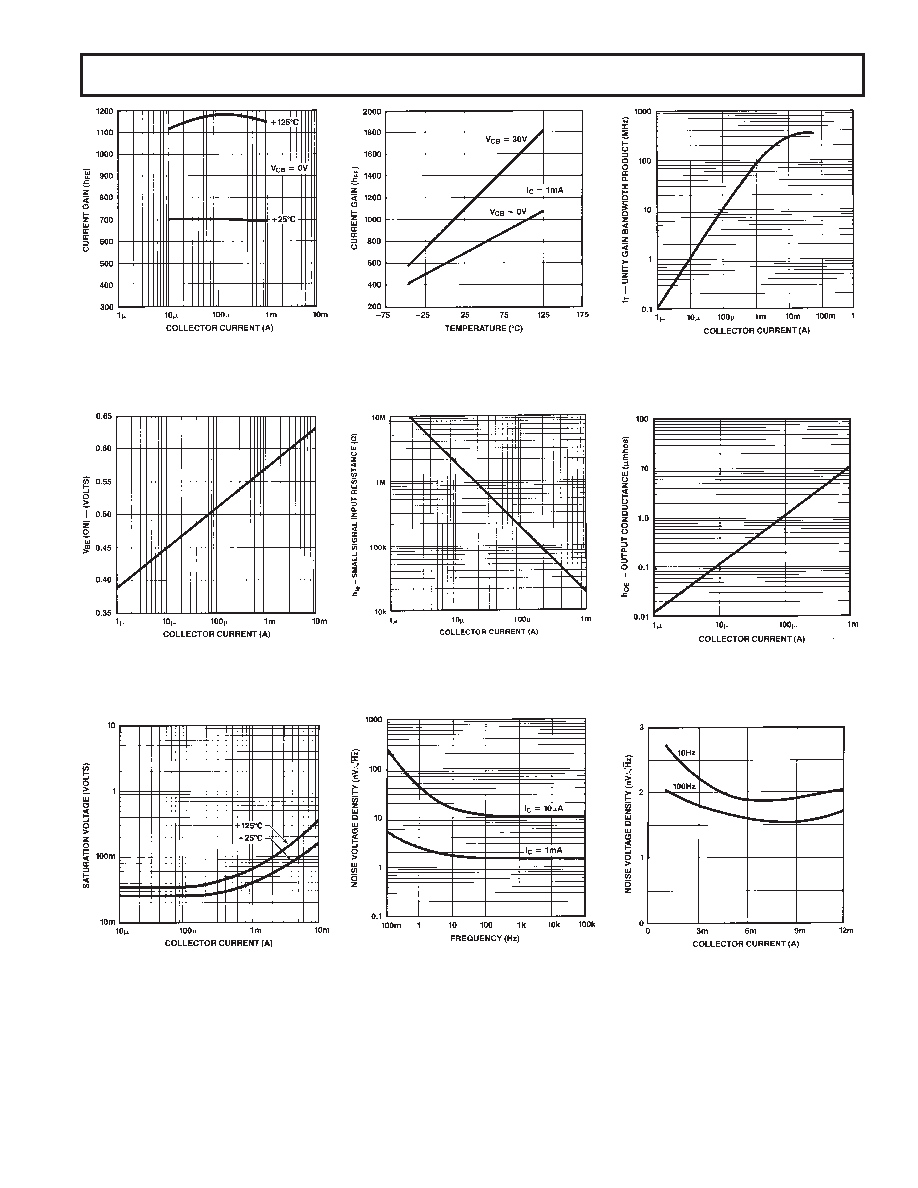

Typical Performance Characteristics–
