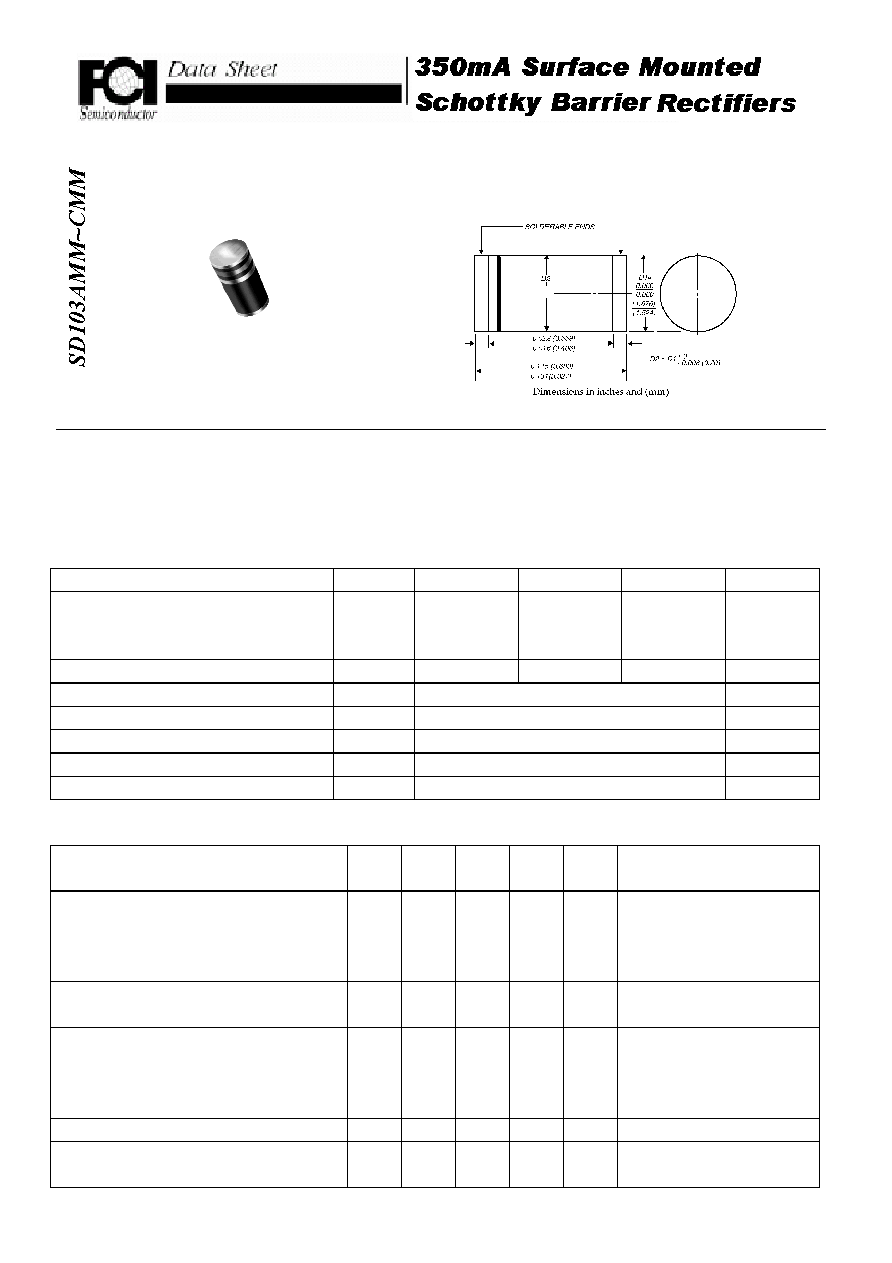

SD103CMM datasheet(1/2 Pages) FCI

Part #	SD103CMM

Description	350 mA Surface Mounted Schottky Barrier Rectifiers Low Forward Voltage Drop

PDF	2 Pages

Scroll/Zoom	100%

Manufacturer	FCI [First Components International]

Direct Link	http://www.cotra.com.tw/

Logo

1 / 2 page

FEATURES

Low Forward Voltage Drop

Guard Ring Construction for Transient Protection

Negligible Reverse Recovery Time

Low Reverse Capacitance

Peak Repetitive Peak reverse voltage

Working Peak

DC Blocking

Voltage

VRRM

VRWM

VR

40

30

20

V

RMS Reverse Voltage

VR(RMS)

28

21

14

V

Forward Continuous Current

IFM

350

mA

Repetitive Peak Forward Current @t≤1.0s

IFRM

1.

0

A

Power Dissipation

Pd

400

mW

Thermal Resistance Junction to Ambient

RθJA

250

℃

/W

Storage temperature

TSTG

-65~+1

75

℃

Electrical Ratings @TA=25

℃

Parameter

Symb

ol

Min.

Typ.

Max.

Unit

Conditions

Reverse Breakdown Voltage

SD103A

MM

SD103B

MM

SD103C

MM

V (BR)R

40

30

20

V

IR=10µA

Forward voltage

VF

0.37

0.60

V

IF=20mA

IF=200mA

Reverse current

SD103A

MM

SD103B

MM

SD103C

MM

IRM

5.0

µA

VR=30V

VR=20V

VR=10V

Capacitance between terminals

CT

50

pF

VR=0V,f=1.0MHz

Reverse Recovery Time

trr

10

ns

IF=IR=50~200mA

Irr=0.1XIR,RL=100Ω

GLASS MINIMELF(DO-213AA)

Maximum Ratings and Electrical Characteristics, Single Diode @TA=25

℃

Parameter

Symbol

SD103A

MM

SD103B

MM

SD103C

MM

Unit

Mechanical Dimension

Description

JEDEC

DO-213AA
