8EWF..S datasheet(7/9 Pages) VISHAY

7 / 9 page

I2124 rev. B 10/99

8EWF..S

QUIET

IR Series

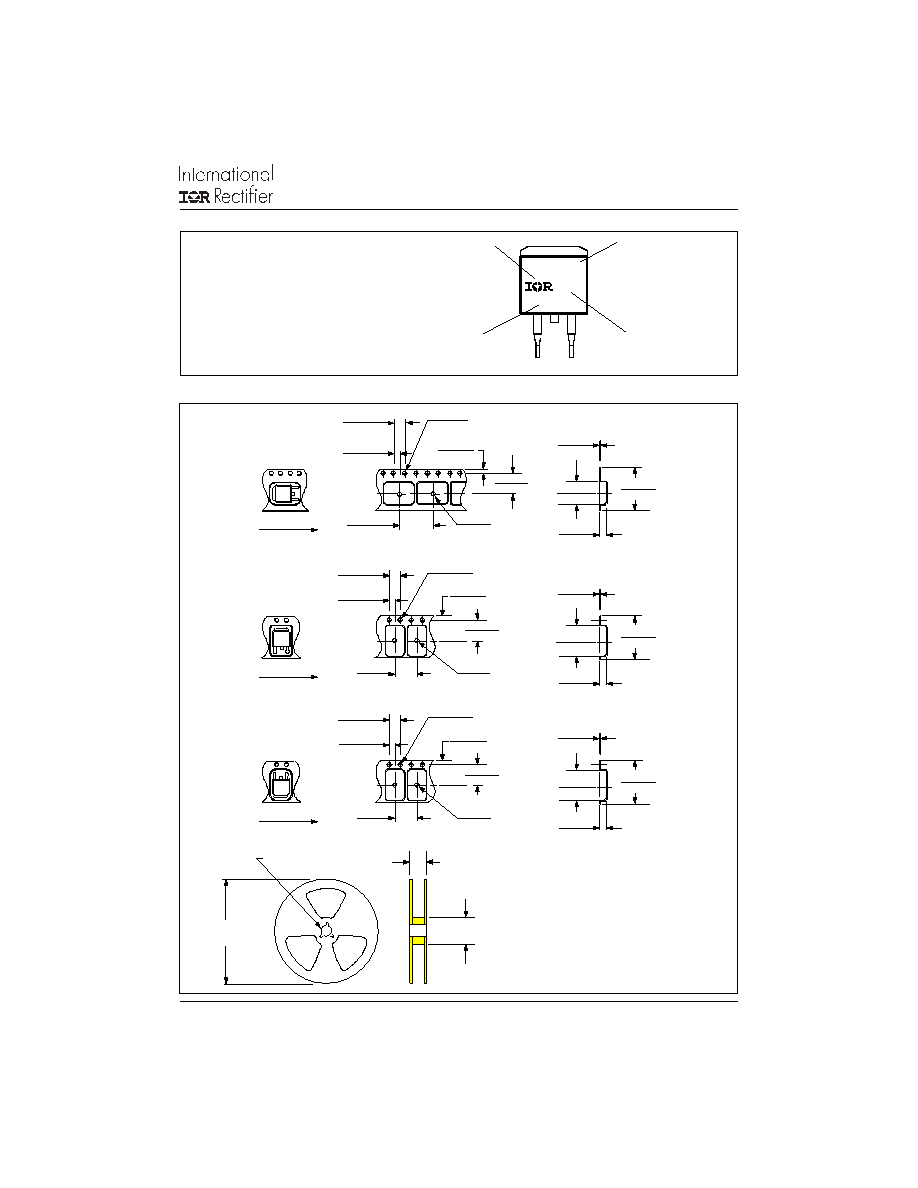

Tape & Reel Information

FEED DIRECTION

4.1 (0.16)

3.9 (0.15)

2.1 (0.83)

1.9 (0.07)

12.1 (0.48)

1.65 (0.06)

1.85 (0.07)

1.65 (0.06)

7.4 (0.29)

2.6 (0.10)

1.5 (0.06)

7.6 (0.30)

11.9 (0.47)

1.85 (0.07)

TO-252AA Tape & Reel

When ordering, indicate the part

number, part orientation, and the

quantity. Quantities are in multiples

of 2,000 pieces per reel for TR and

multiples of 3,000 pieces per reel

for both TRL and TRR.

13 (0.52) DIA.

DIA. MAX.

375 (14.17)

50 (1.97) DIA.

22.4 (0.88)

0.35 (0.01)

16.3 (0.64)

15.7 (0.62)

2.75 (0.11)

2.55 (0.10)

0.25 (0.01)

6.8 (0.26)

7.0 (0.28)

TRR

FEED DIRECTION

4.1 (0.16)

3.9 (0.15)

2.1 (0.83)

1.9 (0.07)

8.1 (0.32)

1.85 (0.07)

1.65 (0.06)

1.85 (0.07)

1.65 (0.06)

7.4 (0.29)

2.6 (0.10)

1.5 (0.06)

7.6 (0.30)

7.9 (0.31)

0.35 (0.01)

16.3 (0.64)

15.7 (0.62)

2.75 (0.11)

2.55 (0.10)

0.25 (0.01)

10.4 (0.41)

10.6 (0.42)

DIA.

TRL

FEED DIRECTION

4.1 (0.16)

3.9 (0.15)

2.1 (0.83)

1.9 (0.07)

8.1 (0.32)

1.85 (0.07)

1.65 (0.06)

1.85 (0.07)

1.65 (0.06)

7.4 (0.29)

2.6 (0.10)

1.5 (0.06)

7.6 (0.30)

7.9 (0.31)

0.35 (0.01)

16.3 (0.64)

15.7 (0.62)

2.75 (0.11)

2.55 (0.10)

0.25 (0.01)

10.4 (0.41)

10.6 (0.42)

DIA.

Marking Information

EXAMPLE: THIS IS AN 8EWF06S

5K3A

8EWF06S

9712

INTERNATIONAL

RECTIFIER LOGO

PART NUMBER

DATE CODE (YYWW)

YY = YEAR

WW = WEEK

ASSEMBLY

LOT CODE

4 (K)

1 (A)

3 (A)

2 (K)
