LMV331-N, LMV339-N, LMV393-N

SNOS018G – AUGUST 1999 – REVISED FEBRUARY 2013

www.ti.com

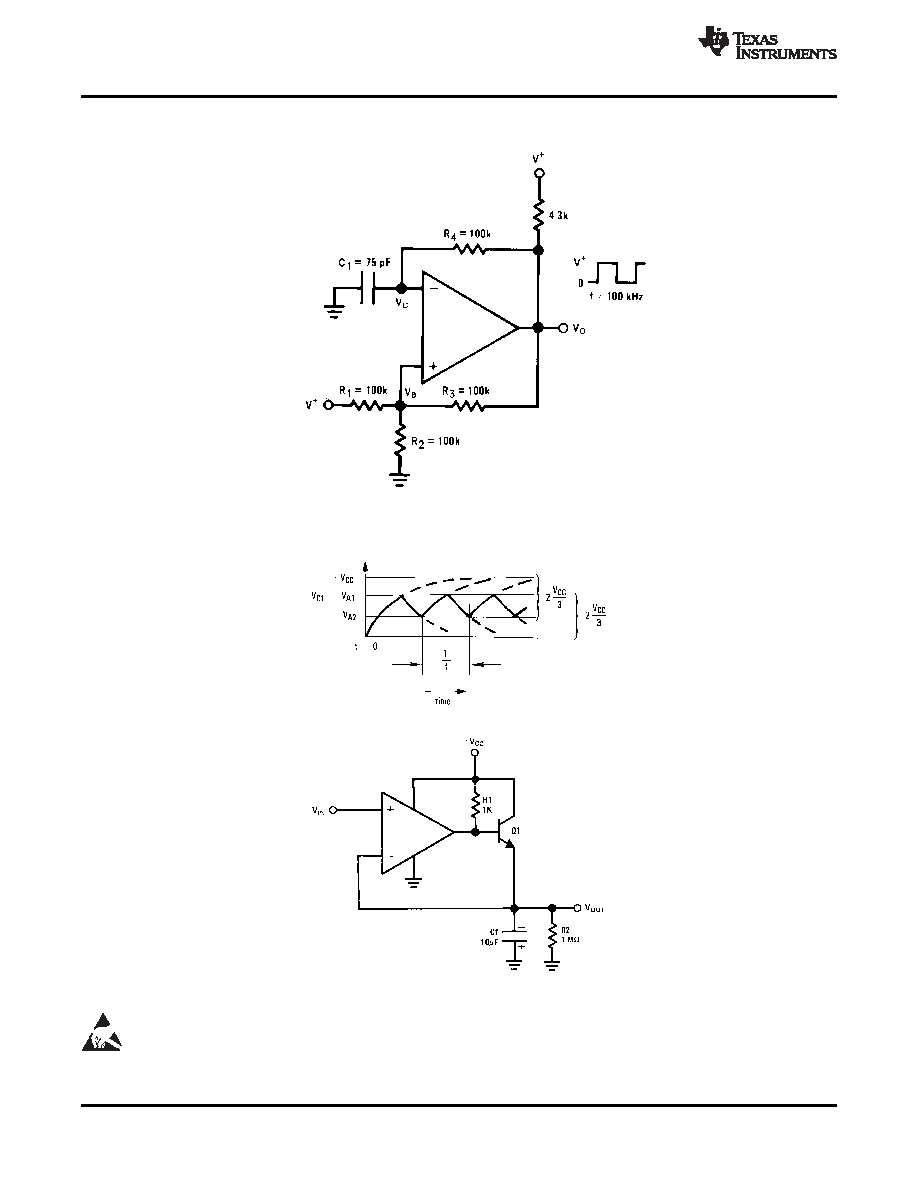

Typical Applications

Figure 1. Squarewave Oscillator

Figure 2. Positive Peak Detector

These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam

during storage or handling to prevent electrostatic damage to the MOS gates.

2

Submit Documentation Feedback

Copyright © 1999–2013, Texas Instruments Incorporated

Product Folder Links: LMV331-N LMV339-N LMV393-N
