SPECIFICATION FOR APPROVAL
DOCUMENT
: SIG3012-XXX
REVISION
: A4
PAGE
: 4 OF 11

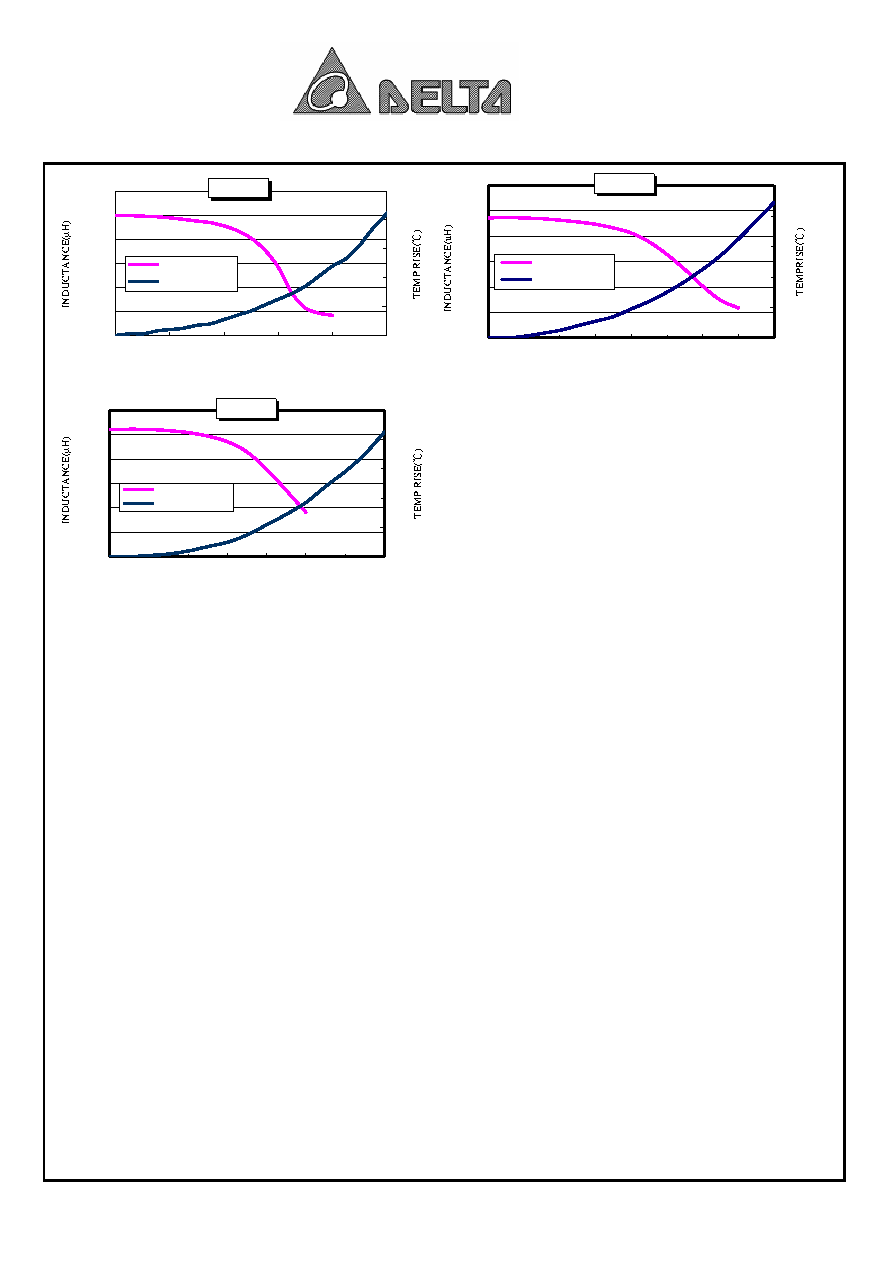

SIG3012-220
0.0
4.5
9.0
13.5
18.0
22.5
27.0
0.0
0.2
0.4
0.6
0.8
1.0
DC BIAS(Amps)
0
20
40
60
80
100
INDUCTANCE(µH)
TEMP RISE(℃)
SIG3012-330
0.0
7.0
14.0
21.0
28.0
35.0
42.0
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
DC BIAS(Amps)
0
20
40
60
80
100
INDUCTANCE(µH)
TEMP.RISE(℃)
SIG3012-470
0.0
9.0
18.0
27.0
36.0
45.0
54.0
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
DC BIAS(Amps)
0
20
40
60
80
100
INDUCTANCE(µH)
TEMP.RISE(℃)
