ADSP-21065L Datasheet(PDF) 21 Page - Analog Devices

Part # ADSP-21065L
Description  DSP Microcomputer
PDF  44 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADSP-21065L Datasheet(HTML) 21 Page - Analog Devices

Back Button ADSP-21065L Datasheet HTML 17Page - Analog Devices ADSP-21065L Datasheet HTML 18Page - Analog Devices ADSP-21065L Datasheet HTML 19Page - Analog Devices ADSP-21065L Datasheet HTML 20Page - Analog Devices ADSP-21065L Datasheet HTML 21Page - Analog Devices ADSP-21065L Datasheet HTML 22Page - Analog Devices ADSP-21065L Datasheet HTML 23Page - Analog Devices ADSP-21065L Datasheet HTML 24Page - Analog Devices ADSP-21065L Datasheet HTML 25Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 21 / 44 page
background image
REV. C
ADSP-21065L
–21–
CLKIN
ADDRESS
SW
ACK
RD
DATA
(OUT)
WR
WRITE ACCESS
tSADRI
tHADRI
tDACK
tACKTR
tRWHPI
tHRWLI
tSRWLI
tSDDATO
tDATTR
tSRWLI
tHRWLI
tRWHPI
tHDATWH
tSDATWH
DATA
(IN)
READ ACCESS

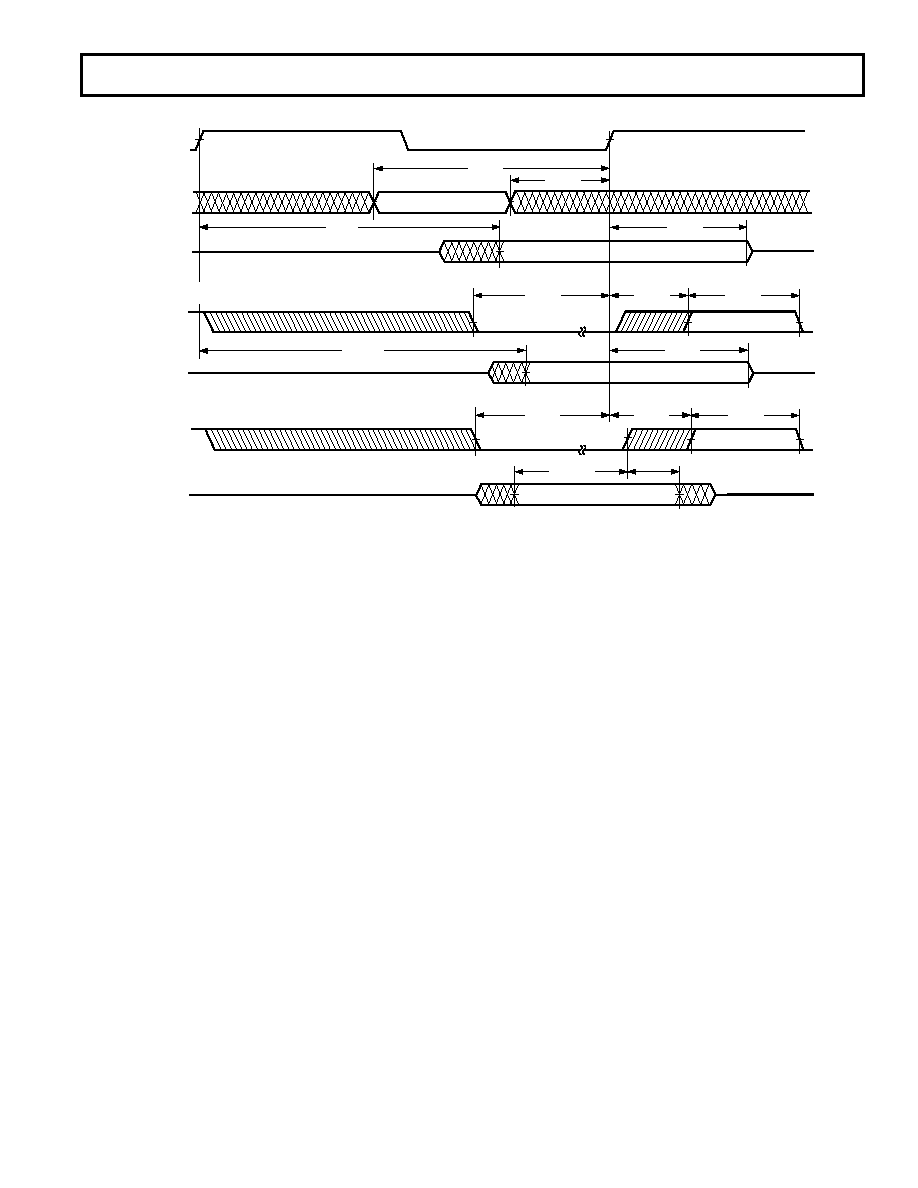

Figure 14. Synchronous Read/Write—Bus Slave
