MP3360

Highly Integrated Photo Flash Charger

and IGBT Driver

MP3360 Rev. 0.9

www.MonolithicPower.com

1

1/29/2010

MPS Proprietary Information. Unauthorized Photocopy and Duplication Prohibited.

© 2010 MPS. All Rights Reserved.

The Future of Analog IC Technology

DESCRIPTION

The MP3360 is a fast, highly efficient and

precision high voltage photo-flash charger for

camera phone xenon flash.

The MP3360 has programmable peak currents

of

1.5A/1.4A/1.3A/1.2A/1.1A/1.0A/0.9A/0.8A

/0.75A/0.7A/0.65A/0.6A/0.55A/0.5A/0.45A/0.4A.

A 60V, 0.5Ω internal power switch lowers

transformer turns ratio and switching losses

associated with the primary leakage inductance

and winding capacitance. Integrated secondary

feedback resistors provide +/-2.5% output

voltage charge accuracy. MP3360 also has an

integrated IGBT driver with a regulated 2.7V

gate voltage.

MP3360 is available in the 10-pin, 2X2 flip chip

package.

FEATURES

•

Integrated 60V, 0.5

Ω Power Switch

•

Single wire digital interface for current limit

programming.

•

2.5% Charge Accuracy

•

<1uA Shutdown Current

•

Integrated IGBT Driver with Regulated Gate

Voltage

APPLICATIONS

•

Mobile Phones with Xeon Flash

•

Digital Still Cameras

•

Optical Film Cameras

•

PDAs with Xeon Flash

“MPS” and “The Future of Analog IC Technology” are Registered Trademarks of

Monolithic Power Systems, Inc.

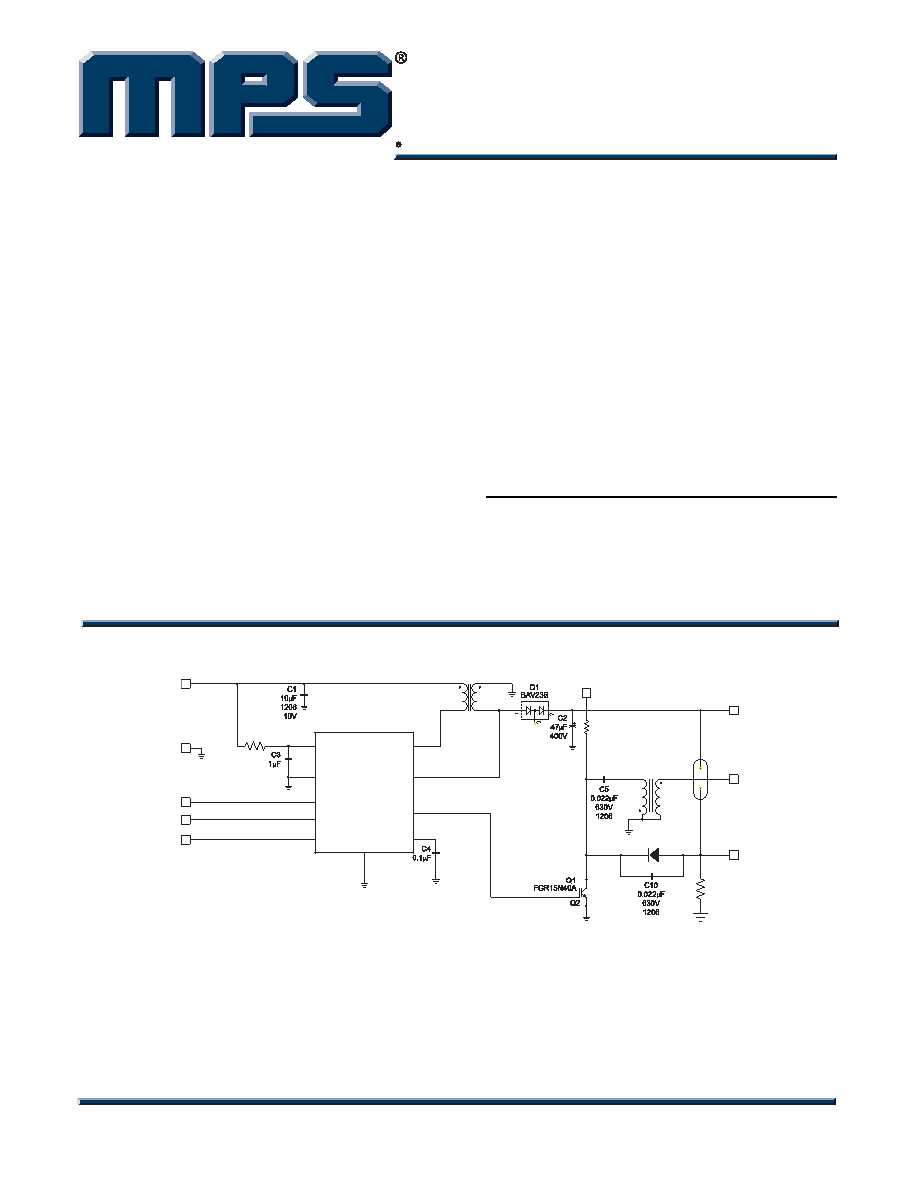

TYPICAL APPLICATION

4

9

8

6

1

10

5, 6, 7, 8

1, 2, 3

2

5

MP3360

FB

IGBTOUT

VIGBT

PGND

IGBTIN

CHG

CHAG

AGND

GND

TP6

TP8

TP9

Xenon Flash

VIN

VIN

SW

T1

T2

3

6

1

13

2

4

3

7

4

RDYB

RDYB

IGBTIN

TP7

R2

499k

1206

600V/1A

R3

1M

1206

U1

R1

10
