API8208 Datasheet(PDF) 6 Page - Aplus Intergrated Circuits

Part # API8208
Description  VERSATILE 20 SEC INSTANT VOICE ROM
PDF  10 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  APLUS [Aplus Intergrated Circuits]
Direct Link  http://www.aplusinc.com.tw
Logo APLUS - Aplus Intergrated Circuits

API8208 Datasheet(HTML) 6 Page - Aplus Intergrated Circuits

Back Button API8208 Datasheet HTML 2Page - Aplus Intergrated Circuits API8208 Datasheet HTML 3Page - Aplus Intergrated Circuits API8208 Datasheet HTML 4Page - Aplus Intergrated Circuits API8208 Datasheet HTML 5Page - Aplus Intergrated Circuits API8208 Datasheet HTML 6Page - Aplus Intergrated Circuits API8208 Datasheet HTML 7Page - Aplus Intergrated Circuits API8208 Datasheet HTML 8Page - Aplus Intergrated Circuits API8208 Datasheet HTML 9Page - Aplus Intergrated Circuits API8208 Datasheet HTML 10Page - Aplus Intergrated Circuits
Zoom Inzoom in Zoom Outzoom out
 6 / 10 page
background image
6

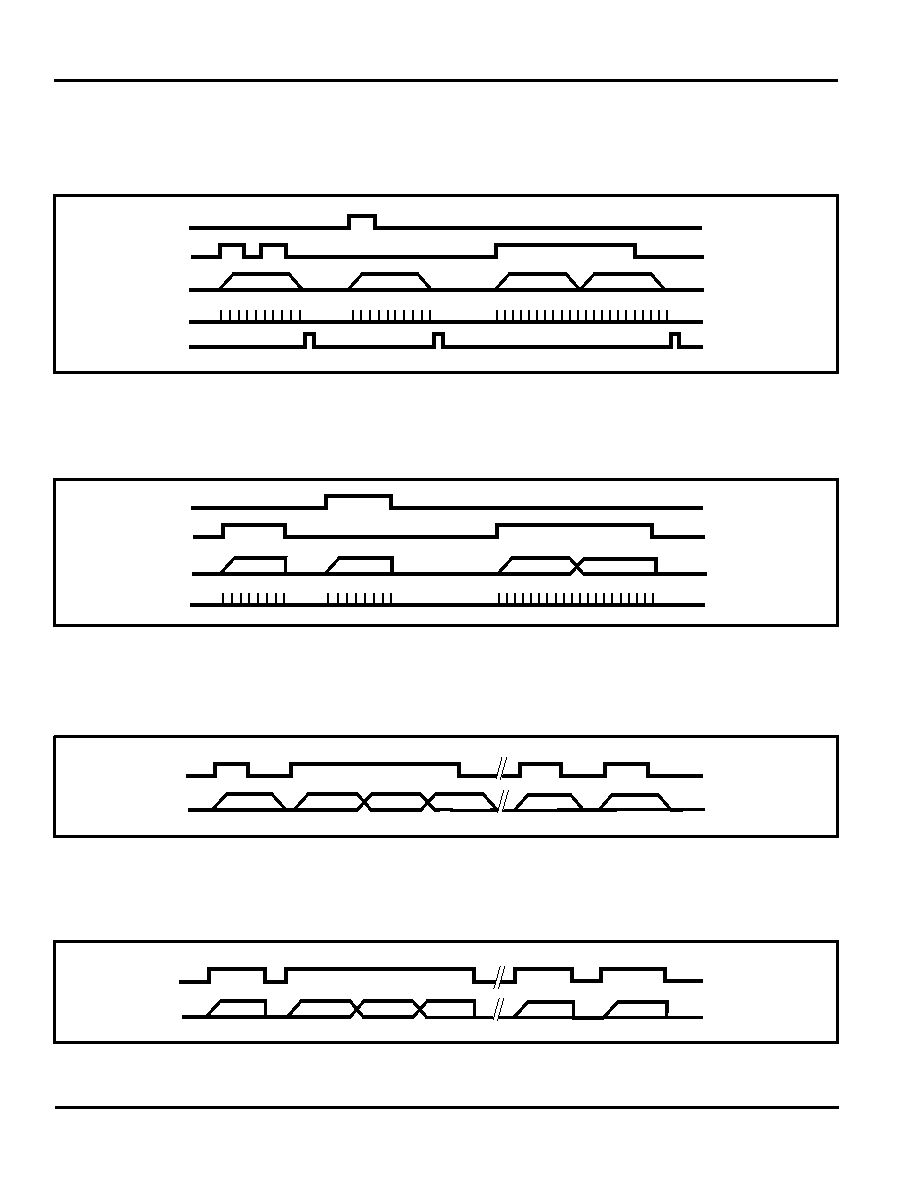

TIMING WAVEFORMS
1. Level, Unholdable, Non-retriggerable
a. Trigger is shorter than a Group output
b. Trigger is longer than a Group output
2. Level Holdable
a. Trigger is shorter than a Group output
b. Trigger is longer than a Group output
3. Single Button Trigger (SBT), Sequential
a. Level Unholdable
TG1
Group 2
TG2
COUT
LED
STP
Group 1
Group 2
Group 2
TG1
Group 2
TG2
COUT
LED
Group 1
Group 2
Group 2
Group 1
SBT
COUT
Group 2
Group 2
Group 2
Group N
Group 1
Group 1
SBT
COUT
Group 2
Group 2
Group 2
Group N
Group 1
Where N is up to 8.
b. Level Holdable
APLUS
