8
APPLICATION CIRCUITS
Vcc
GND
TG1
TG2
TG3
TG4
TG5
TG6
TG7
TG8
SBT
IRP
OSC
COUT
SP
ROSC
Vcc
GND
SBT
IRP
OSC
COUT
SP
ROSC
Vcc
GND
SBT
IRP
OSC
ROSC
COUT
STP

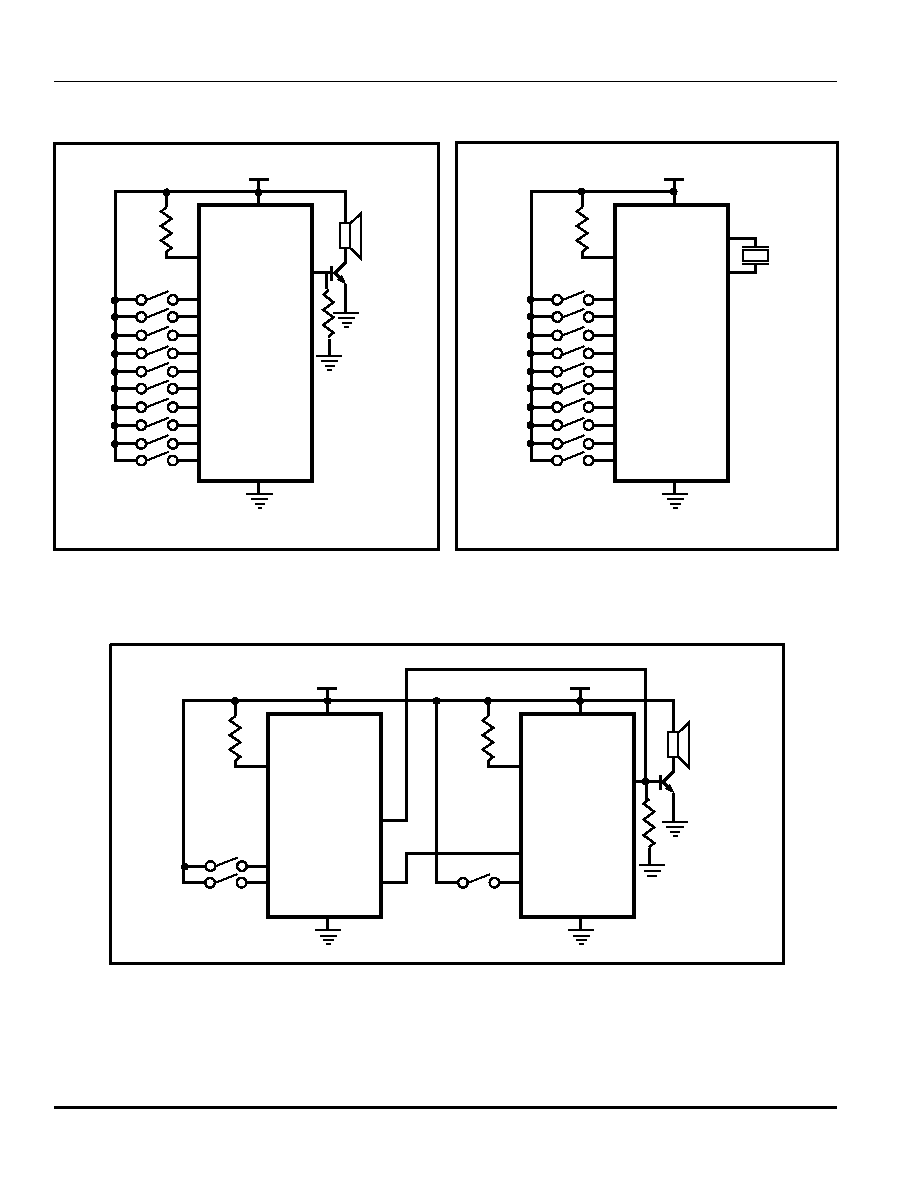

Figure 1. Typical Application with Speaker
Figure 3. Cascade Application
Figure 2. Typical Application with Piezo Buzzer
Vcc
GND
TG1
TG2
TG3
TG4
TG5
TG6
TG7
TG8
SBT
IRP
OSC
VOUT2
ROSC
VOUT1
PIEZO
BUZZER
APLUS
API840N
R
R
