Programmable Options

The API840N provides different control functions for user

specified applications. They include:

* Non-sequential or Sequential Play-all

* Unholdable or Holdable trigger

* STOP or BUSY signal selection

* Automatic ramp-up/ramp-down or no ramp-up/ramp-down

OSCILLATOR

OSC

CLOCK

GENERATOR

CONTROL

LOGIC

TG1

TG8

SBT

IRP

LED

DRIVER

LED2

LED1

STP

POP NOISE

REDUCTION

ADDRESS

SEQUENCER

VOICE

EPROM

ADPCM

DECODER

BUZZER

BUFFER

D/A

GND

Vcc

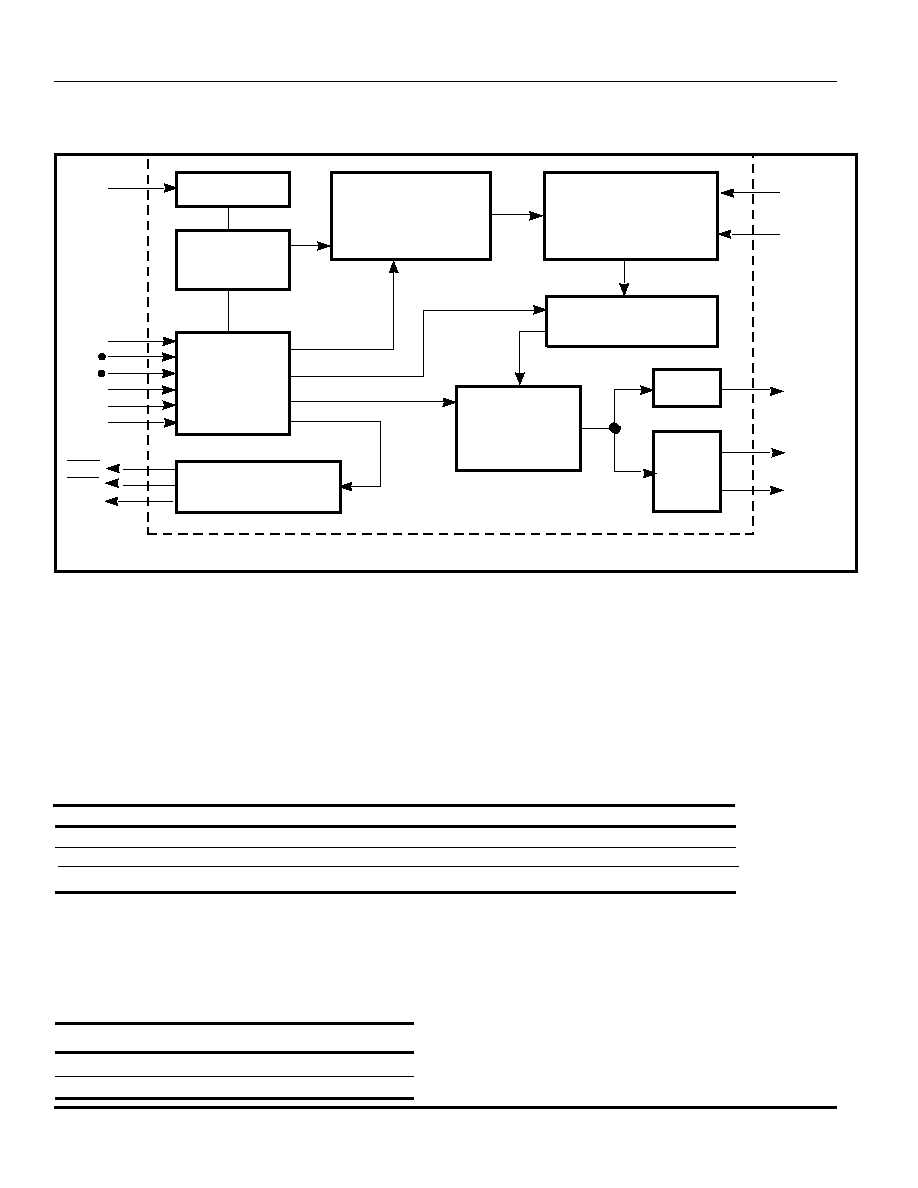

BLOCK DIAGRAM

OPERATING RANGE

Range

Ambient Temp.

Vcc

Commercial

0

°C to +70°C

3.0V to 5.0V

Industrial

-40

°C to +85°C

3.0V to 5.0V

Symbol

Parameter

Value

Unit

Terminal Voltage with Respect to GND

-0.5 to +7.0

V

Temperature Under Bias

-40 to +85

°C

Storage Temperature

-55 to +125

°C

Notes:

1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the

device. This is a stress rating only and functional operation of the device at these or any other conditions above

those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum

rating conditions for extended periods may affect reliability.

Silence Compression

If a particular sound sequence includes periods of silence,

the API840N will automatically compress the silence to

save memory space. This compression will not affect

playback of the sound sequence.
