TS3420

2A, 1.25MHz Synchronous Buck Converter

6/9

Version: A12

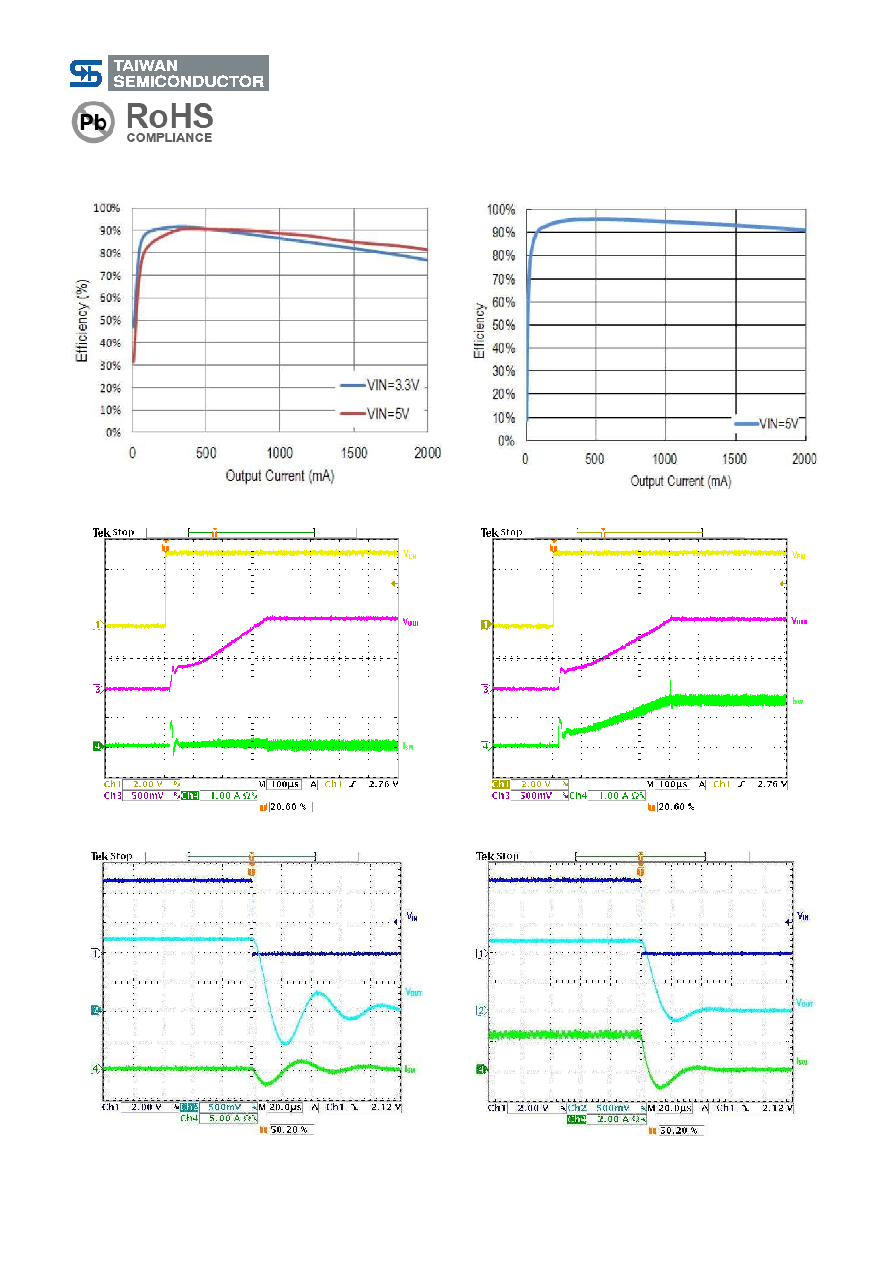

Electrical Characteristics Curve

Figure 7. Frequency vs. Temperature

Figure 8. Efficiency vs. Output Current

Figure 9. VIN = 5V, VOUT = 1.2V, No Load

Figure 10. VIN = 5V, VOUT = 1.2V, RLOAD=0.5ohm

Figure 11. VIN = 3.3V, VOUT = 1.2V, No Load

Figure 12. VIN = 5V, VOUT = 1.2V, RLOAD=0.5ohm
