18N25
Power MOSFET
UNISONICTECHNOLOGIESCO.,LTD
4 of 5
www.unisonic.com.tw
QW-R502-786.B

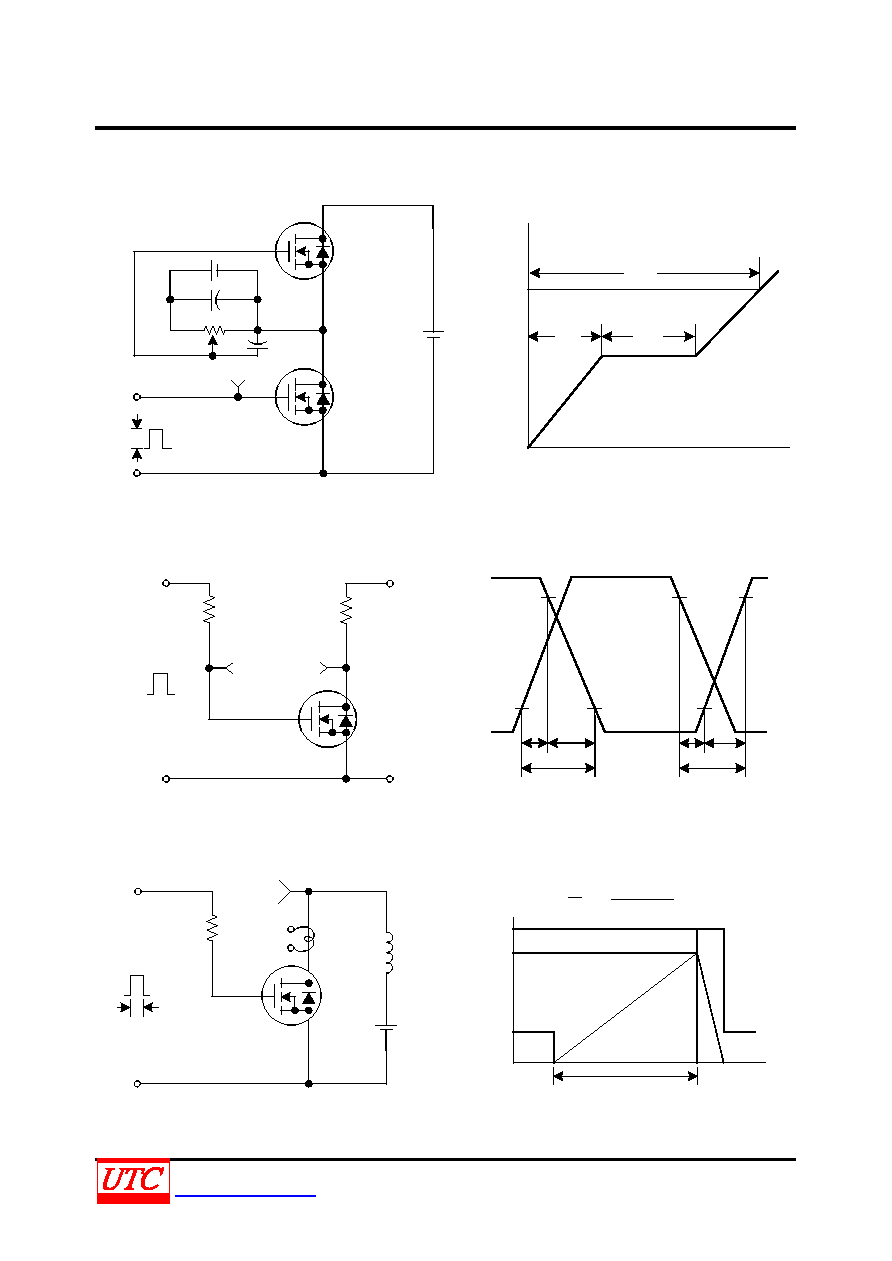

TEST CIRCUITS AND WAVEFORMS(Cont.)
Gate Charge
50k
Ω
300nF
DUT
VDS
10V
12V
Charge
QGS
QGD
QG
VGS
VGS
200nF
Same Type
as DUT
3mA
Test Circuit
Waveforms
Resistive Switching
VGS
DUT
RG
VDS
RD
VDS
VGS
90%
10%
td(ON) tR
tF
td(OFF)
10V
tON
tOFF
VDD
Test Circuit
Waveforms
Unclamped Inductive Switching
10V
tP
RG
DUT
L
VDS
ID
VDD
tP
VDD
IAS
BVDSS
ID(t)
VDS(t)
Time
EAS= 2
1 LI
AS
2
BVDSS
BVDSS-VDD
Test Circuit
Waveforms
