820-IF70.0M-R Datasheet(PDF) 2 Page - Oscilent Corporation

Part #	820-IF70.0M-R

Description	70.0MHz IF SAW Filter 0.3 MHz Bandwidth

PDF	4 Pages

Scroll/Zoom	100%

Manufacturer	OSCILENT [Oscilent Corporation]

Direct Link	http://www.oscilent.com

Logo

2 / 4 page

Oscilent Part Number

820-IF70.0M-R

January 2011 Rev A

70.0MHz IF SAW Filter 0.3 MHz Bandwidth

Product Specification

P. 1

www.oscilent.com

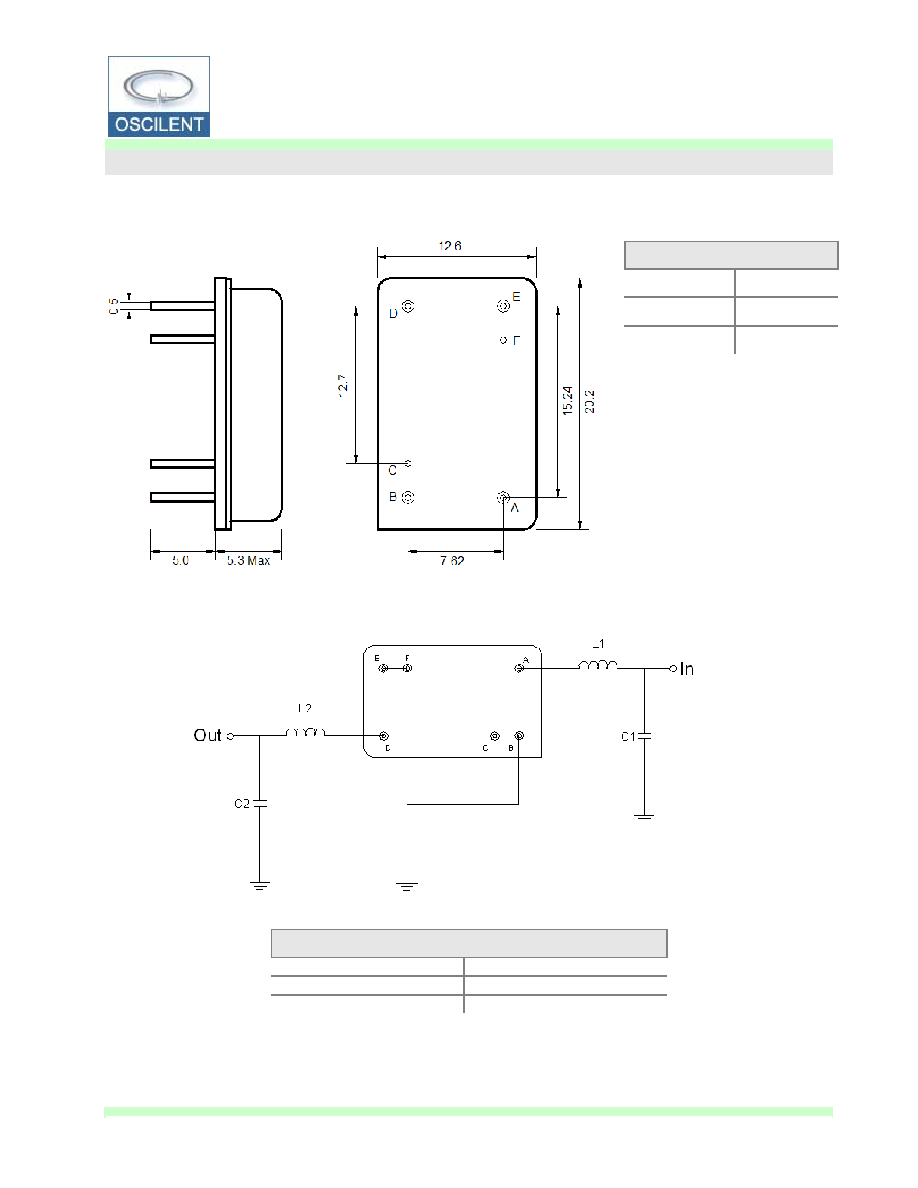

Mechanical Dimensions (mm)

Test Circuit

Pin Description

B, C, E, F Ground

A Input

D Output

Test Fixture & Values

Input L1 = 180 nH, C1 = 62pF

Output L2 = 180 nH, C2 = 62pF

Source/Load Impedance 50 Ω
