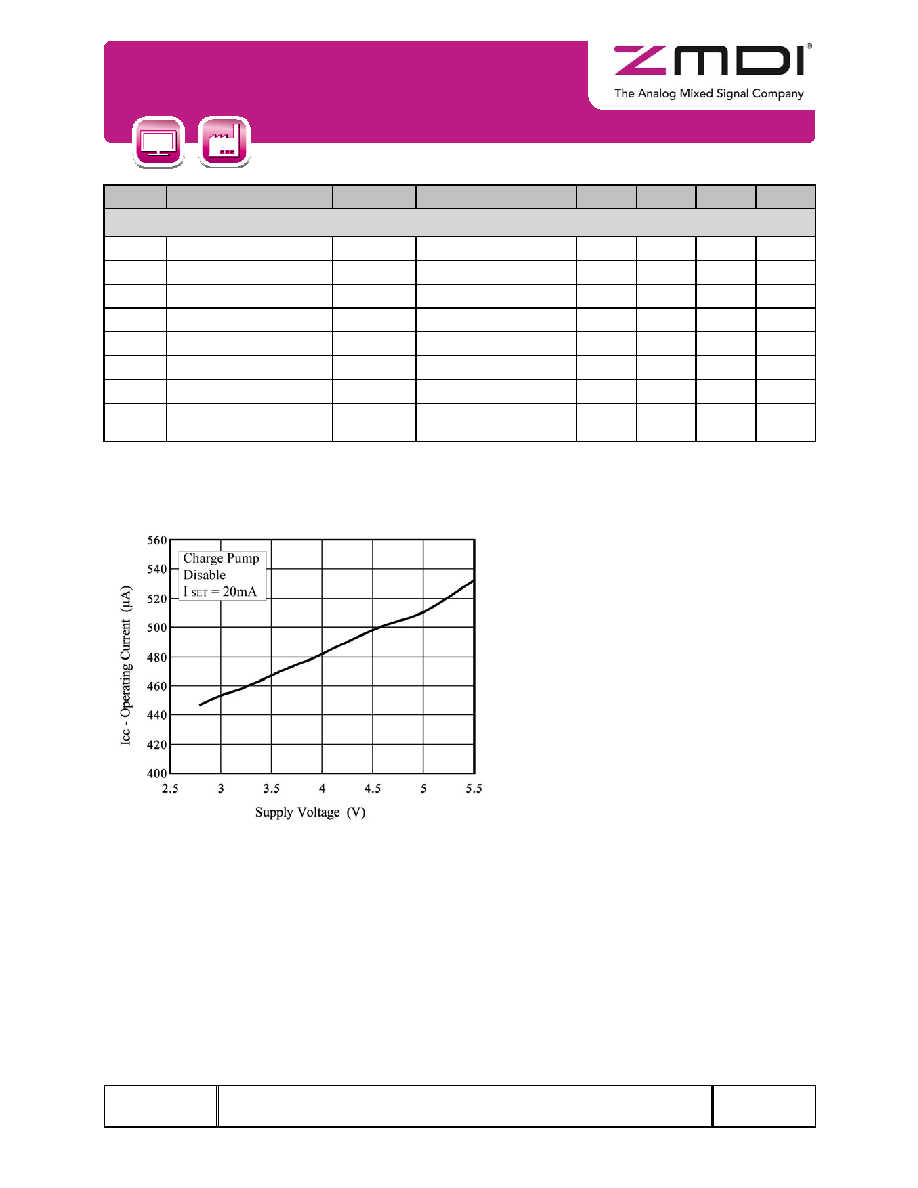

background image
ZLED7012
Low-Voltage Four-Channel LED Driver
Data Sheet
November 9, 2010
© 2010
Zentrum Mikroelektronik Dresden AG — Rev. 1.0
All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without
the prior written consent of the copyright owner. The information furnished in this publication is subject to changes without notice.
7 of 15
No.
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNIT
EN/SET Input (PCC Serial Digital Interface)
1.3.6
Enable threshold low
VEN_L
VCC = 2.8V
0.4
V
1.3.7
Enable threshold high
VEN_H
VCC = 5.5V
1.4
V
1.3.8
EN/SET low time
TEN/SET_LO
0.3
75
μs
1.3.9
Minimum EN/SET high time TEN/SET_HI_MIN
50
ns
1.3.10
Maximum EN/SET high time TEN/SET_HI_MAX
75
μs
1.3.11
EN/SET off timeout *
TOFF
500
μs
1.3.12
EN/SET latch timeout *
TLAT
500
μs
1.3.13
Internal EN/SET pull-down
resistor
REN/SET_DOWN
500
kΩ
1.4.
Typical Performance Graphs
Figure 1.1
Operating Current ICC over Supply Voltage VCC Range (2.8V to 5.5V) at 25°C
