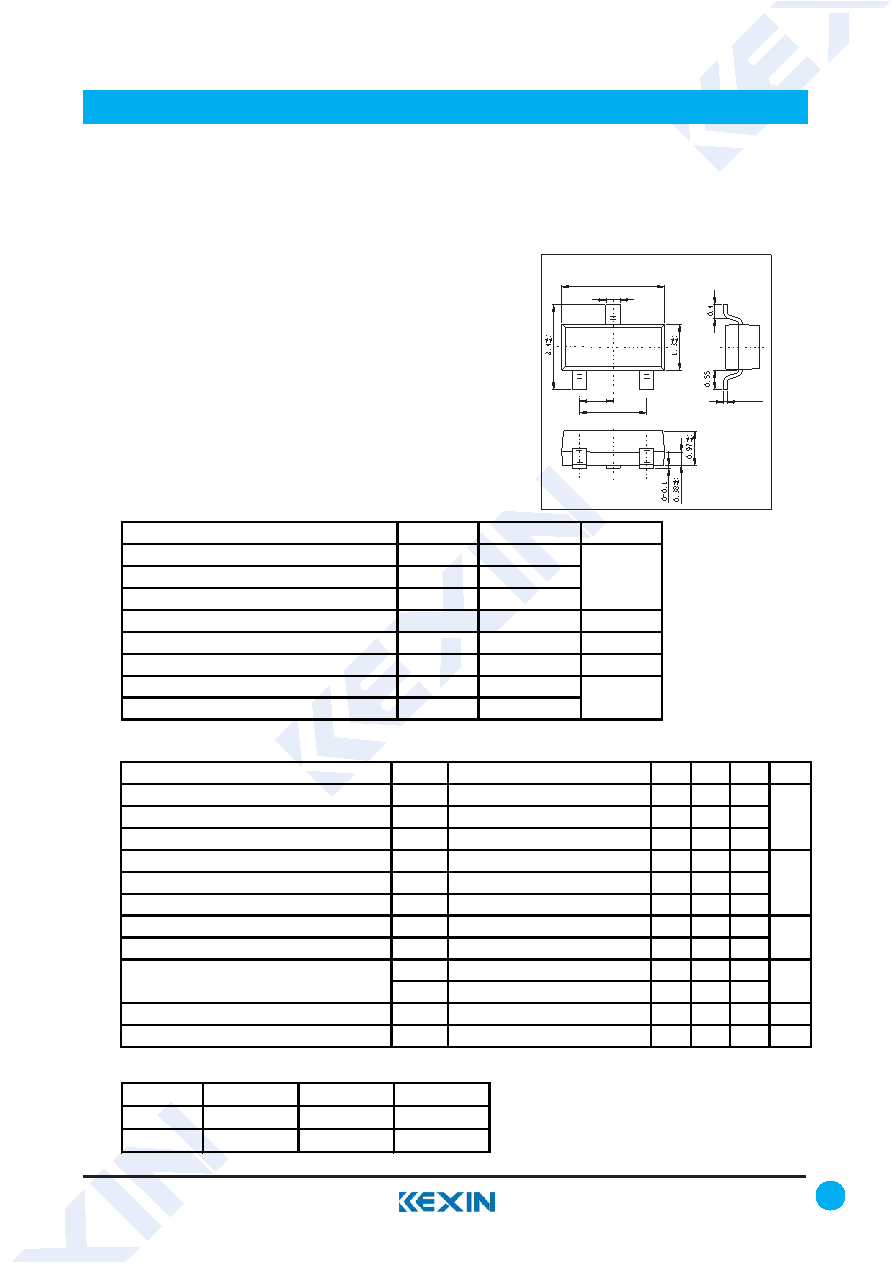

SMD Type

www.kexin.com.cn

1

Transistors

■

Features

●

High hFE

●

Low VCE(sat)

●

For general amplification

●

Complimentary to 2SB709A-HF

0.4 +0.1

-0.1

2.9 +0.1

-0.1

0.95 +0.1

-0.1

1.9 +0.1

-0.1

1.Base

2.Emitter

3.collector

1

2

3

Unit: mm

SOT-23

0.1 +0.05

-0.01

■

Absolute Maximum Ratings Ta = 25℃

Parameter

Symbol

Rating

Unit

Collector - Base Voltage

VCBO

60

Collector - Emitter Voltage

VCEO

50

Emitter - Base Voltage

VEBO

7

Collector Current - Continuous

IC

100

mA

Collector Power Dissipation

PC

200

mW

Thermal Resistance from Junction to Ambient

RΘJA

625

℃

/W

Junction Temperature

TJ

150

Storage Temperature Range

Tstg

-55 to 150

V

℃

■

Electrical Characteristics Ta = 25℃

Parameter

Symbol

Test Conditions

Min

Typ

Max

Unit

Collector- base breakdown voltage

VCBO

Ic= 100 μA， IE= 0

60

Collector- emitter breakdown voltage

VCEO

Ic= 2 mA， IB= 0

50

Emitter - base breakdown voltage

VEBO

IE= 100μA， IC= 0

7

Collector-base cut-off current

ICBO

VCB= 50 V , IE= 0

0.1

Collector-emitter cut-off current

ICEO

VCE= 30 V , IB= 0

100

Emitter cut-off current

IEBO

VEB= 5V , IC=0

0.1

Collector-emitter saturation voltage

VCE(sat) IC=100 mA, IB=10mA

0.3

Base - emitter saturation voltage

VBE(sat) IC=100 mA, IB=10mA

1.2

hFE(1)

VCE= 2V, IC= 100mA

90

hFE(2)

VCE= 10V, IC= 2mA

160

460

Collector output capacitance

Cob

VCB= 10V, IE=0,f=1MHz

3.5

pF

Transition frequency

fT

VCE= 10V, IC= 2mA,f=200MHz

150

MHz

DC current gain

V

uA

V

■

Classification of hfe(2)

Type

2SD601A-Q-HF 2SD601A-R-HF 2SD601A-S-HF

Range

160-260

210-340

290-460

Marking

ZQ F

ZR F

ZS F

●

Pb−Free Package May be Available. The G−Suffix Denotes a

Pb−Free Lead Finish

NPN Transistors

2SD601A-HF
