3G Cellular Dual-band Omni-directional Antenna

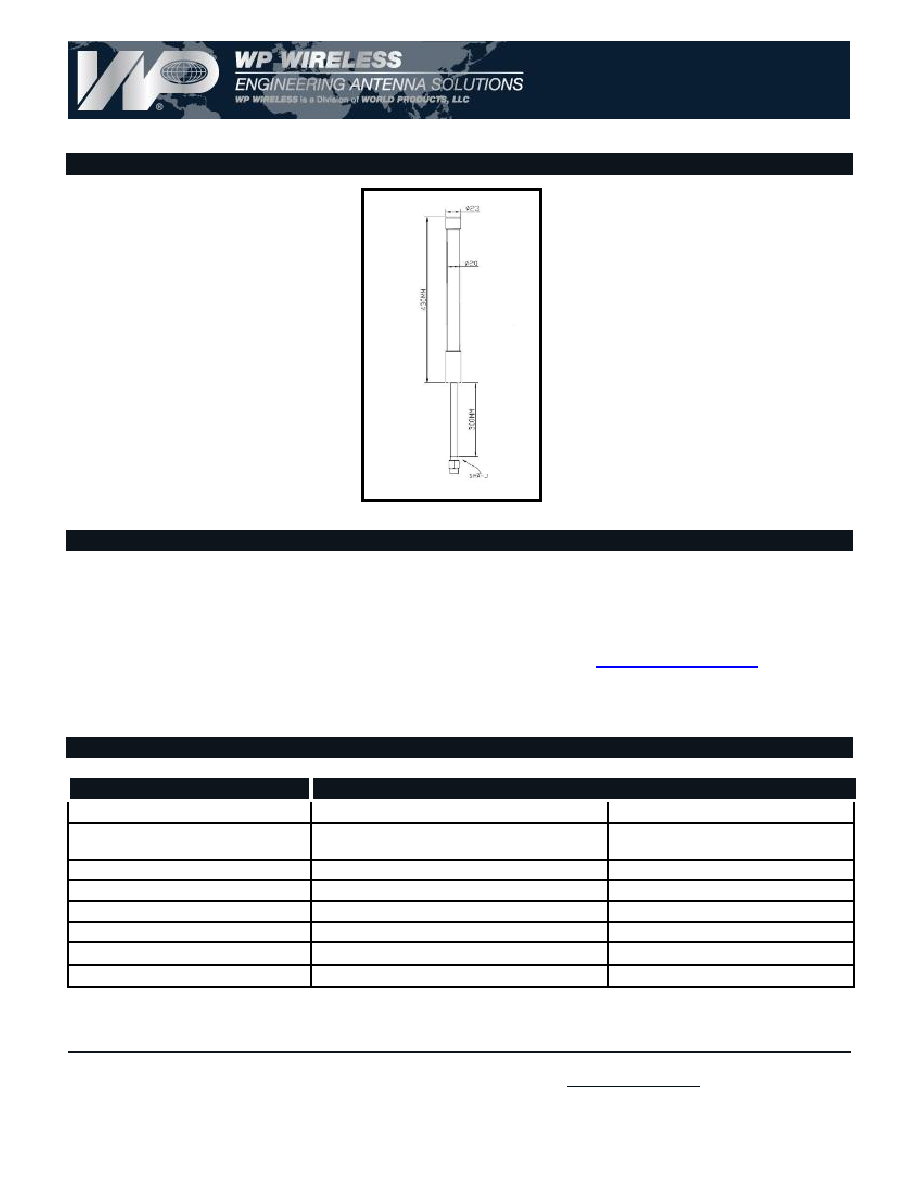

Picture of the Antenna (Drawing)

Application

The WPANTDP066-R1A is a high gain Omni-directional Pole/Wall mount antenna that operates in both, 824

– 960

MHz & 1850

– 1990 MHz, cellular bands. It comes with a 300mm long cable and SMA male connector. The antenna

is at DC ground to ensure protection against lightning.

WP Wireless can assist your engineers to optimize mounting positions for these antennas in your specific application

and can further customize the antennas for your specific needs. Please contact sales@wp-wireless.com with your

specific application requirements.

Electrical Properties

Parameter

Antenna Performance

Operating Frequency

824

– 960 MHz

1850

– 1990 MHz

Recommended Impedance of the

customer Radio Module[

]

50Ω

50Ω

VSWR - Typical

<2:1

<2:1

Peak Gain [dBi] (Typical)

5

– 6 dBi

5

– 6 dBi

Polarization

Vertical

Vertical

Pattern

Omni-Directional

Omni-Directional

Accepted Power [W] (Max)

50 Watts

50 Watts

Lightning Protection

DC ground

DC ground
