Automotive GPS & FM Dual band Antenna

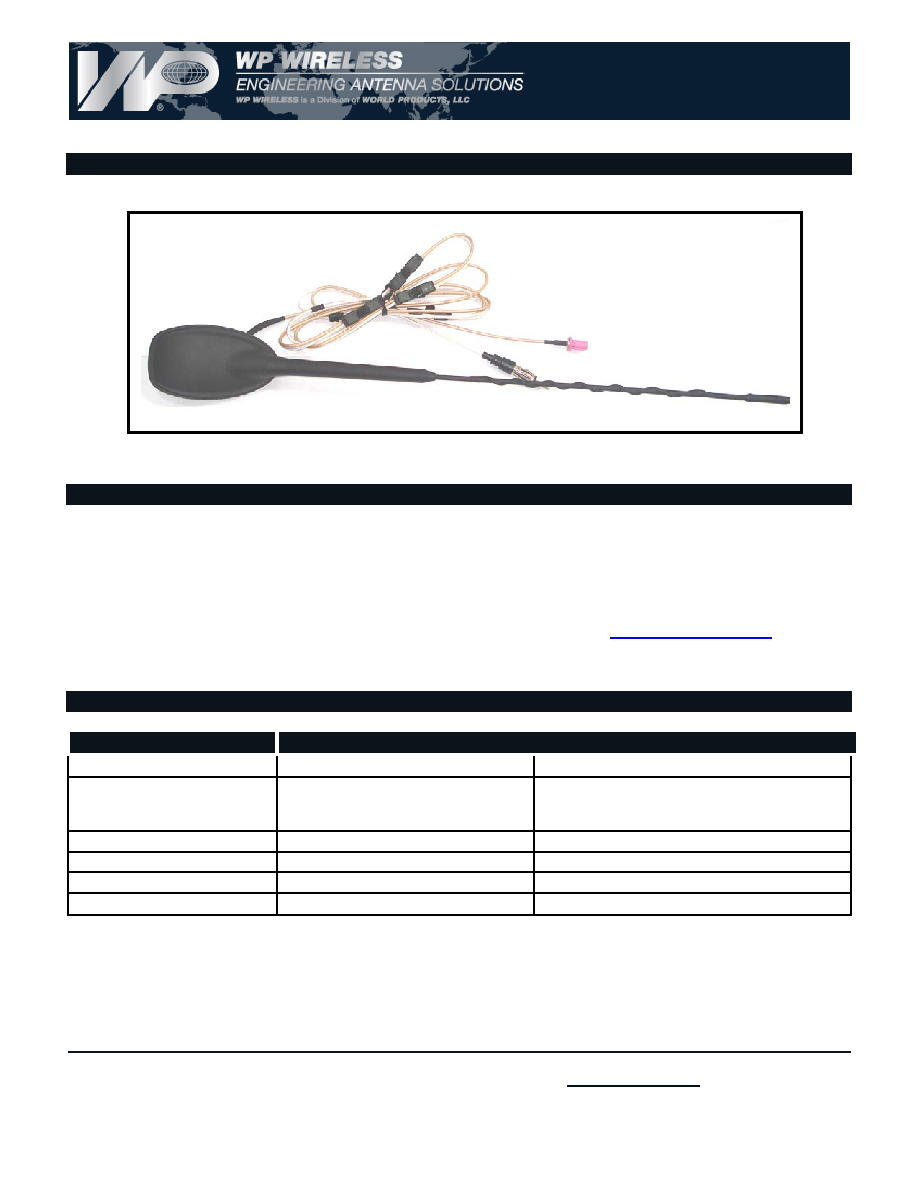

Picture of the Part

Application

The WPANTDP069-R1A antenna is an L1 band GPS and FM Dual Antenna for automobile applications. The

standard cable length for this antenna is 1755 mm and the standard connector is FAKRA for GPS and DIN41585 for

FM.

WP Wireless can assist your engineers to optimize mounting positions for these antennas in your specific application

and can further assist to trouble shoot system integration issues such as TRP/TIS and FCC requirements. WP

Wireless specializes in developing customized Antenna solutions. Please contact sales@wp-wireless.com with your

specific application requirements.

Electrical Properties

Parameter

Antenna Performance

Operating Frequency

88 – 108 MHz

1575 – 1615 MHz

Recommended Impedance

of the customer Radio

Module[

Ω]

75

Ω

50Ω

VSWR – Typical

<2:1

<2:1

Peak Gain [dBi] (Typical)

10 dBi

30 dBi

Polarization

Linear

RHCP

Accepted Power [W] (Max)

2 Watts

2 Watts
