Automotive GPS / GSM / FM Tri-band Antenna

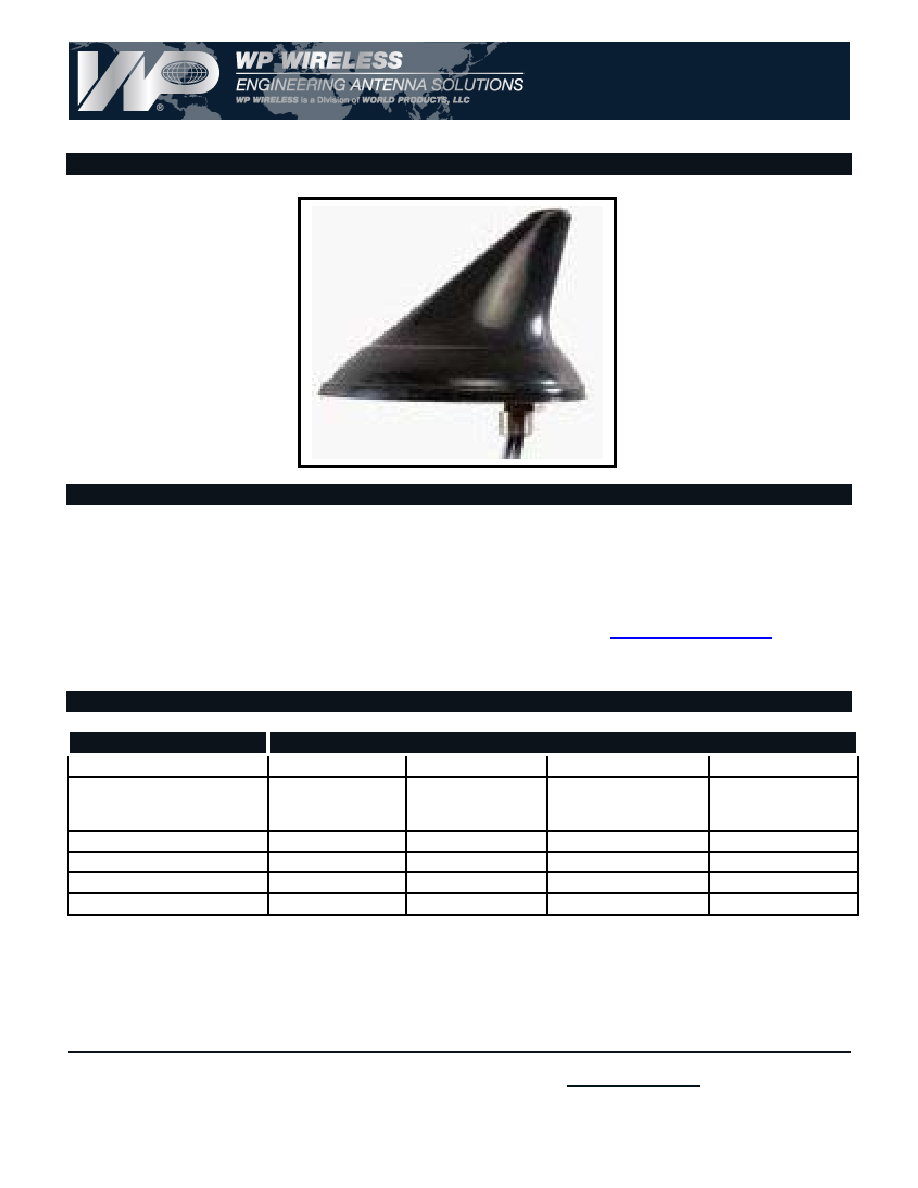

Picture of the Part

Application

The WPANTDP070-R1A antenna is an L1 band GPS, GSM and FM Antenna for automobile applications. The

standard cable length for this antenna is 3 meters and the standard connector is SMA. It can be also configured for

different cable lengths and connectors.

WP Wireless can assist your engineers to optimize mounting positions for these antennas in your specific application

and can further assist to trouble shoot system integration issues such as TRP/TIS and FCC requirements. WP

Wireless specializes in developing customized Antenna solutions. Please contact sales@wp-wireless.com with your

specific application requirements.

Electrical Properties

Parameter

Antenna Performance

Operating Frequency

88 – 108 MHz

824 – 960 MHz

1567 – 1583 MHz

1710 – 1990 MHz

Recommended Impedance

of the customer Radio

Module[

Ω]

50

Ω

50Ω

50Ω

50Ω

VSWR – Typical

<2:1

<2:1

<2:1

<2:1

Peak Gain [dBi] (Typical)

2 dBi

2 dBi

28 dBi

2 dBi

Polarization

Linear

Linear

RHCP

Linear

Accepted Power [W] (Max)

2 Watts

2 Watts

2 Watts

2 Watts
