www.roithner-laser.com

2

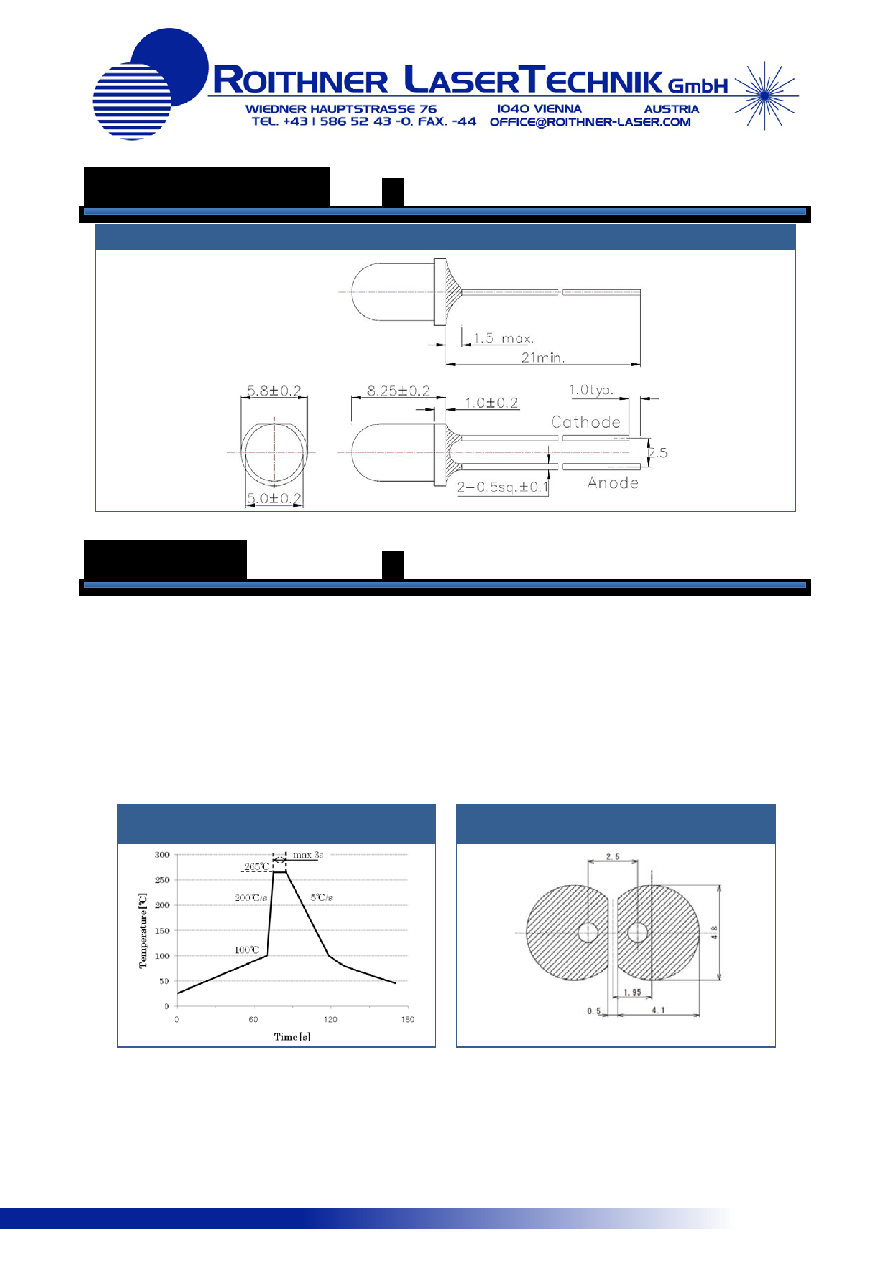

Outline Dimensions

All Dimensions in mm

Precautions

Soldering:

• Do avoid overheating of the LED

• Do avoid electrostatic discharge (ESD)

• Do avoid mechanical stress, shock, and vibration

• Do only use non-corrosive flux

• Do only cut the leads at room temperature with an ESD protected tool

• Do not solder closer than 3 mm from base of the header

• Do form leads prior to soldering

• Do not impose mechanical stress on the header when forming the leads

• Do not apply current to the LED until it has cooled down to room temperature after soldering

Soldering Profile

Recommended Soldering Patterns

Unit: mm

Above table specifies the maximum allowed duration and temperature during soldering. It is

strongly advised to perform soldering at the shortest time and lowest temperature possible.

LED600-03

5 mm
