NJG1550F-R1 Datasheet(PDF) 11 Page - New Japan Radio |
|
|
|||||||||||||||||||||||||||||
NJG1550F-R1 Datasheet(HTML) 11 Page - New Japan Radio |
|
|

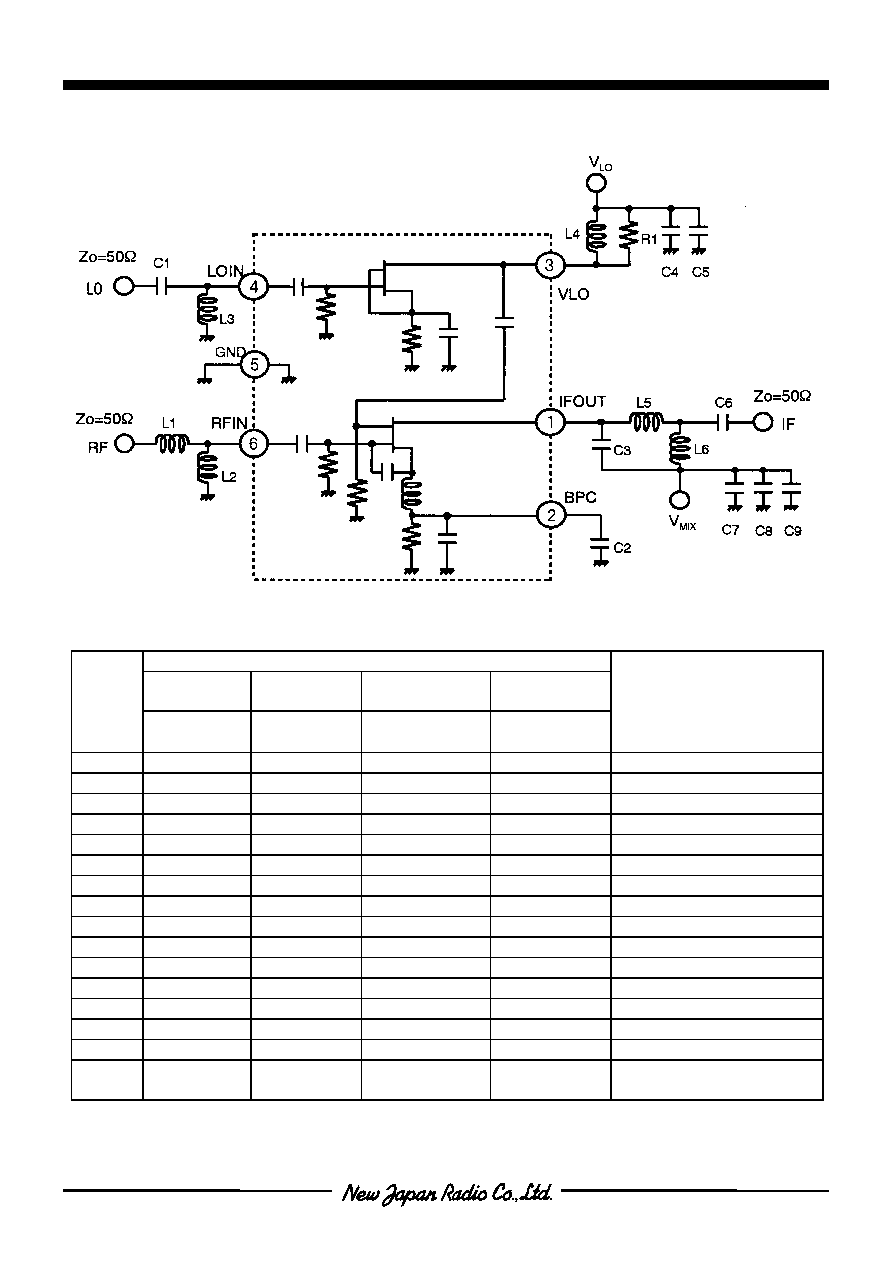

11 / 15 page  NJG1550F - 11 - nAPPLICATION CIRCUIT 1 (Application 1) 800MHz Band Lower LOCAL Upper LOCAL Upper LOCAL Upper LOCAL PART ID fLO=690MHz fIF=130MHz fLO=950MHz fIF=130MHz fLO=964.66MHz fIF=83.16MHz fLO=926.5MHz fIF=45MHz COMMENT L1 39nH 39nH 33nH 39nH TAIYO-YUDEN(HK1608) L2 27nH 27nH 22nH 22nH TAIYO-YUDEN(HK1608) L3 22nH 15nH 12nH 15nH TAIYO-YUDEN(HK1608) L4 27nH 22nH 22nH 18nH TAIYO-YUDEN(HK1608) L5 100nH 100nH 100nH 150nH TAIYO-YUDEN(HK1608) L6 56nH 56nH 47nH 120nH TAIYO-YUDEN(HK1608) C1 1pF 0.5pF 0.5pF 0.5pF MURATA(GRM39) C2 470pF 470pF 470pF 470pF MURATA(GRM39) C3 11pF 11pF 24pF 39pF MURATA(GRM39) C4 100pF 100pF 100pF 100pF MURATA(GRM39) C5 1000pF 1000pF 1000pF 1000pF MURATA(GRM39) C6 1000pF 1000pF 1000pF 47pF MURATA(GRM39) C7 10pF 10pF 10pF 10pF MURATA(GRM39) C8 100pF 100pF 100pF 100pF MURATA(GRM39) C9 1000pF 1000pF 0.1uF 1000pF MURATA(GRM39) R1 560 Ω 360 Ω 360 Ω 470 Ω TAMA Electronics(CRG16G) PARTS LIST 1 |
|
|
