NJG1552F
- 14 -

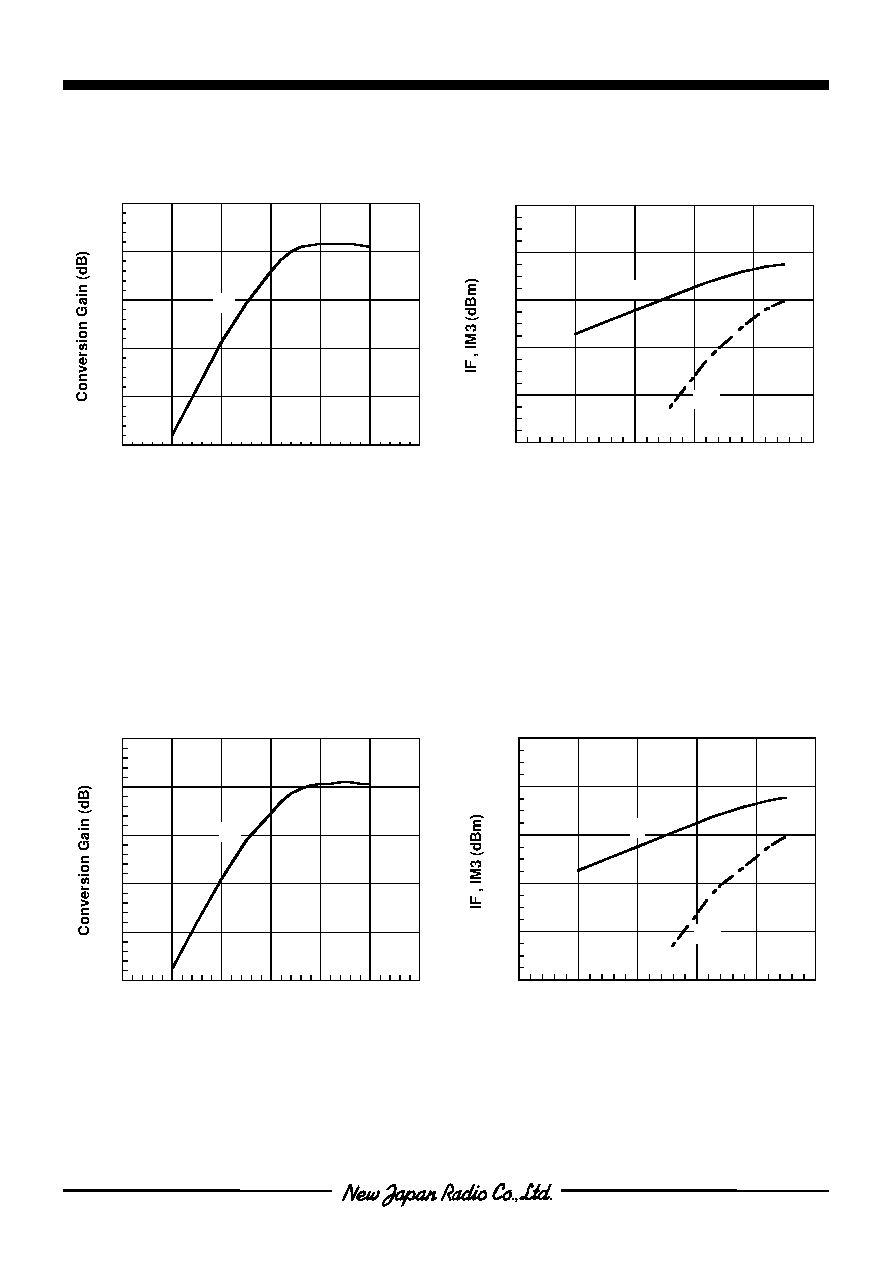

nTYPICAL CHARACTERISTICS (Application 2, f=1.9GHz, fLO=1749.62MHz)
nTYPICAL CHARACTERISTICS (Application 2, f=2.1GHz, fLO=1914.62MHz)
Condition
fIF=210.38MHz
fRF1=1960.0MHz
fRF2=1960.1MHz
fLO=1749.62MHz, PLO=-10dBm
VMIX=VLO=2.7V
Condition
fIF=210.38MHz
fRF=1960MHz, PRF=-30dBm
fLO=1749.62MHz
VMIX=VLO=2.7V
Condition
fIF=220.38MHz
fRF=2135MHz, PRF=-30dBm
fLO=1914.62MHz
VMIX=VLO=2.7V
Condition
fIF=220.38MHz
fRF1=2135.0MHz
fRF2=2135.1MHz
fLO=1914.62MHz, PLO=-10dBm
VMIX=VLO=2.7V
-15
-10
-5
0
5
10
-50
-40
-30
-20
-10
0
10
Conversion Gain vs. LO Power
LO Power (dBm)
Gc
-80
-60
-40
-20
0
20
-50
-40
-30
-20
-10
0
IF , IM3 vs. RF Power
RF Power (dBm)
IF
IM3
-15
-10
-5
0
5
10
-50
-40
-30
-20
-10
0
10
Conversion Gain vs. LO Power
LO Power (dBm)
Gc
-80
-60
-40
-20
0
20
-50
-40
-30
-20
-10
0
IF , IM3 vs. RF Power
RF Power (dBm)
IF
IM3
