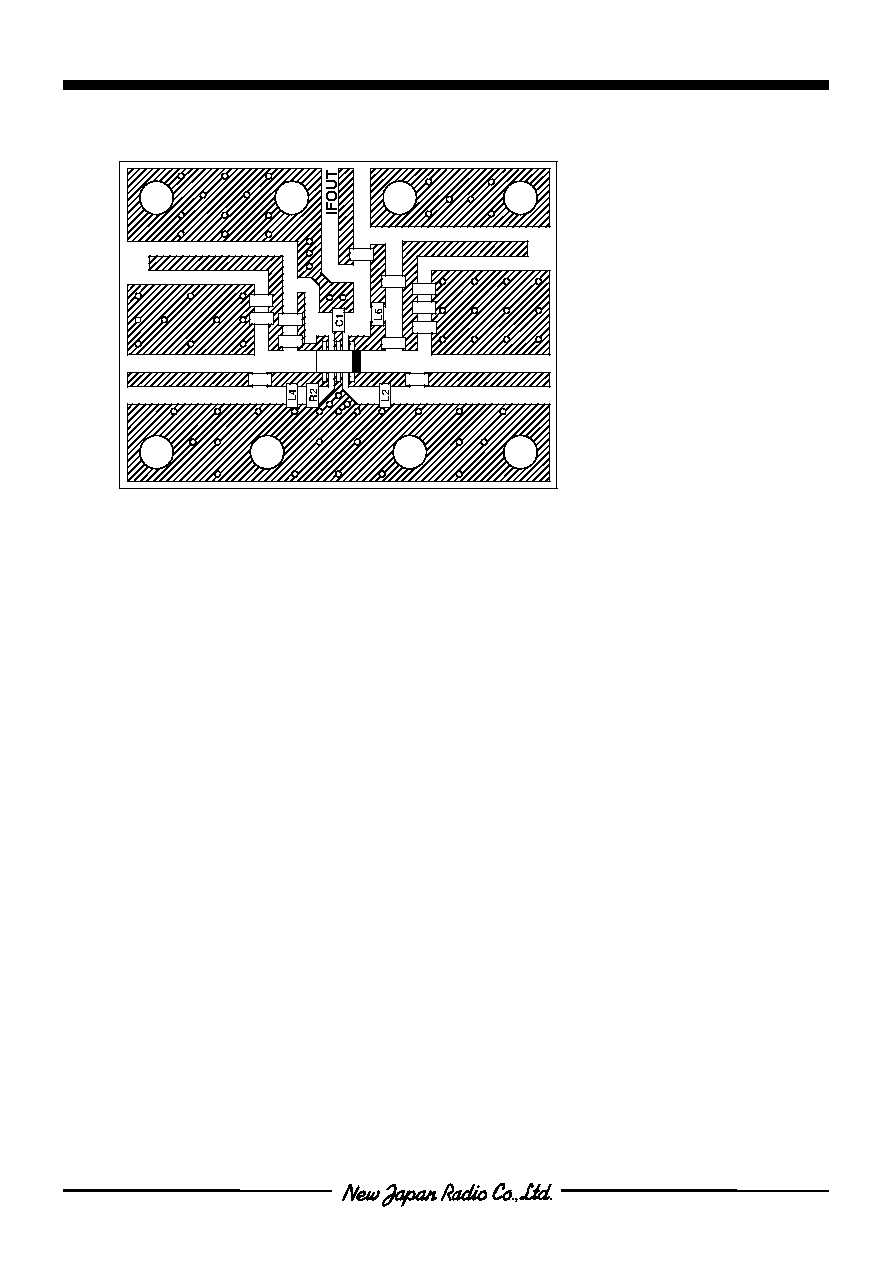

7 / 9 page ![]() NJG1553BF - 7 - nRECOMMENDED PCB DESIGN PRECAUTIONS [1] Please place a inductor L1 at about 3.5mm distance from RFIN terminal (Pin #6). [2] Please place a inductor L3 at about 3.5mm distance from LOIN terminal (Pin #4). [3] Please place a capacitor C1 close to by-pass capacitor terminal (Pin #2). [4] Please place capacitors C6, C7, C8 close to C2. [5] Please place capacitors C3, C4 close to R1 and L5. C4 C3 R1 L5 C5 C8 C7 C6 L7 C2 L3 L1 LOIN VLO RFIN VMIX NJG1553BF PCB: FR-4 t=0.5mm Microstrip Line Width=1mm PCB Size: 22.5x30.0mm |
|
|
