NJG1553BF
- 6 -

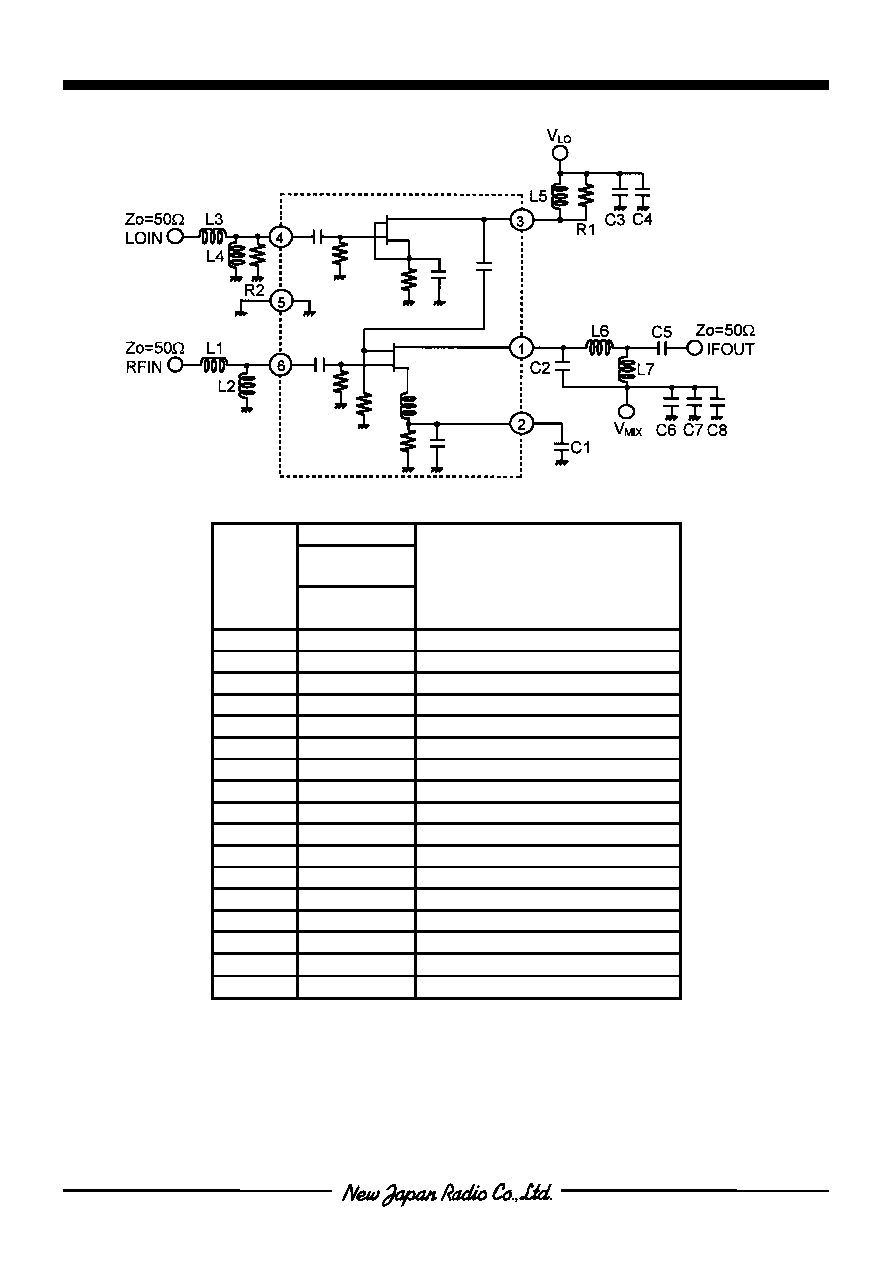

nAPPLICATION CIRCUIT
Table: The parts used in the circuit above
PCS BAND
Upper
LOCAL
PART ID
fLO=2090MHz
fIF=130MHz
Remarks
L1
8.2nH
TAIYO-YUDEN(HK1608)
L2
8.2nH
TAIYO-YUDEN(HK1608)
L3
3.9nH
TAIYO-YUDEN(HK1608)
L4
10nH
TAIYO-YUDEN(HK1608)
L5
4.7nH
TAIYO-YUDEN(HK1608)
L6
100nH
TAIYO-YUDEN(HK1608)
L7
56nH
TAIYO-YUDEN(HK1608)
C1
1000pF
MURATA(GRM39)
C2
10pF
MURATA(GRM39)
C3
10pF
MURATA(GRM39)
C4
100pF
MURATA(GRM39)
C5
1000pF
MURATA(GRM39)
C6
10pF
MURATA(GRM39)
C7
100pF
MURATA(GRM39)
C8
1000pF
MURATA(GRM39)
R1
180
Ω
1608 Size
R2
82
Ω
1608 Size
