+3.0V to +5.5V, 1.25Gbps/2.5Gbps
Limiting Amplifiers
_______________________________________________________________________________________
9

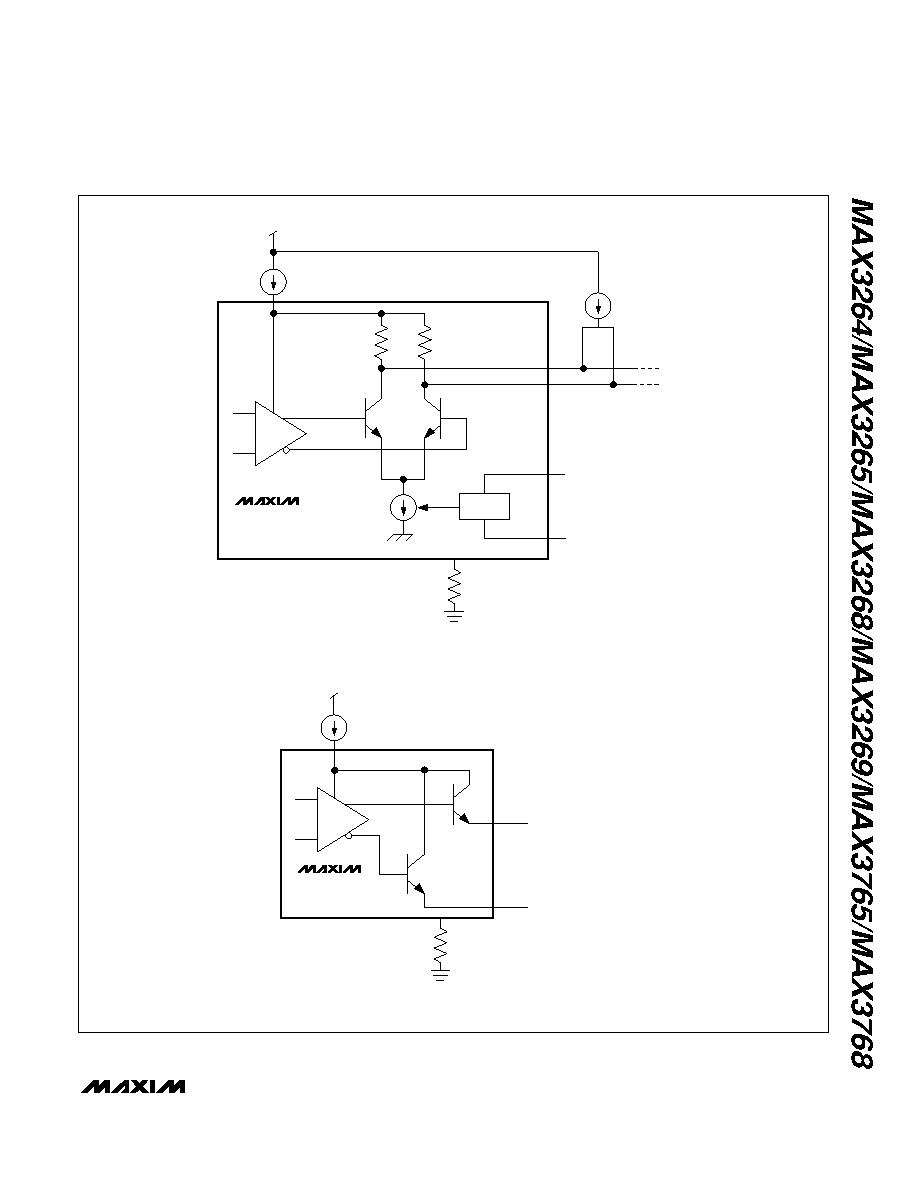

(a) CML SUPPLY CURRENT (ICC)
VCC
ICC
ICC
VCC
OUT+
OPEN
OPEN
OUT-
IOUT
100
Ω
RTH
2.5k
Ω
100
Ω
CONTROL
SQUELCH
LEVEL
MAX3264CUE: OPEN
MAX3265CUE: OPEN
MAX3265CUB: GND (INTERNAL)
MAX3765CUB: VCC (INTERNAL)
(b) PECL SUPPLY CURRENT (ICC)
RTH
2.5k
Ω
MAX3264
MAX3265
MAX3765
MAX3268
MAX3269
MAX3768
MAX3264CUE: OPEN
MAX3265CUE: OPEN
MAX3265CUB: GND (INTERNAL)
MAX3765CUB: GND (INTERNAL)
Figure 2. Power-Supply Current Measurement
