5V, Low-Power, Parallel-Input,

Voltage-Output, 10-Bit DAC

______________________________________________________________________________________

13

A0 = A1 = 0

A0 = A1 = 1

DAC UPDATE

NBH

NBL & NBM

CS

WR

LDAC = 0 (DAC LATCH IS TRANSPARENT)

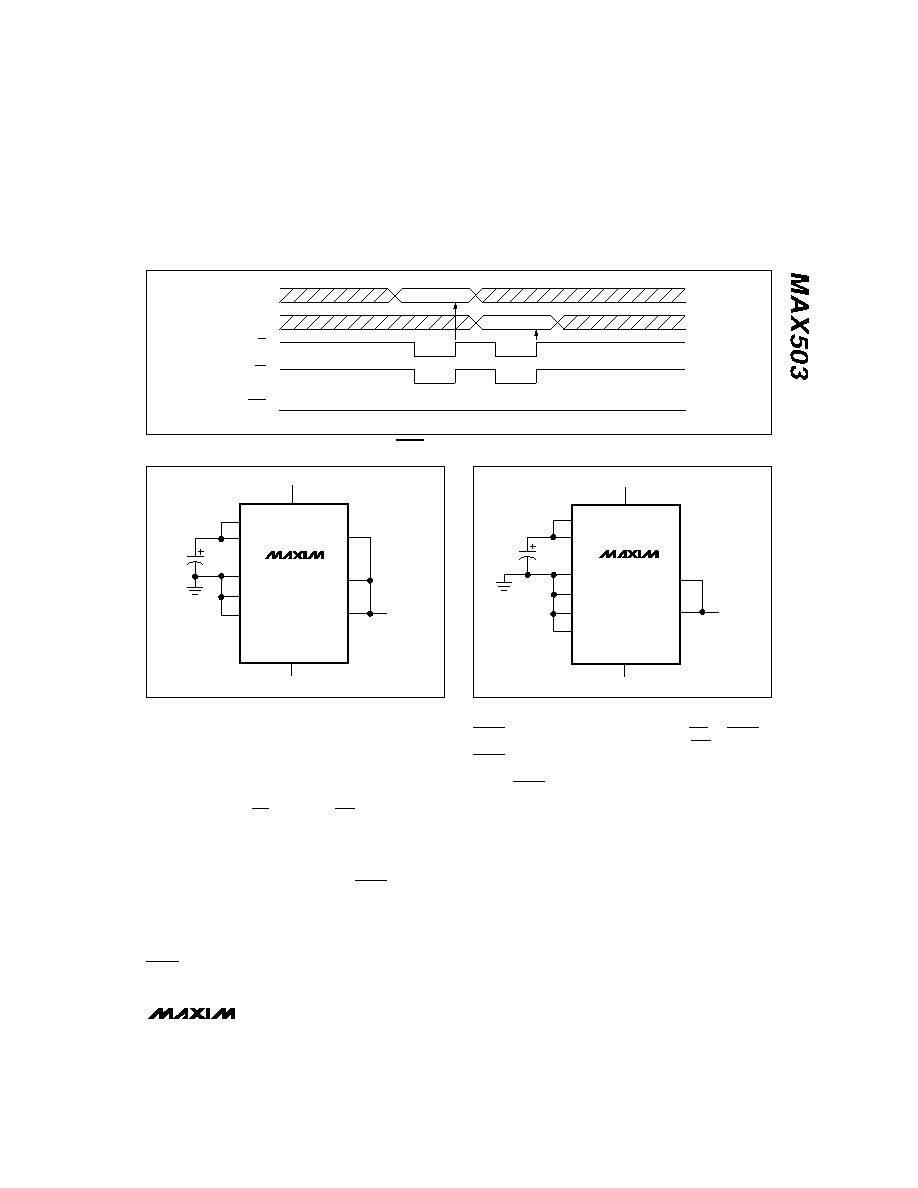

Figure 8b. 8-Bit and 16-Bit µP Timing Sequence with LDAC = 0

Figure 5 shows the circuit configuration for a 4-bit µP

application. Figure 6 shows the corresponding timing

sequence. The 4 low bits (S0, S1, D0, D1) are connect-

ed in parallel to the other 4 bits (D2–D5) and then to the

µP bus. Address lines A0 and A1 enable the input data

latches for the high, middle, or low data nibbles. The µP

sends chip select (CS) and write (WR) signals to latch

in each of three nibbles in three cycles when the data is

valid.

Figure 7 shows a typical interface to an 8-bit or a 16-bit

µP. Connect 8 data bits from the data bus to pins S0,

S1, and D0–D5 on the MAX503. With LDAC held high,

the user can load NBH or NBL + NBM in any order.

Figure 8a shows the corresponding timing sequence.

For fastest throughput, use Figure 8b’s sequence.

Address lines A0 and A1 are tied together and the DAC

is loaded in 2 cycles as 8 + 4. In this scheme, with

LDAC held low, the DAC latch is transparent. Always

load NBL and NBM first, followed by NBH.

LDAC is asynchronous with respect to WR. If LDAC is

brought low before or at the same time WR goes high,

LDAC must remain low for at least 50ns to ensure the

correct data is latched. Data is latched into DAC regis-

ters on LDAC’s rising edge.

Unipolar Configuration

output range by connecting ROFS and RFB to VOUT

(Figure 9). The converter operates from either single or

dual supplies in this configuration. See Table 3 for the

DAC-latch contents (input) vs. the analog VOUT (output).

necting ROFS to AGND and RFB to VOUT (Figure 10).

Table 4 shows the DAC-latch contents vs. VOUT. The

MAX503 operates from either single or dual supplies in

33µF

REFIN

REFOUT

AGND

DGND

REFGND

ROFS

RFB

VOUT

0V TO -5V

+5V

G = 1

MAX503

33µF

REFIN

REFOUT

AGND

DGND

REFGND

ROFS

RFB

VOUT

0V TO -5V

+5V

G = 2

MAX503

Figure 9. Unipolar Configuration (0V to +2.048V Output)

Figure 10. Unipolar Configuration (0V to +4.096V Output)
