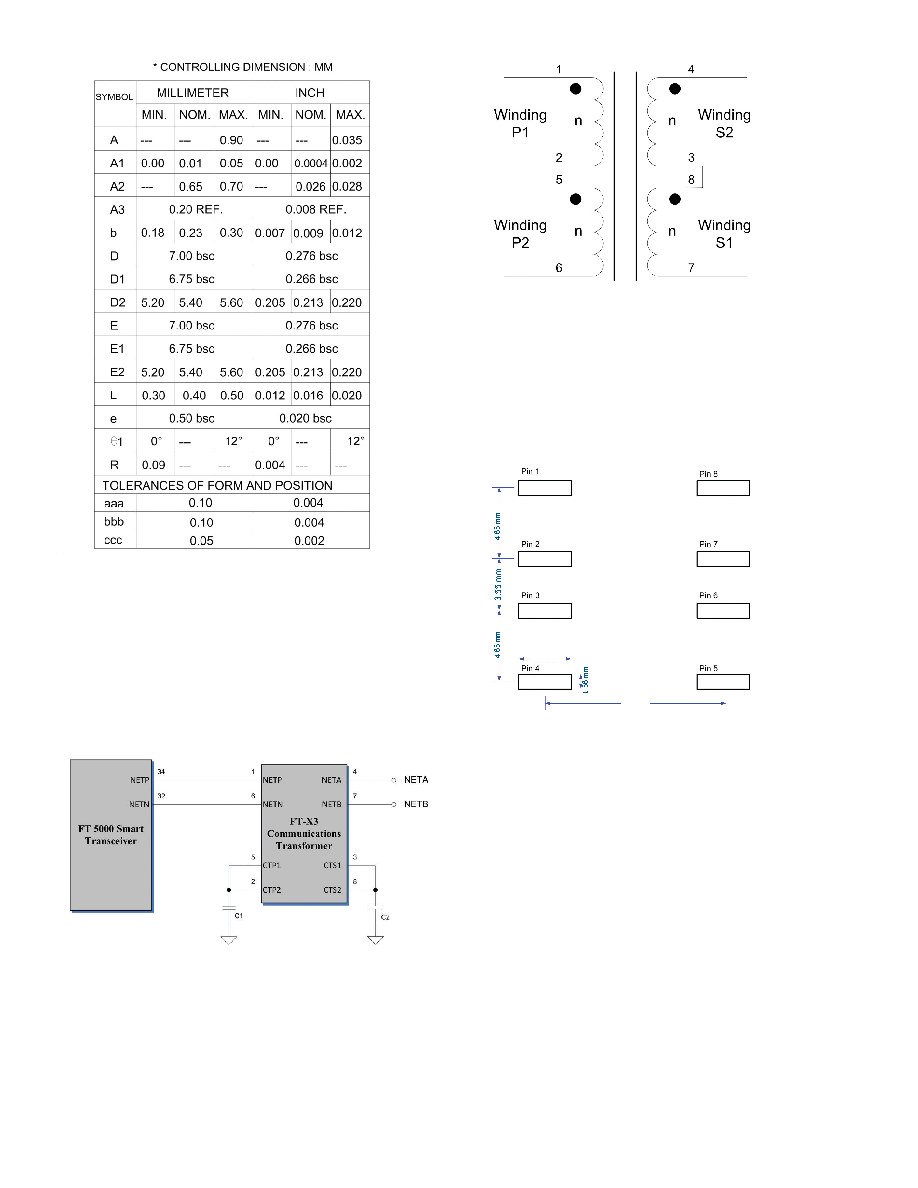

4 / 6 page  FT-X3 Communications Transformer Pin Descriptions Figure 4: FT-X3 Communications Transformer Pinout Diagram Figure 4: FT-X3 Communications Transformer Electrical Connection Schematic (winding connections are made on the PCB) Recommended FT-X3 Communications Transformer Pad Layout The FT-X3 Communications Transformer is rotationally symmetric. Hence, the transformer package does not have a marking for Pin 1. Figure 5: FT-X3 Transformer SMT Layout Pad Pattern Notes 1. All dimensions are in millimeters. 2. Dimensions and tolerances conform to ASME Y14.5M.-1994. 3. Package warpage max. 0.08 mm. 4. Package corners unless otherwise specified are R0.175±0.025 mm. Recommendation: Add vias to the ends of each pin pad connection (just outside of the SMT pad rectangles) to provide additional mechanical support for the transformer. 4.27 mm 13.5 mm |
|
|
