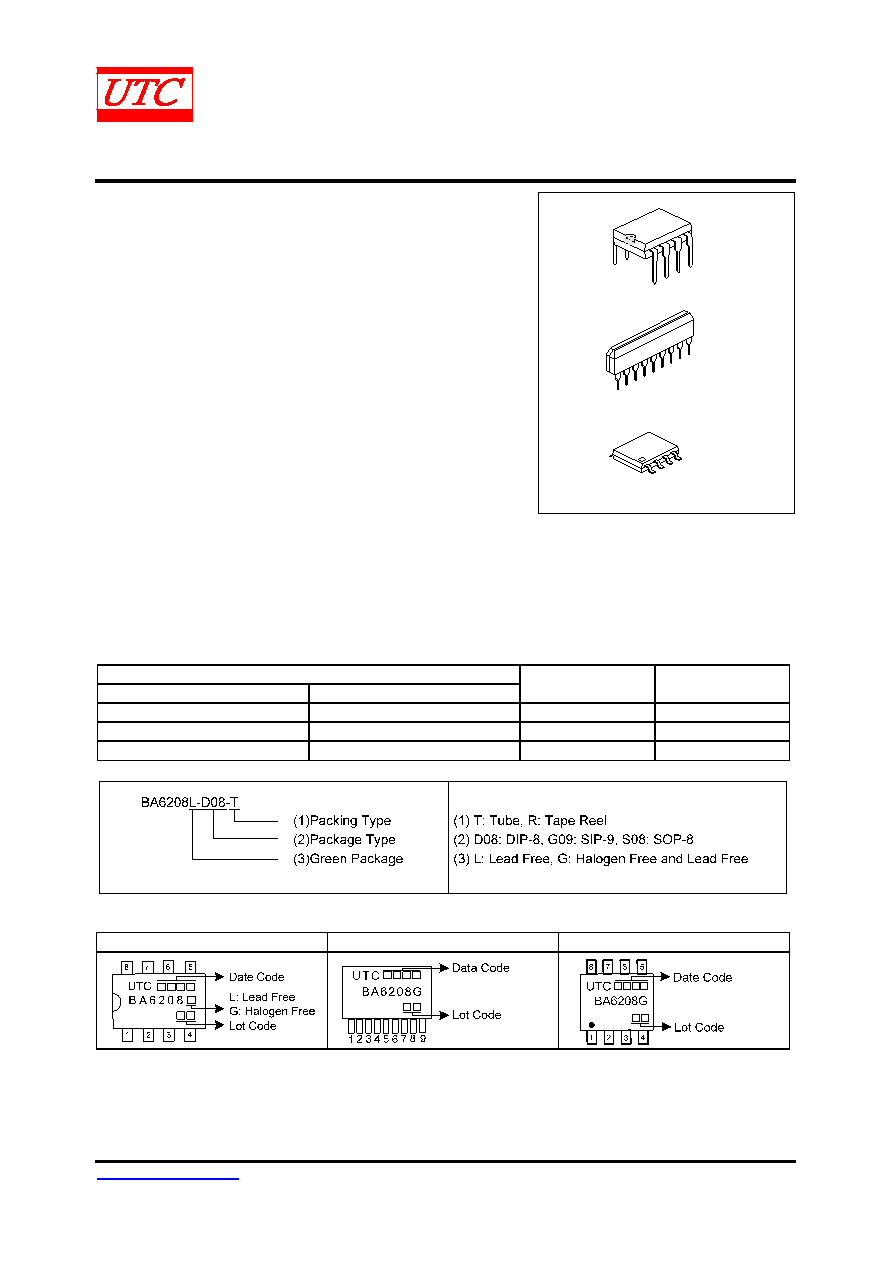

UNISONIC TECHNOLOGIES CO., LTD

BA6208

LINEAR INTEGRATED CIRCUIT

www.unisonic.com.tw

1 of 4

Copyright © 2015 Unisonic Technologies Co., Ltd

QW-R109-004.E

REVERSIBLE MOTOR DRIVER



DESCRIPTION

The UTC BA6208 is designed for driving reversible motor use, it

contain a logic section to controls forward and reverse rotations as

well as forced stop, and an output power section is able to supply an

output current of up to 100mA (typical) according to the logic control.

The IC allow control of reversible motors in cassette players and

other electrical equipment by using TTL-level logic signals.



FEATURES

* Recommended operating supply voltage range from 4.5V to15.0V.

* Built-in motor driving power transistors(typ.100mA).

* Brake is applied when stopping the motor (when Ain and Bin are

both HIGH level).

* Very low standby circuit current(when Ain and Bin are both LOW

level.

* Built-in diode to absorb surge currents.

* Direct control with the TTL logic.

SIP-9

SOP-8

DIP-8



ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

Package

Packing

BA6208L-D08-T

BA6208G-D08-T

DIP-8

Tube

-

BA6208G-G09-T

SIP-9

Tube

-

BA6208G-S08-R

SOP-8

Tape Reel



MARKING

DIP-8

SIP-9

SOP-8
