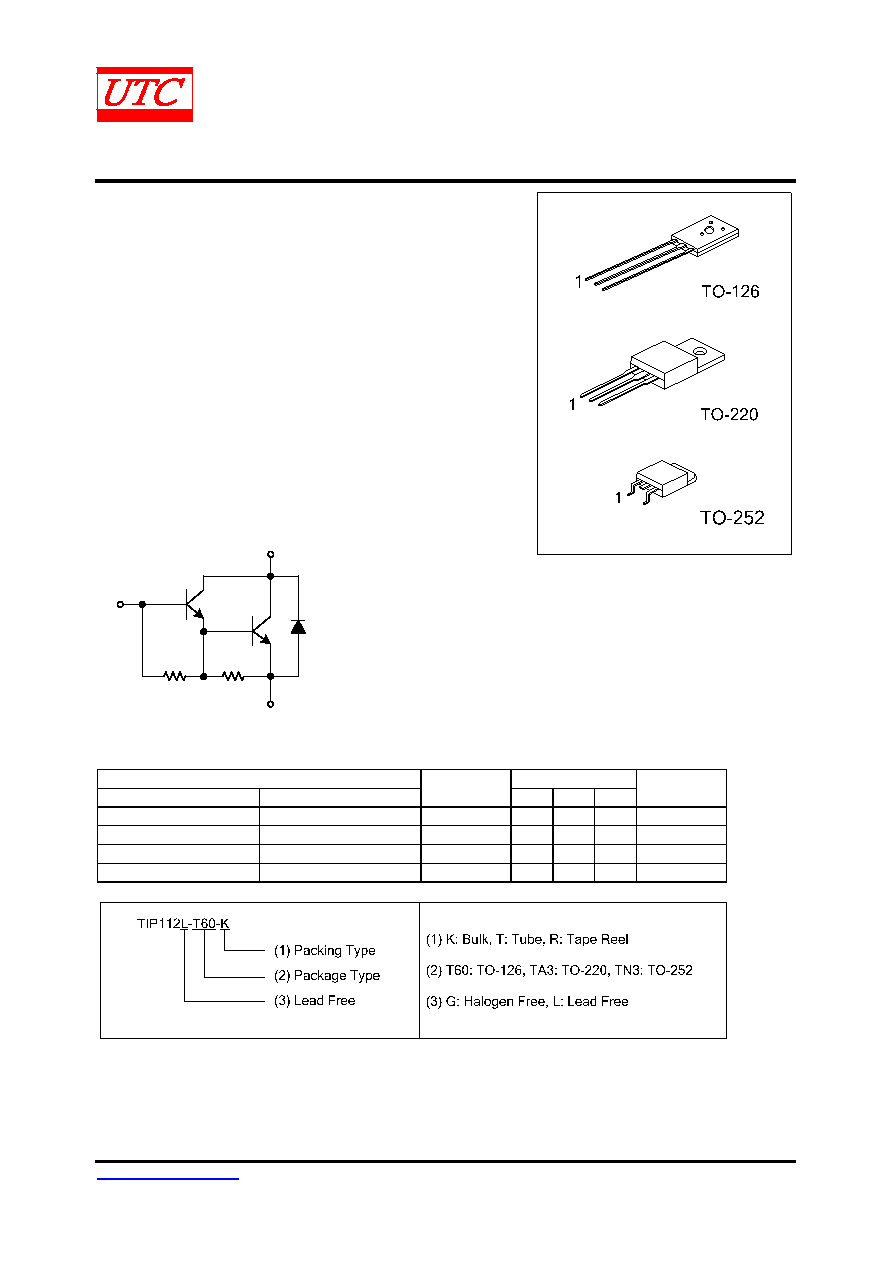

UNISONIC TECHNOLOGIES CO., LTD

TIP112

NPN SILICON TRANSISTOR

www.unisonic.com.tw

1 of 4

Copyright © 2012 Unisonic Technologies Co., Ltd

QW-R203-022.D

NPN EPITAXIAL SILICON

DARLINGTON TRANSISTOR

DESCRIPTION

The UTC TIP112 is designed for such applications as: DC/DC

converters supply line switching, battery charger, LCD backlighting,

peripheral drivers, Driver in low supply voltage applications (e.g.

lamps and LEDs) and inductive load driver (e.g. relays, buzzers and

motors).

FEATURES

* Low collector-emitter saturation voltage

R1

R2

E

B

C

ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

3

TIP112L-T60-K

TIP112G-T60-K

TO-126

E

C

B

Bulk

TIP112L-TA3-T

TIP112G-TA3-T

TO-220

B

C

E

Tube

TIP112L-TN3-R

TIP112G-TN3-R

TO-252

B

C

E

Tape Reel

TIP112L-TN3-T

TIP112G-TN3-T

TO-252

B

C

E

Tube
