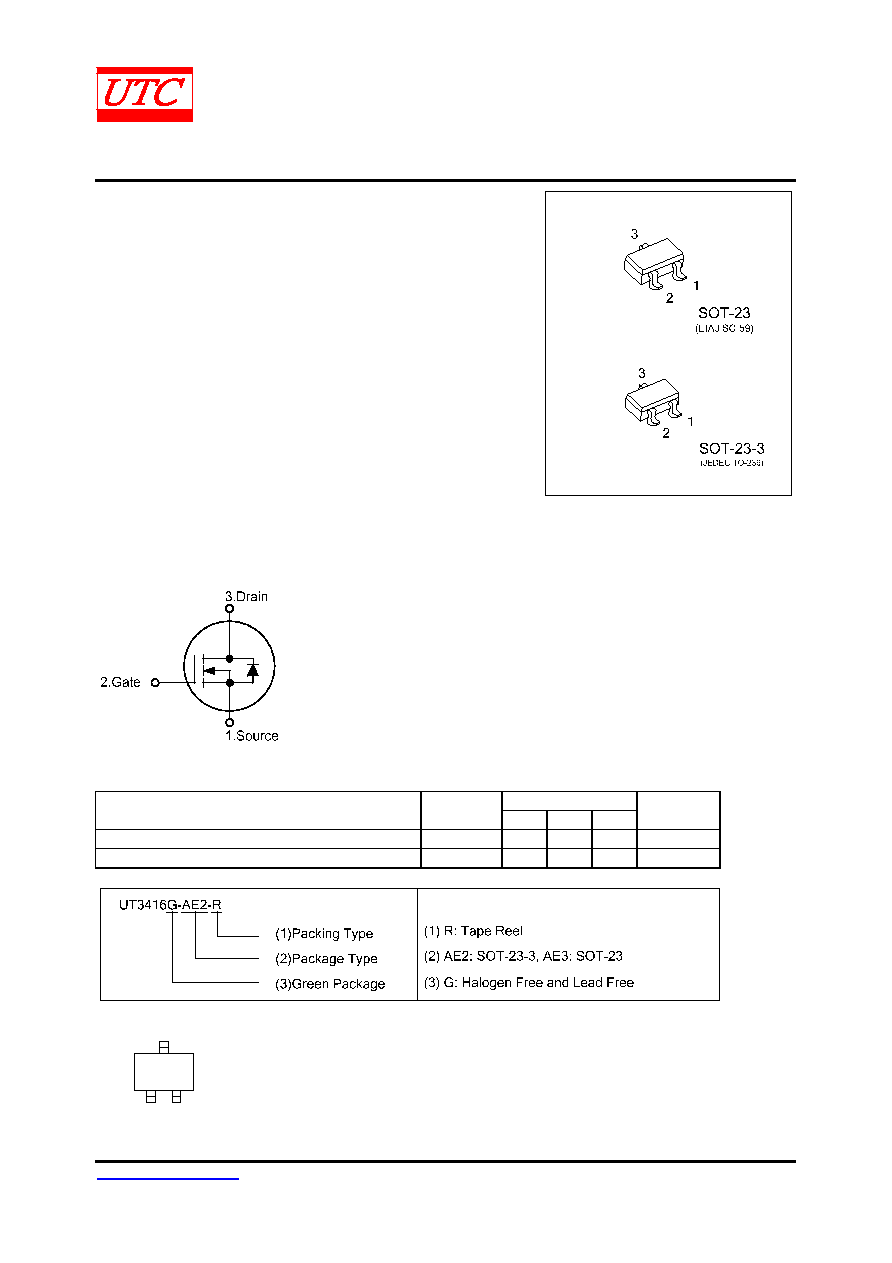

UNISONIC TECHNOLOGIES CO., LTD
UT3416
Power MOSFET
www.unisonic.com.tw
1 of 3
Copyright © 2014 Unisonic Technologies Co., Ltd
QW-R502-325.E
N-CHANNEL ENHANCEMENT
MODE FIELD EFFECT
TRANSISTOR
DESCRIPTION
The UTC UT3416 is advanced n-channel enhancement
MOSFET which can provide the designer with the best combination
of excellent RDS (ON), low gate charge and low gate voltages as low
as 1.8V.When it is used as a load switch or in PWM application, the
UTC UT3416 can be considered as an ideal.
FEATURES
* VDS =20 V
* ID =6.5 A
* RDS(ON)<22 mΩ @ VGS=4.5V, ID =6.5A
SYMBOL
ORDERING INFORMATION
Ordering Number
Package
Pin Assignment
Packing
1
2
3
UT3416G-AE2-R
SOT-23-3
S
G
D
Tape Reel
UT3416G-AE3-R
SOT-23
S
G
D
Tape Reel
MARKING
34SG
