ADL5246
Data Sheet
Rev. A | Page 26 of 36
28
27
26
25
21
22
23
24
RFOUT3
RFIN3
VCC2
C1
2.7pF
L6
1nH
GND
ADL5246
λ2
λ3
C23
100pF
R1
0Ω
GND
GND
GND
VPOS2
λ1
C3
2pF
C21
100pF
L4
100nH
NIC

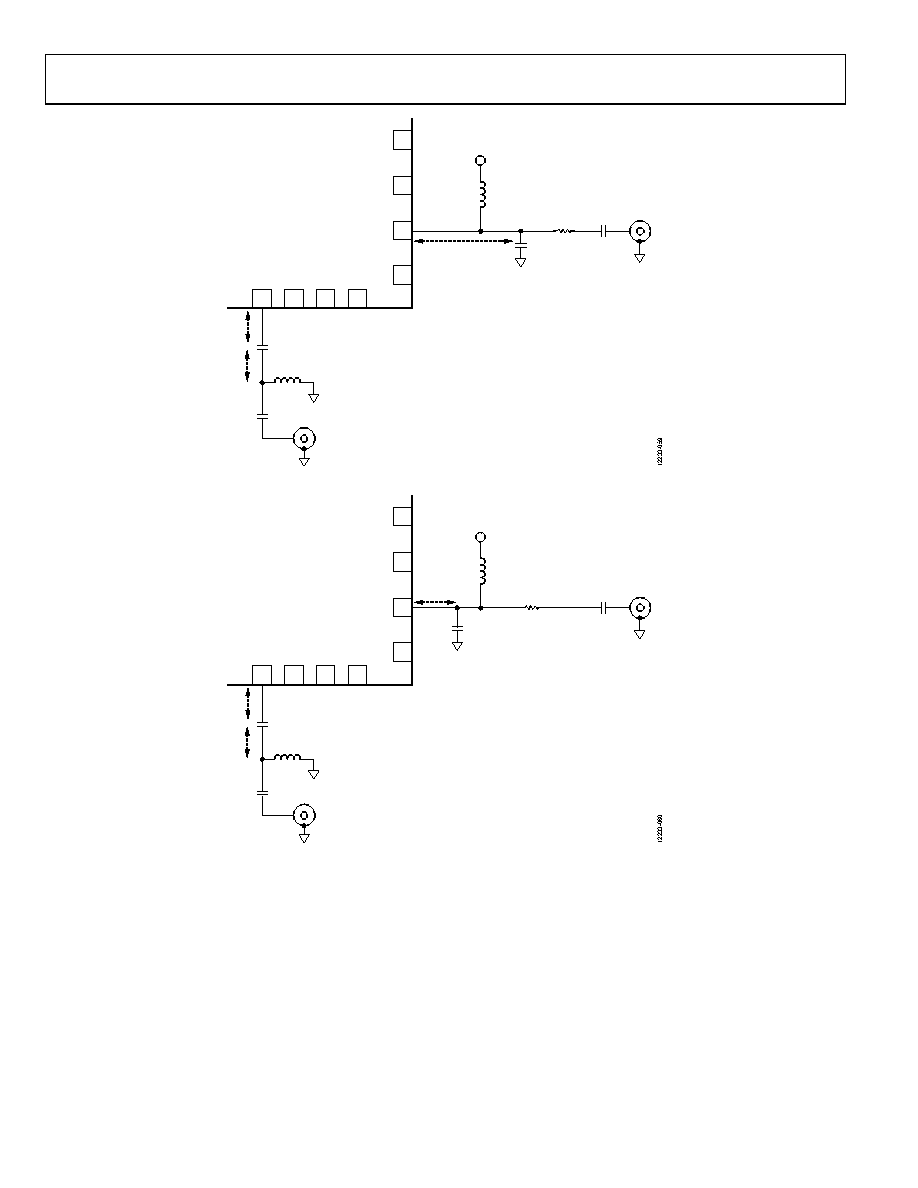

Figure 77. AMP3 Matching Circuit at 1.9 GHz
28
27
26
25
21
22
23
24
RFOUT3
RFIN3
VCC2
C1
2.7pF
L6
1nH
GND
ADL5246
λ2
λ3
C23
100pF
R1
0Ω
GND
GND
GND
VPOS2
λ1
C3
1.5pF
C21
100pF
L4
100nH
NIC
Figure 78. AMP3 Matching Circuit at 2.2 GHz
