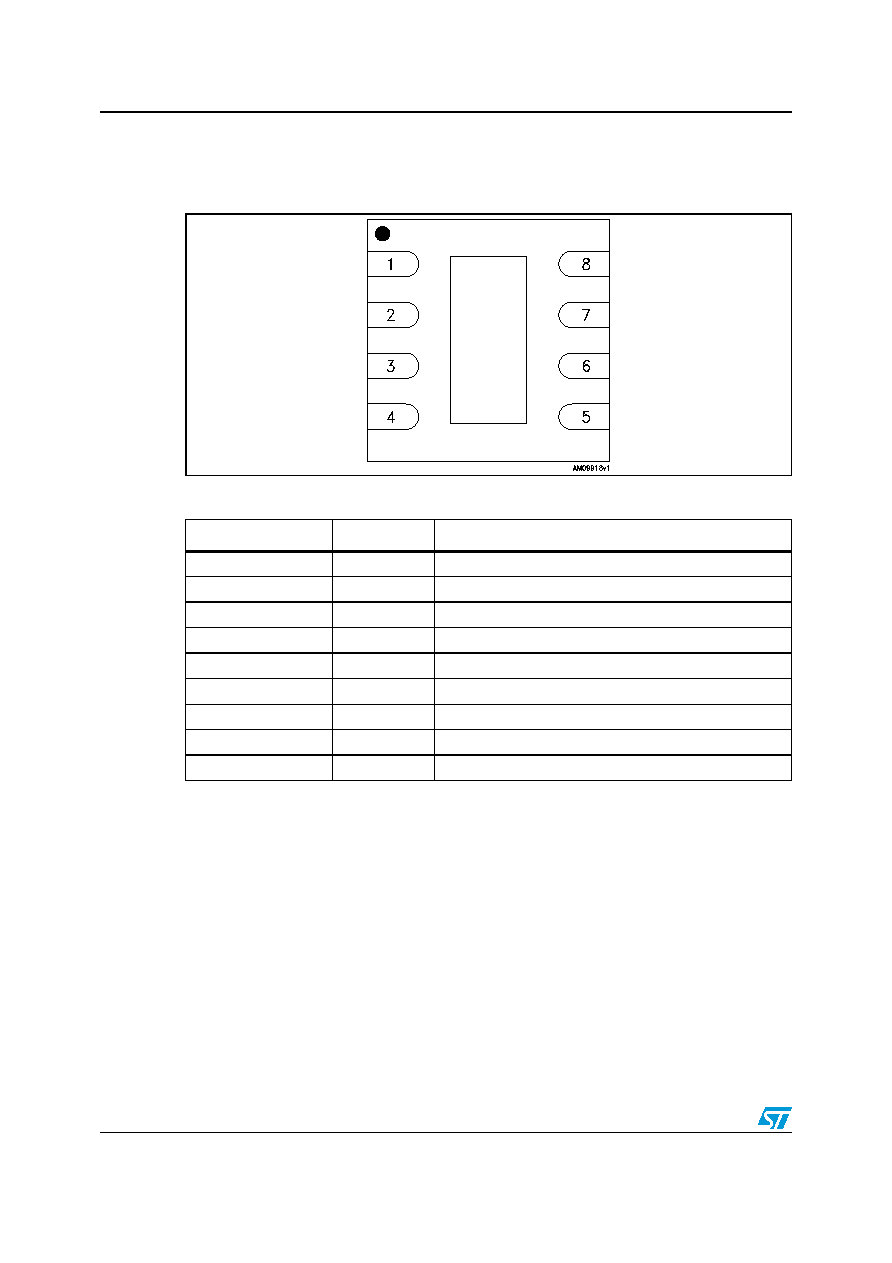

Pin configuration
STLD41
4/19
Doc ID 022283 Rev 5
2
Pin configuration
Figure 2.
Pin connections (top view)
Table 2.
Pin description
Pin n°
Symbol
Description
1
GND
Ground
2
FB
Feedback connection
3
GND
Analog ground
4
PGND
Power ground
5
VLX
Inductor connection
6
EN
Enable input
7
VIN
Supply voltage
8
PWM_IN
PWM input for the output current dimming
Exposed pad
PGND
Power ground
