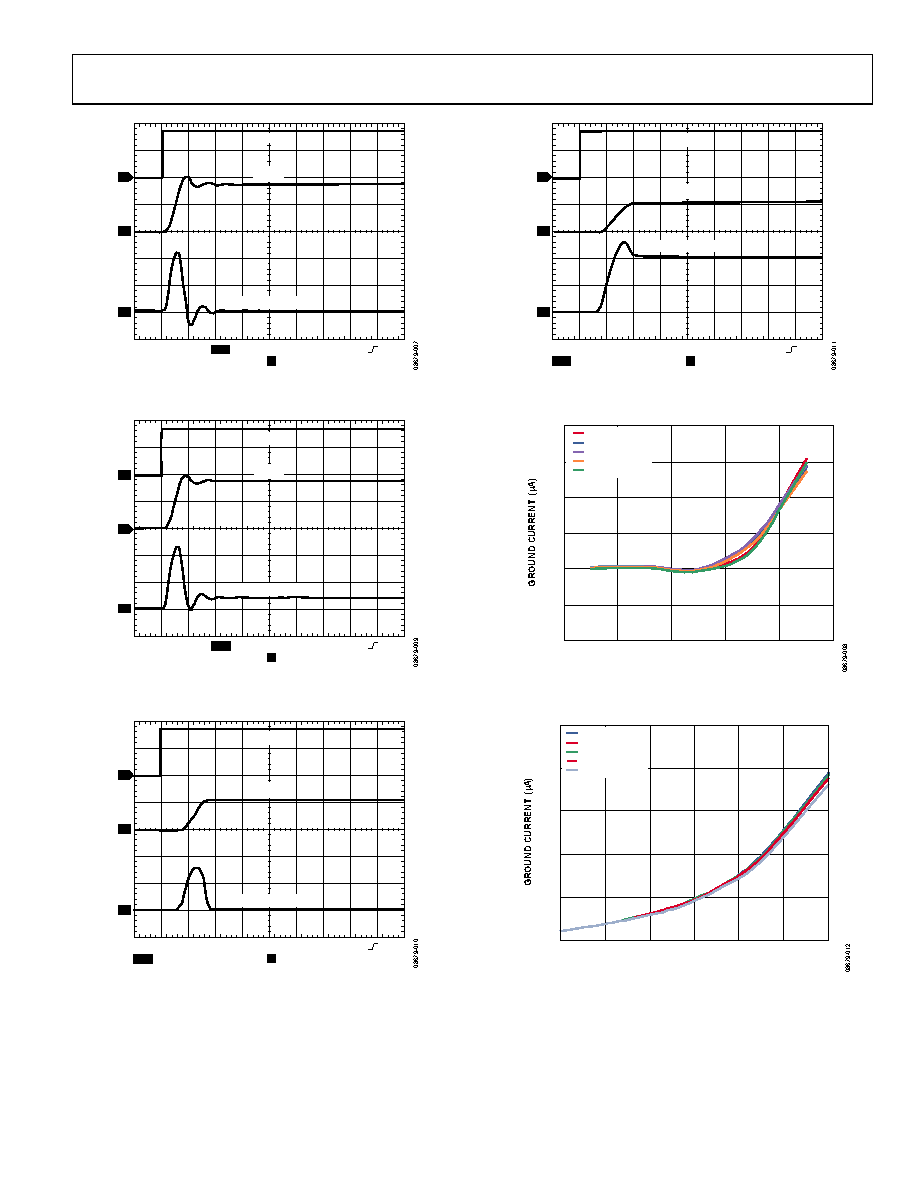

7 / 12 page ![]() Data Sheet ADP195 Rev. C | Page 7 of 12 CH1 2V CH2 2V M4µs A CH1 2.32V 2 3 1 T 10% BW CH3 1A Ω BW VOUT LOAD CURRENT BW VEN Figure 11. Typical Rise Time and Inrush Current, VIN = 3.6 V, No Load CH1 2V CH2 2V M4µs A CH1 2.32V 1 3 2 T 10% BW BW CH3 1A Ω BW VOUT LOAD CURRENT VEN Figure 12. Typical Rise Time and Inrush Current, VIN = 3.6 V, Load = 200 mA CH1 2V CH2 1V M10µs A CH1 2.32V 2 3 1 T 10% VEN BW CH3 100mA Ω BW VOUT LOAD CURRENT BW Figure 13. Typical Rise Time and Inrush Current, VIN = 1.2 V, No Load CH1 2V CH2 1V M10µs A CH1 2.32V 2 3 1 T 10% VEN BW CH3 100mA Ω BW VOUT LOAD CURRENT BW Figure 14. Typical Rise Time and Inrush Current, VIN = 1.2 V, Load = 200 mA 0 1 2 3 4 5 6 –40 0 25 85 125 TEMPERATURE (°C) IOUT = 10mA IOUT = 100mA IOUT = 200mA IOUT = 300mA IOUT = 500mA Figure 15. Ground Current vs. Temperature 0 4 8 12 16 20 1.2 1.6 2.0 2.4 2.8 3.2 3.6 VIN (V) IOUT = 10mA IOUT = 100mA IOUT = 200mA IOUT = 500mA IOUT = 1000mA Figure 16. Ground Current vs. Input Voltage (VIN) |
|
|
